BS70-2plus 11in

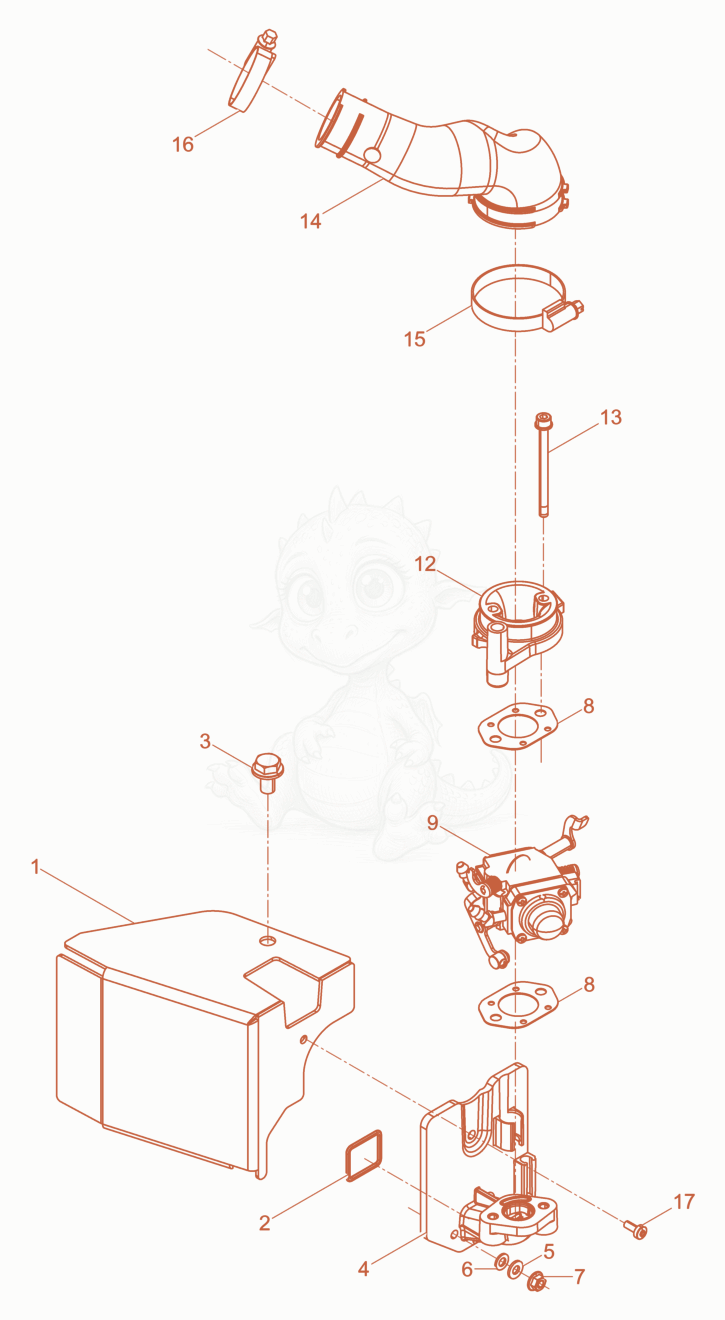

BS70-2PLUS11IN Carburetor cpl. Diagram
- Air duct plate - 5100059332×1
- O-ring 26x2 - 5100002961×1
- Screw M8x16 HHCS,10.9,SEM,w/PC80 Patch - 5100027072×1
- carburetor flange - 5100048930×1
- Washer - 5000103212×2
- WASHER-LOCK,5 - 5000103211×2
- NUT-M5,HX FLG,CL 10,MECH ZP - 5000183750×2
- GASKET-CARBURETOR - 5000095774×2
- Carburetor Walbro - 5100061747×1
- Adaptor - 5100032275×1
- 135100075649Not stockedScrew M 5x 65×2
- tube-air - 5100032179×1
- CLAMP,32/50 - 5000078844×1
- Clamp - 5100033186×1
- Screw - 5000222072×1
