CRT48-31V-ES RIDE-ON TROWEL

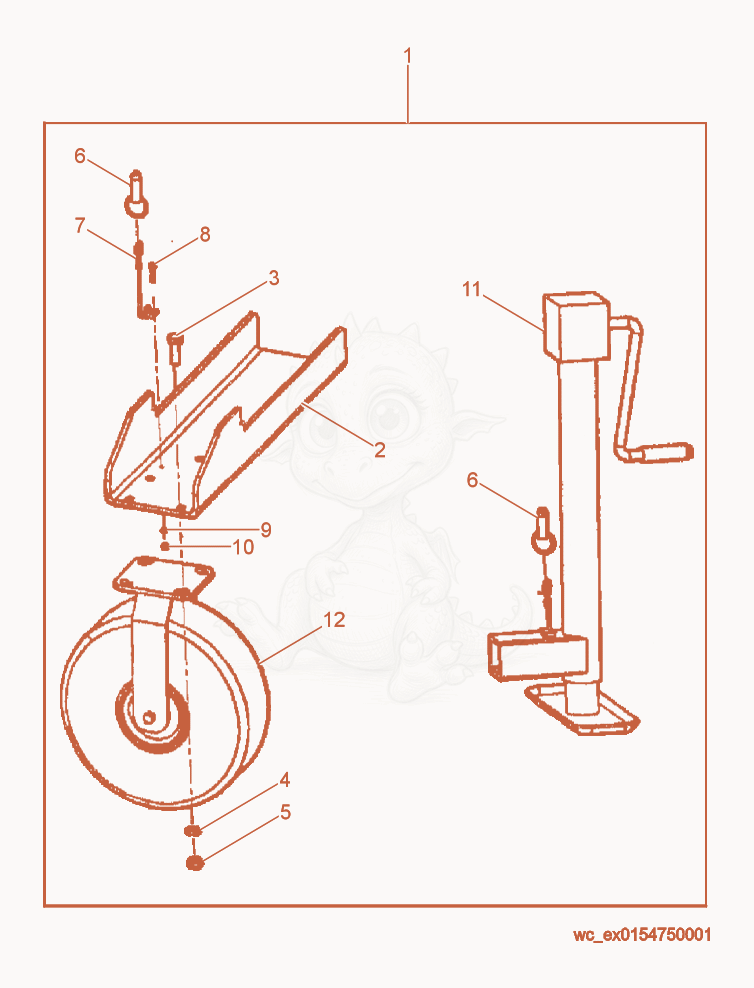

CRT48-31V-ES Wheel Kit Diagram

Exploded parts diagram of the Wheel Kit of a Wacker Neuson CRT48-31V-ES, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000154750Not stocked
    Wheel Kit×1
  • 25000154480
    $163.75
    BRACKET-WHEEL ARM - 5000154480×4
  • 35000011439
    $0.23
    SCREW M10 X 30 HX.HD - 5000011439×16
  • 45000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×16
  • 55000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×16
  • 65000154811
    $14.11
    PIN-HITCH 1/2 X 1,COTTERLESS - 5000154811×6
  • 75000154812
    $16.93
    CABLE-LANYARD 12 W/TAB - 5000154812×4
  • 85000011486
    $0.19
    SCREW M4 X 20 HX.HD. - 5000011486×4
  • 95000010628
    $0.02
    WASHER A4.3 FLAT - 5000010628×4
  • 105000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×4
  • 115000154393
    $222.33
    JACK-SCREW - 5000154393×2
  • 125000150001
    $201.29
    WHEEL-10 ,RIGID - 5000150001×2
  • 125000150002
    $211.53
    WHEEL-10 ,SWIVEL - 5000150002×2
