CRT48-31V RIDE-ON TROWEL

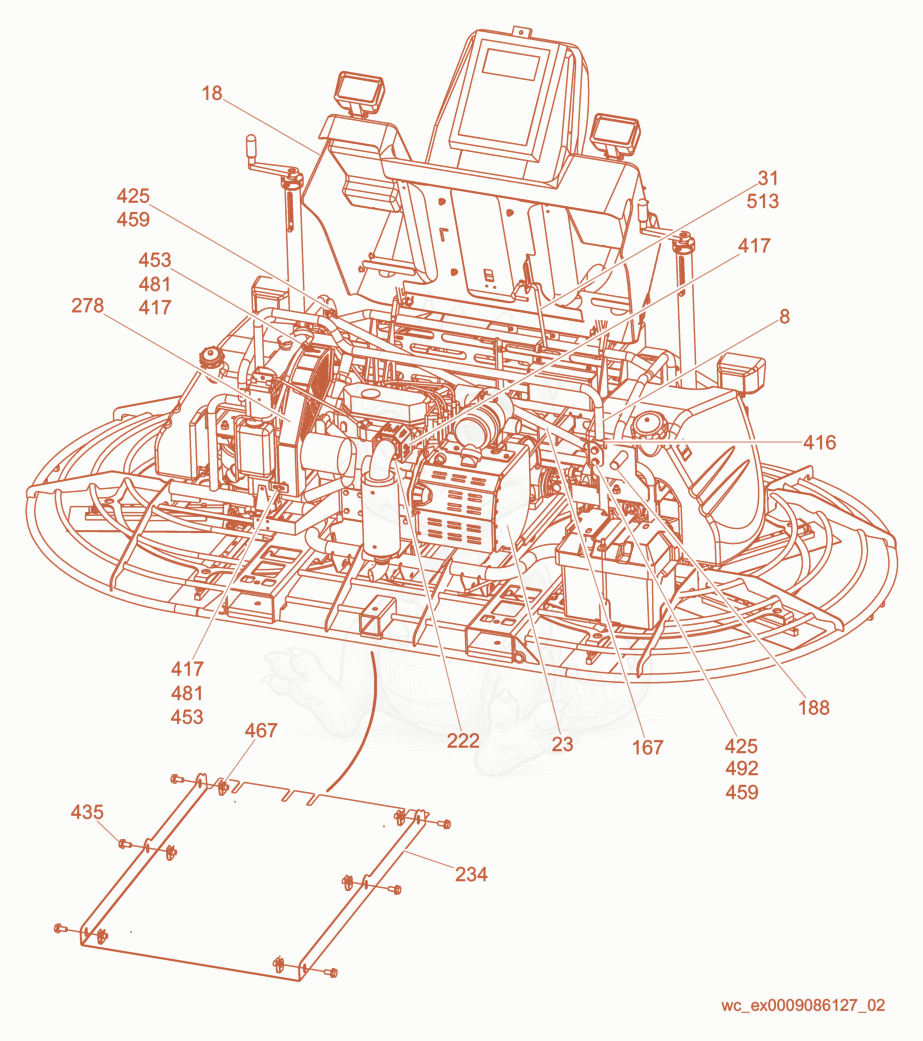

CRT48-31V-H Machine cpl./Back View/Beltguard Diagram

Exploded parts diagram of the Machine cpl./Back View/Beltguard of a Wacker Neuson CRT48-31V-H, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 85000153472
    $155.85
    TUBE-SEAT SUPPORT ASSEMBLYP-5000112007 - 5000153472×1
  • 185000150080
    $826.67
    HOUSING-SEAT PEDESTAL ASSEMBLY - 5000150080×1
  • 235000152808
    $236.59
    BELTGUARD-CRT,31HP P-5000176420 - 5000152808×1
  • 315000153470
    $59.90
    ROD-SEAT PROP P-5000112007 - 5000153470×1
  • 1675000164285Not stocked
    Frame guard×1
  • 1885000158806
    $1.31
    CAP-PROTECTIVE 1 DIA. X 3 ,BLK - 5000158806×1
  • 2225000154997
    $53.42
    HEATSHIELD-EXHAUST EXTENSION - 5000154997×1
  • 2345000154510
    $81.02
    PLATE-SECONDARY SHIELD - 5000154510×1
  • 2785000164290
    $80.26
    GUARD-FAN - 5000164290×1
  • 4165000012362
    $0.40
    SCREW M8 X 20 HX.HD. - 5000012362×2
  • 4175000073164
    $0.42
    SCREW M6 X 10,HX.HD,SER.FLG - 5000073164×2
  • 4185000011340
    $0.50
    SCREW M8 X 35 HX.HD. - 5000011340×1
  • 4355000079363
    $0.36
    SCREW M8 X 16,HX.HD,SER.FLG - 5000079363×8
  • 4525000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×1
  • 4605000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×2
  • 4665000010366
    $0.54
    NUT-LOCK M12X1.75 HEX - 5000010366×2
  • 4675000110969
    $0.65
    NUT-LOCK,M8 CLIP - 5000110969×6
  • 4795000011423
    $0.75
    SCREW M12 X 30 HX.HD. - 5000011423×2
  • 4835000031565
    $0.48
    WASHER-LOCK A12 - 5000031565×2
  • 4935000010374
    $0.22
    WASHER B8.4 FLAT - 5000010374×1
  • 5135000010499
    $0.12
    PIN 3.2 X 25 COTTER - 5000010499×3
  • 9005000153505
    $0.21
    FUSE-BLADE TYPE,5A - 5000153505×1
  • 9015000153506Not stocked
    Fuse×1
  • 9025000111947
    $0.37
    FUSE 20A BLADE TYPE - 5000111947×1
  • 9035000081283
    $2.41
    FUSE 15AMP,BLADE TYPE - 5000081283×1
