CRT48-31V RIDE-ON TROWEL

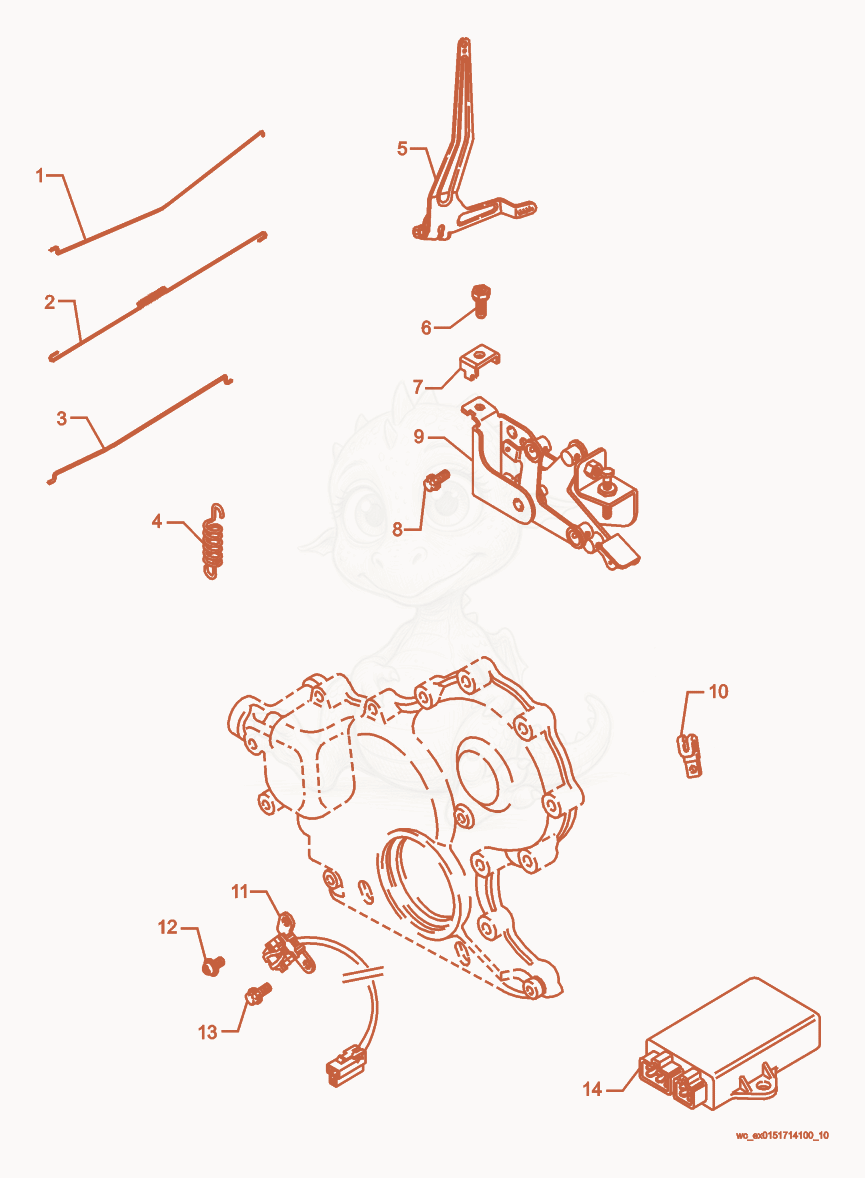

CRT48-31V-H Engine Control Diagram
- LINK - 5000158245×1
- spring - 5000158246×1
- LINK - 5000158247×1
- spring - 5000158248×1
- LEVER-GOVERNOR - 5000158249×1
- screw - 5000080926×1
- Clamp - 5000030958×1
- screw - 5000158252×2
- BRACKET - 5000158253×1
- clamp - 5000158254×1
- COIL-INDUCTION - 5000158255×1
- screw - 5000158256×1
- screw - 5000158205×1
- MODULE-IGNITION - 5000158257×1
