CRT48-31V RIDE-ON TROWEL

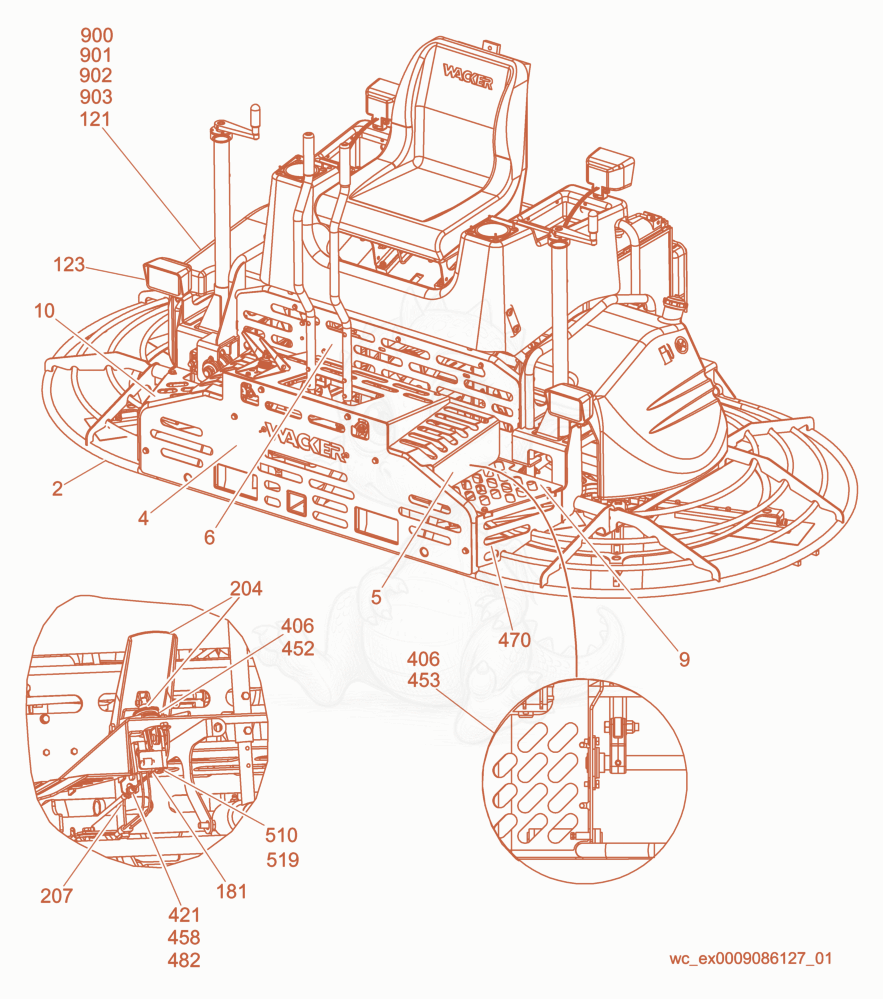

CRT48-31V-H Machine cpl./Front View/Lights/Guards Diagram

Exploded parts diagram of the Machine cpl./Front View/Lights/Guards of a Wacker Neuson CRT48-31V-H, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000153430Not stocked
    Frame cpl.×1
  • 45000158893
    $98.40
    Plate Front Grill 5000158893×1
  • 55000158884
    $645.44
    PLATE-FOOT ASSY,MS - 5000158884×1
  • 65000150083
    $310.55
    PLATE-GRILL,ENGINE - 5000150083×1
  • 95000152810
    $47.19
    PLATE-DECK,LEFT,CRT48-31V P-5000112007 - 5000152810×1
  • 105000152809
    $58.27
    PLATE-DECK,RIGHT,CRT48-31V - 5000152809×1
  • 1215000155370
    $854.36
    WIRE HARNESS,CRT48-31V - 5000155370×1
  • 1235000164150
    $140.51
    LIGHT-WORK,12V,RD16 - 5000164150×4
  • 1815000117384
    $146.99
    SWITCH-THROTTLE SENSE - 5000117384×1
  • 2045000160279
    $150.73
    CONTROL-THROTTLE PEDAL ASSY - 5000160279×1
  • 2075000152767
    $53.48
    CABLE-THROTTLE - 5000152767×1
  • 2505000158714
    $4.68
    FUSE-MAXI 70 AMP - 5000158714×1
  • 4065000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×7
  • 4215000011476
    $0.09
    SCREW M5 X 16 HX.HD. - 5000011476×2
  • 4525000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×3
  • 4535000029117
    $0.03
    NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×7
  • 4585000010369
    $0.03
    NUT-LOCK M5 HEX. - 5000010369×2
  • 4705000088190
    $0.57
    NUT M6 CLIP ZINC PLATED - 5000088190×8
  • 4825000010625
    $0.14
    WASHER B5.3 FLAT - 5000010625×2
  • 5105000116784
    $0.23
    PIN-CLEVIS 1/4 X 1/2 - 5000116784×2
  • 5195000075161
    $0.20
    PIN 1-3/16 LONG .073DIA,COTTER - 5000075161×5
  • 9005000153505
    $0.21
    FUSE-BLADE TYPE,5A - 5000153505×1
  • 9015000153506Not stocked
    Fuse×1
  • 9025000111947
    $0.37
    FUSE 20A BLADE TYPE - 5000111947×1
  • 9035000081283
    $2.41
    FUSE 15AMP,BLADE TYPE - 5000081283×1
