CRT48-31V RIDE-ON TROWEL

CRT48-31V-H Water System Kit Diagram

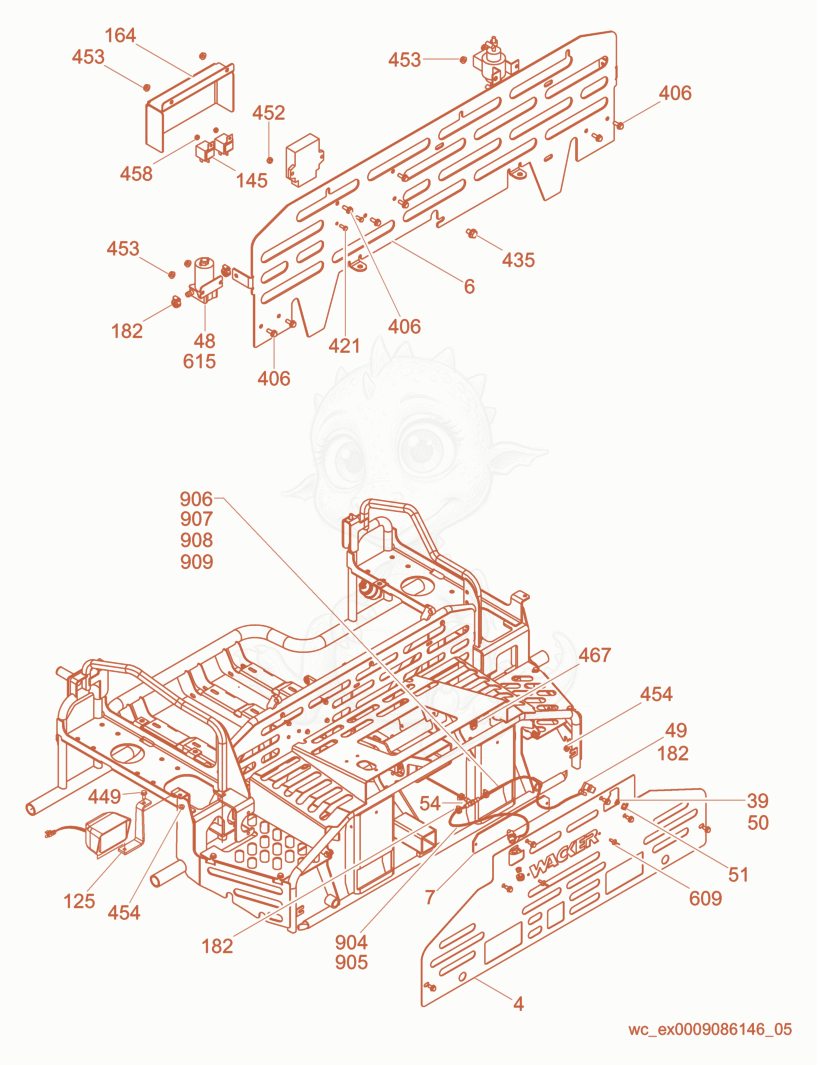

Exploded parts diagram of the Water System Kit of a Wacker Neuson CRT48-31V-H, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

45000152778Not stocked
Grille guard×1
65000150083
$310.55
PLATE-GRILL,ENGINE - 5000150083×1
75000154490
$8.21
PLATE-BACKING - 5000154490×1
395000151125
$38.13
VALVE-CHECK/STRAINER - 5000151125×2
485000153267
$104.23
KIT-WATER PUMP - 5000153267×1
495000117131
$53.25
ELBOW-JET - 5000117131×2
505000117132
$17.37
JET-SPRAY - 5000117132×2
515000117133
$44.97
FITTING-JET - 5000117133×2
545000155331
$3.77
FITTING-TEE - 5000155331×1
1255000164314
$36.02
BRACKET-FRONT LIGHT - 5000164314×2
1455000119220
$14.23
RELAY-12VDC,SPDT - 5000119220×2
1645000156318
$35.70
COVER-RELAY - 5000156318×1
1825000028707
$0.67
CLAMP-THREADED,.21-.63 - 5000028707×7
4065000028949
$0.29
SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×6
4215000011476
$0.09
SCREW M5 X 16 HX.HD. - 5000011476×2
4355000079363
$0.36
SCREW M8 X 16,HX.HD,SER.FLG - 5000079363×2
4465000011477
$0.06
SCREW M5 X 12 HX.HD. - 5000011477×2
4495000028404
$0.26
SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×2
4525000010368
$0.10
NUT-LOCK M6 HEX. - 5000010368×2
4535000029117
$0.03
NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×4
4545000010367
$0.10
NUT-LOCK M8 HEX - 5000010367×4
4585000010369
$0.03
NUT-LOCK M5 HEX. - 5000010369×2
6095000152696
$0.23
RIVET-NYLON DRIVE - 5000152696×2
6155000150009
$0.37
TERMINAL-RCPT 16-14AWG,INS - 5000150009×2
9045000160478
$17.51
HOSE-WATER 3/8 ,9 LONG - 5000160478×2
9055000160479
$8.87
WIRE-LOOM,LCP625,8 LONG - 5000160479×2
9065000160480
$14.81
HOSE-WATER 3/8 ,12 LONG - 5000160480×1
9075000160481
$8.38
WIRE-LOOM,LCP625,11 LONG - 5000160481×1
9085000160482
$4.65
HOSE-WATER 3/8 ,32 LONG - 5000160482×1
9095000160483
$6.36
WIRE-LOOM,LCP625,31 LONG - 5000160483×1
