CRT48-31V RIDE-ON TROWEL

CRT48-31V-H Manual Steering Handles Diagram

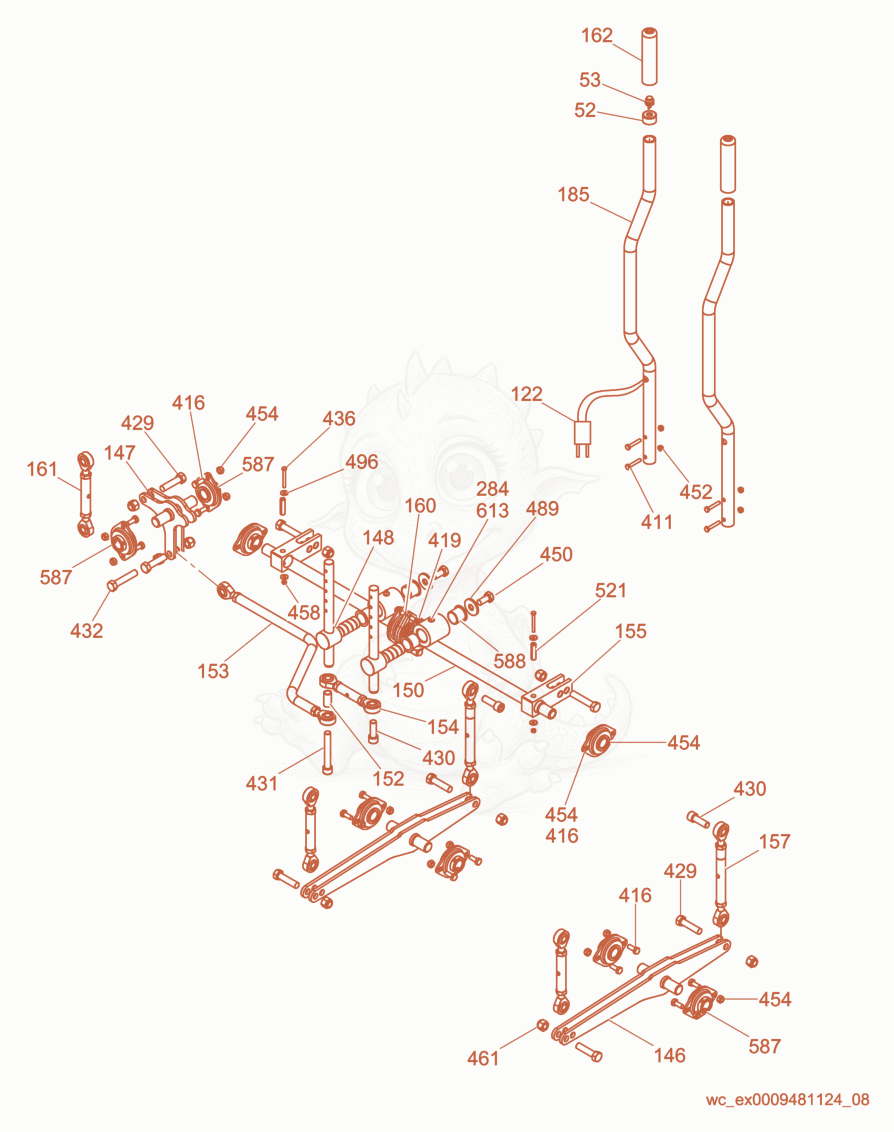

Exploded parts diagram of the Manual Steering Handles of a Wacker Neuson CRT48-31V-H, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 525000153562
    $10.99
    CAP-SWITCH - 5000153562×1
  • 535000153537
    $58.99
    SWITCH-PUSH BUTTON SP=5100043486 - 5000153537×1
  • 1225000152460
    $65.05
    WIRING HARNESS-CRT - 5000152460×1
  • 1465000154333
    $238.51
    BRACKET-STEERING PIVOT - 5000154333×2
  • 1475000154335
    $138.28
    BRACKET-L/R PIVOT P-5000176420 - 5000154335×1
  • 1485000154321
    $144.08
    PIVOT-HANDLE MOUNT P-5000176420 - 5000154321×2
  • 1505000116930
    $362.40
    SHAFT-HUB,48 - 5000116930×2
  • 1525000116913
    $35.21
    TUBE-SPACER - 5000116913×1
  • 1535000119555
    $122.85
    LINK-OFFSET PIVOT,48 - 5000119555×1
  • 1545000119552
    $139.56
    LINK-HANDLE PIVOT - 5000119552×1
  • 1555000153062
    $64.88
    HANDLE-PIVOT - 5000153062×2
  • 1575000119553
    $142.29
    LINK-F/B PIVOT - 5000119553×2
  • 1605000117394
    $12.03
    SPACER-BEARING - 5000117394×1
  • 1615000119554
    $90.60
    LINK-L/R PIVOT - 5000119554×3
  • 1625000152457
    $8.53
    HANDLE-GRIP,CRT - 5000152457×2
  • 1855000154656
    $323.85
    HANDLE-STEERING P-5000112007 - 5000154656×2
  • 2845000155804
    $0.14
    CAP-GREASE FITTING,RED - 5000155804×2
  • 4115000011368
    $0.12
    SCREW M6 X 35 HX.HD. - 5000011368×4
  • 4165000012362
    $0.40
    SCREW M8 X 20 HX.HD. - 5000012362×8
  • 4195000011344
    $0.48
    SCREW M8 X 55 HX.HD. - 5000011344×2
  • 4295000117636
    $1.69
    SCREW 1/2-20 X 2 ,HEX.HD. - 5000117636×10
  • 4305000154318
    $2.65
    SCREW 1/2 -20 X 1-1/2 ,SOC.HD. - 5000154318×2
  • 4315000154662
    $15.93
    SCREW 1/2 -20 X 3-1/2 ,SOC.HD. - 5000154662×1
  • 4325000117635
    $0.53
    SCREW 1/2-20X2-1/2 ,HEX.HD. - 5000117635×1
  • 4365000079365
    $0.15
    SCREW M5 X 45 HX.HD - 5000079365×2
  • 4505000013002
    $0.37
    SCREW M12 X 25 HX.HD. - 5000013002×2
  • 4525000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×4
  • 4545000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×8
  • 4585000010369
    $0.03
    NUT-LOCK M5 HEX. - 5000010369×2
  • 4615000117632
    $0.26
    NUT-LOCK 1/2-20,HEX(W/NYLON) - 5000117632×9
  • 4895000010376
    $0.29
    WASHER A13 FLAT - 5000010376×2
  • 4965000010372
    $0.03
    WASHER B5.3 FLAT - 5000010372×4
  • 5215000117637
    $0.32
    PIN 3/8 X 1-1/2, ROLLED - 5000117637×2
  • 5875000118695
    $39.66
    BEARING .875 ID,FLANGE UNIT - 5000118695×4
  • 5885000116765
    $10.18
    BEARING-FLANGE 1 ID - 5000116765×4
  • 6135000036607
    $0.58
    FITTING-GREASE AM10 - 5000036607×2
