CRT48-35L-PS

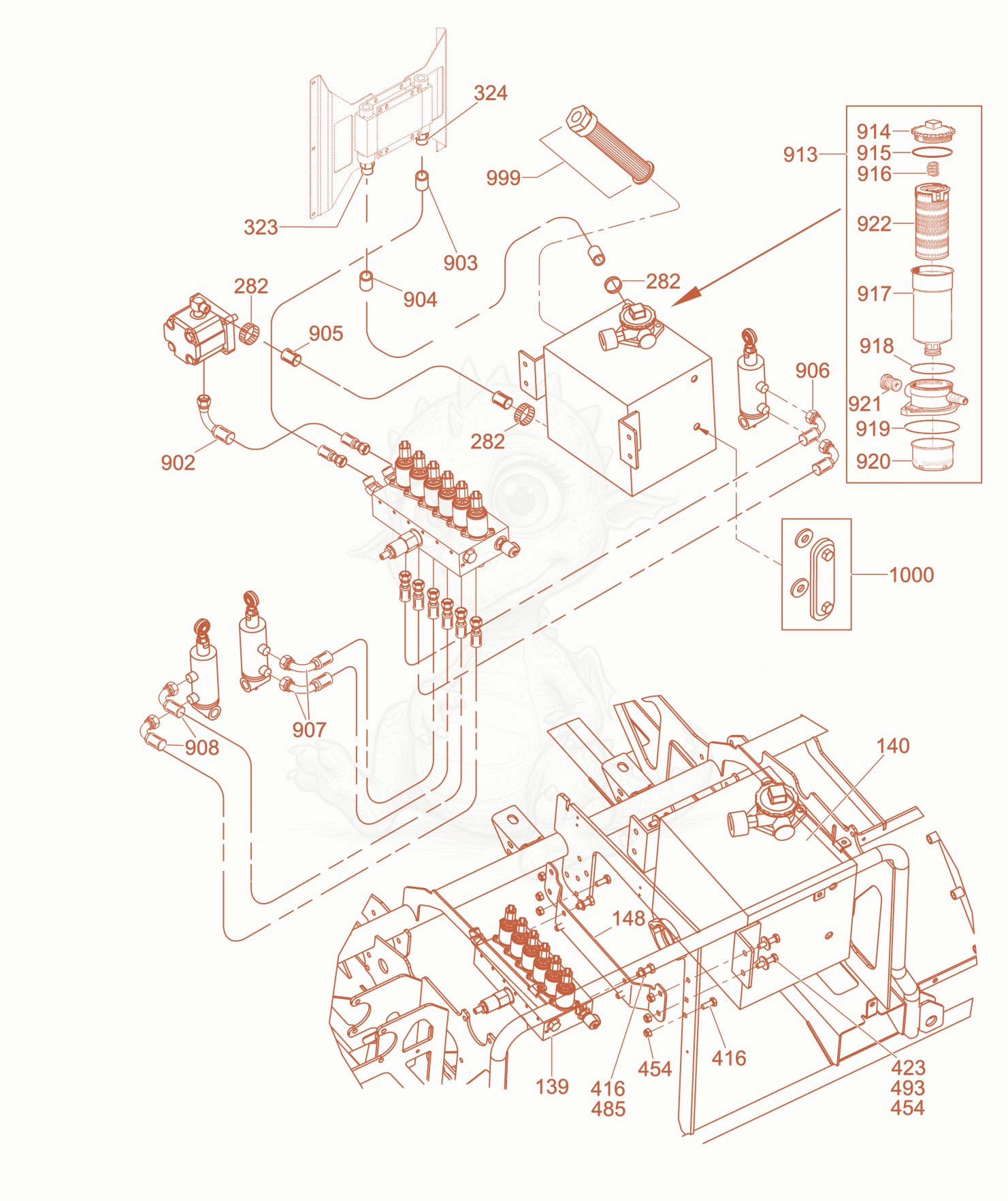

CRT48-35L-PSEU Hydraulic Piping Diagram

1395000178306
$2,599.87
MANIFOLD-HYDRAULIC CRT48PS - 5000178306×1
1405000178307
$1,775.25
RESERVOIR-HYDRAULIC CRT48PS - 5000178307×1
1485000179104
$82.60
BRACKET-MANIFOLD MOUNT P-5000176420 - 5000179104×1
2825000172012
$1.40
CLAMP-HOSE W/O SERATN 20-32 MM - 5000172012×3
3235000119955
$7.17
FITTING-STRAIGHT,#12 - 5000119955×1
3245000112404
$13.22
FITTING-HYD. 8-12 ST. - 5000112404×1
4165000012362
$0.40
SCREW M8 X 20 HX.HD. - 5000012362×4
4235000011340
$0.50
SCREW M8 X 35 HX.HD. - 5000011340×4
4545000010367
$0.10
NUT-LOCK M8 HEX - 5000010367×6
4855000010622
$0.10
WASHER-FLAT,M8,ZINC - 5000010622×4
4935000010374
$0.22
WASHER B8.4 FLAT - 5000010374×4
9025000178310
$52.48
HOSE-CRT48PS,PUMP - 5000178310×1
9035000178312
$64.85
HOSE-CRT48PS,RETURN - 5000178312×1
9045000178955
$50.05
HOSE-CRT48PS,C RETURN - 5000178955×1
9055000178311
$26.65
HOSE-CRT48PS,SUCTION - 5000178311×1
9065000178313
$44.15
HOSE-CRT48PS,FR - 5000178313×2
9075000178957
$41.58
HOSE-CRT48PS,FR LEFT - 5000178957×2
9085000178314
$45.09
HOSE-CRT48PS,LR - 5000178314×2
9135000182715
$292.49
FILTER-HYDRAULIC - 5000182715×1
9145000182716
$22.11
CAP-FILTER - 5000182716×1
9155000182717
$9.82
O-ring - 5000182717×1
9165000182718
$2.33
COMPRESSION - 5000182718×1
9175000182719
$27.21
Filter housing - 5000182719×1
9185000182720
$1.19
O-ring - 5000182720×1
9195000182721
$5.48
O-ring - 5000182721×1
9205000182722
$19.91
OIL SEPARATOR - 5000182722×1
9215000182723
$22.96
Breather - 5000182723×1
9225000182724
$217.39
FILTER ELEMENT - 5000182724×1
9995200013523Not stocked
Strainer×1
10005100042463
$46.28
Sight Glass - 5100042463×1
