CRT48-35L-PS

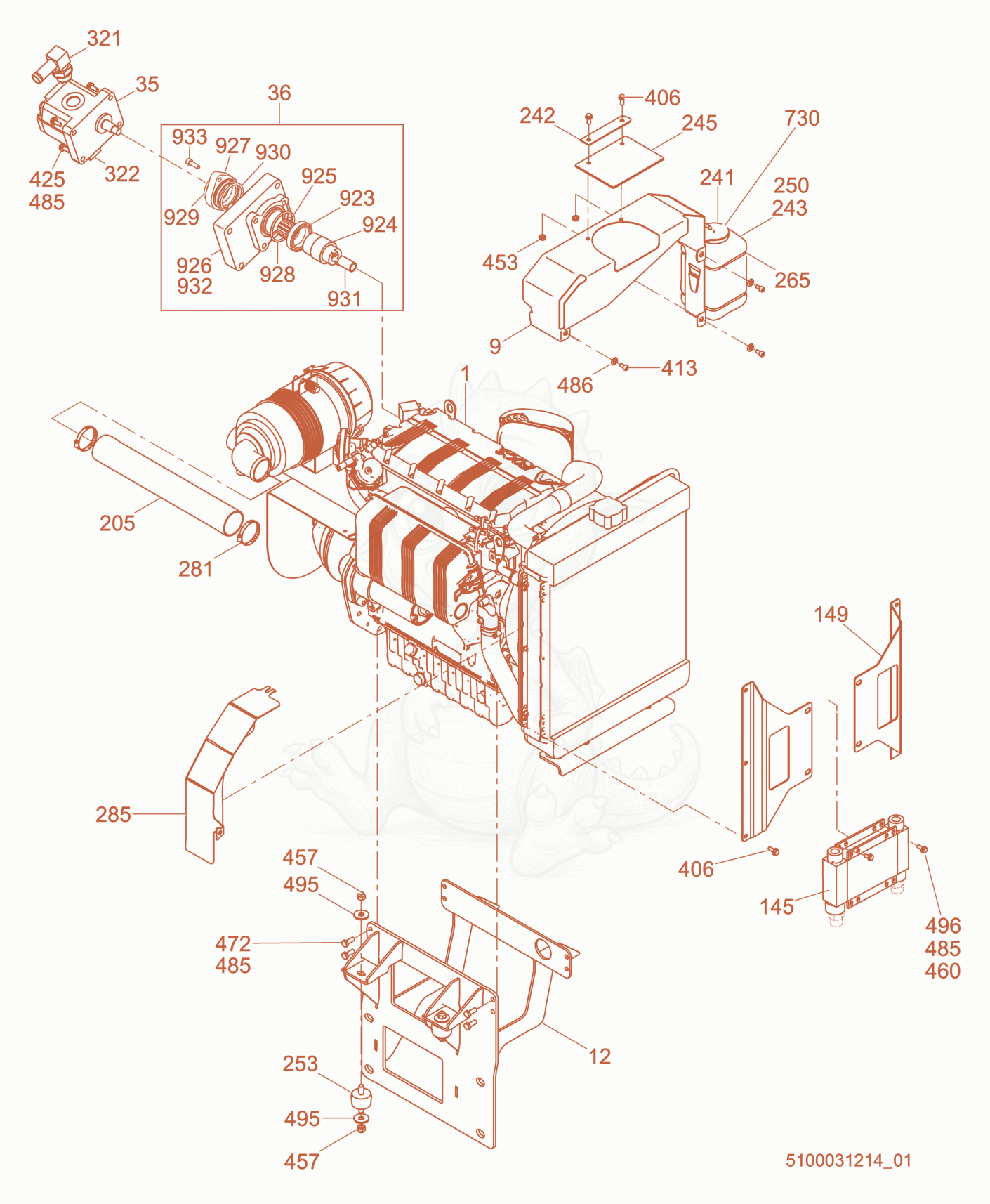

CRT48-35L-PSEU Engine Compartment Diagram

Exploded parts diagram of the Engine Compartment of a Wacker Neuson CRT48-35L-PSEU, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100040103
    $25,812.28
    ENGINE-LOMBARDINI 1404,35HP, EXPORT ONLY - 5100040103×1
  • 95000171164
    $104.90
    SHIELD-RADIATOR,35L P-5000176420 - 5000171164×1
  • 125000163872
    $965.22
    BRACKET-ASSEMBLY DIESEL ENG P-5000176420 - 5000163872×1
  • 355000182916
    $525.49
    PUMP-EXCITER - 5000182916×1
  • 365000178308
    $720.60
    KIT-PUMP MOUNT - 5000178308×1
  • 1455200015612Not stocked
    Radiator×1
  • 1495100030668
    $375.06
    Bracket-Oil Cooler 35L,MA-3 P-5000176420 - 5100030668×2
  • 2055000171654
    $32.49
    HOSE-AIR 2 X 375MM - 5000171654×1
  • 2415000165144
    $3.23
    CAP-BOTTLE,OVERFLOW - 5000165144×1
  • 2425000171601
    $34.41
    PLATE-REINFORCING P-5000112007 - 5000171601×1
  • 2435000165143
    $25.80
    BOTTLE-OVERFLOW - 5000165143×1
  • 2455000171443
    $5.58
    SHIELD-RADIATOR CAP - 5000171443×1
  • 2535000152587
    $29.73
    SHOCKMOUNT - 5000152587×4
  • 2655000173813
    $0.55
    CABLE-TIE,#28-120-UV-50 - 5000173813×2
  • 2815000112287
    $1.99
    CLAMP-THREADED,1.56-2.50 - 5000112287×2
  • 2855000173032
    $134.52
    SHIELD-AIR,35L P-5000176420 - 5000173032×1
  • 3215000164089
    $30.49
    FITTING-ELBOW-#12BARB-#120RB - 5000164089×1
  • 3225000081340
    $24.83
    FITTING-HYDRAULIC,ELBOW,90 - 5000081340×1
  • 4065000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×2
  • 4135000011554
    $0.13
    SCREW M6 X 12 SOC.HD. - 5000011554×3
  • 4255000011540
    $0.55
    SCREW M8 X 35 SOC.HD. - 5000011540×4
  • 4535000029117
    $0.03
    NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×3
  • 4575000025723
    $0.09
    NUT-LOCK 3/8-16,HEX,NYLON INS. - 5000025723×4
  • 4605000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×4
  • 4725000165454Not stocked
    Hexagonal head cap screw×8
  • 4855000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×16
  • 4865000010373
    $0.03
    WASHER B6.4 FLAT - 5000010373×3
  • 4955000010375
    $0.18
    WASHER B10.5 FLAT - 5000010375×4
  • 4965000010376
    $0.29
    WASHER A13 FLAT - 5000010376×4
  • 7305100019512
    $8.54
    Hose-Fuel,LP1300,152.4mm - 5100019512×1
  • 9235000160759
    $115.12
    BEARING-BALL - 5000160759×1
  • 9245000160754
    $390.67
    Bushing - 5000160754×1
  • 9255000160755
    $133.23
    COUPLING-SPLINE - 5000160755×1
  • 9265000160754
    $390.67
    Bushing - 5000160754×1
  • 9275000160756
    $248.61
    Cover - 5000160756×1
  • 9285000159234
    $2.84
    O-RING - 5000159234×1
  • 9295000160761
    $3.62
    O-RING 1.42 - 5000160761×1
  • 9305000110759
    $2.09
    O-RING - 5000110759×1
  • 9315000160752
    $12.42
    Sleeve - 5000160752×1
  • 9325000160763
    $1.30
    Bolt - 5000160763×3
  • 9335000160764
    $1.43
    Bolt - 5000160764×2
