CRT48-35V

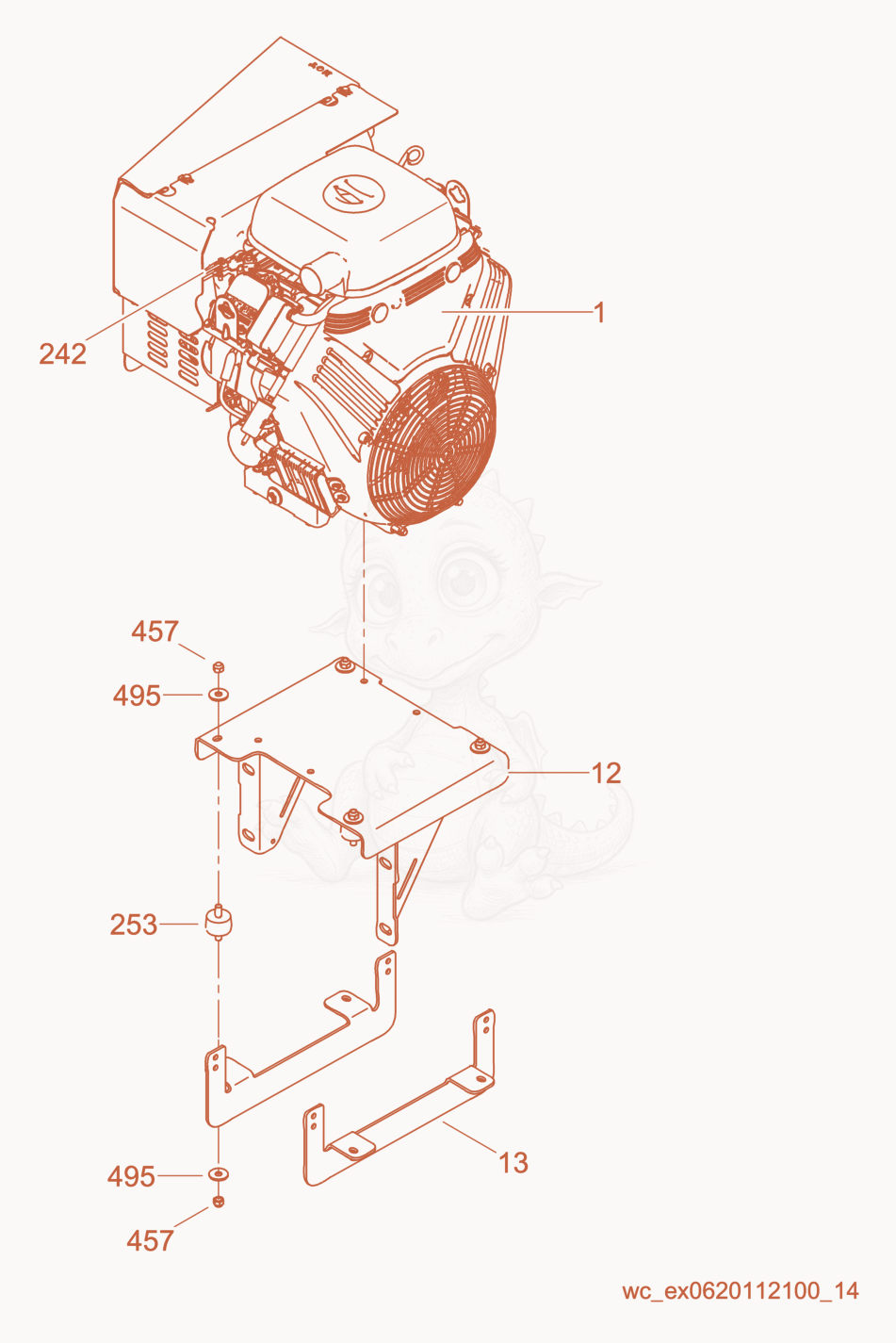

CRT48-35V Engine Compartment Diagram

Exploded parts diagram of the Engine Compartment of a Wacker Neuson CRT48-35V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000165022Not stocked
    Engine-Briggs×1
  • 125000164108
    $208.63
    Plate-Assy, V-Twin P-5000176420 - 5000164108×1
  • 135000164106
    $456.30
    BRACKET-ENGINE P-5000176420 - 5000164106×2
  • 2425000171447
    $12.35
    CABLE-CHOKE - 5000171447×1
  • 2535000152587
    $29.73
    SHOCKMOUNT - 5000152587×4
  • 4575000025723
    $0.09
    NUT-LOCK 3/8-16,HEX,NYLON INS. - 5000025723×8
  • 4955000010375
    $0.18
    WASHER B10.5 FLAT - 5000010375×8
