CRT48-35V

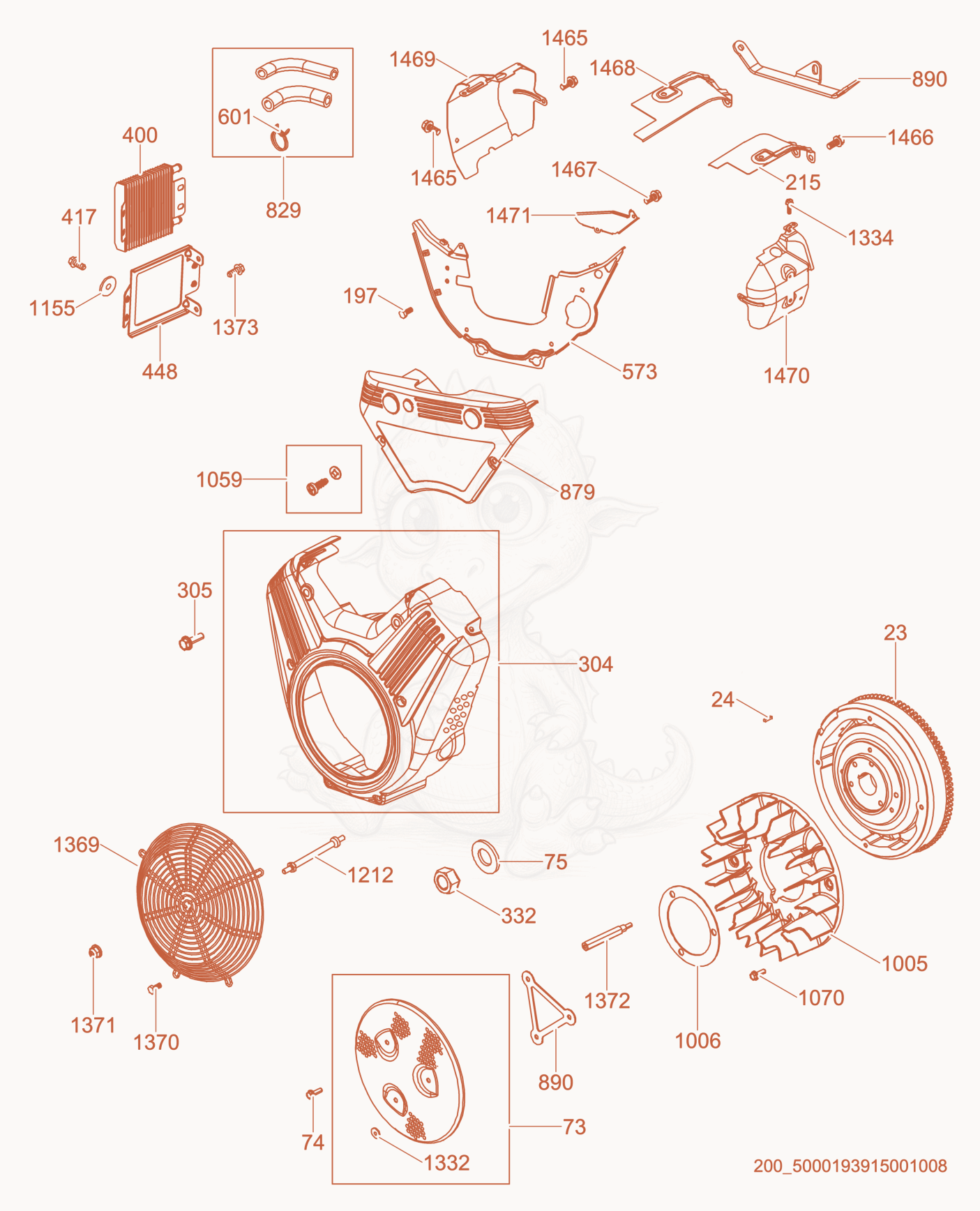

CRT48-35V Flywheel/Blower Housing Diagram
- Flyweel - 5200002584×1
- KEY-FLYWHEEL MOUNT,STEEL - 5200002585×1
- SCREEN-ROTATING - 5000216134×1
- Screw - 5000216089×3
- Washer - 5000216161×1
- Screw - 5000208216×4
- GUIDE-AIR - 5000216061×1
- HOUSING-BLOWER - 5200002615×1
- Screw - 5000216041×6
- Nut - 5000216159×1
- Oil cooler - 5000216113×1
- Screw - 5000216178×4
- BRACKET-OIL COOLER - 5000216115×1
- PLATE-BACK - 5200002621×1
- CLAMP-HOSE - 5200002623×1
- HOSE-OIL - 5000216114×1
- COVER-CARBURETOR - 5000216092×1
- BRACKET-SUPPORT - 5000216099×1
- FAN-FLYWHEEL - 5000216091×1
- FAN RETAINER - 5000216100×1
- SCREW W/WASHER (SET OF FOUR) - 5000160170×2
- Screw - 5000216041×4
- Washer - 5000216029×4
- STUD - 5000216095×2
- Washer - 5000216090×3
- Screw - 5000216041×1
- GUARD-FLYWHEEL FAN - 5000216166×1
- Screw - 5000208216×4
- Nut - 5000216118×4
- STUD - 5000216088×3
- Screw - 5000208216×2
- Screw - 5000208216×2
- Screw - 5000160165×2
- Screw - 5000118430×2
- GUIDE-AIR - 5000216067×1
- GUIDE-AIR - 5000216082×1
- GUIDE-AIR - 5000216068×1
- GUIDE-AIR - 5000216069×1
- BRACKET-SUPPORT - 5000216129×1
