CRT48-37V Trowel, Power Steer

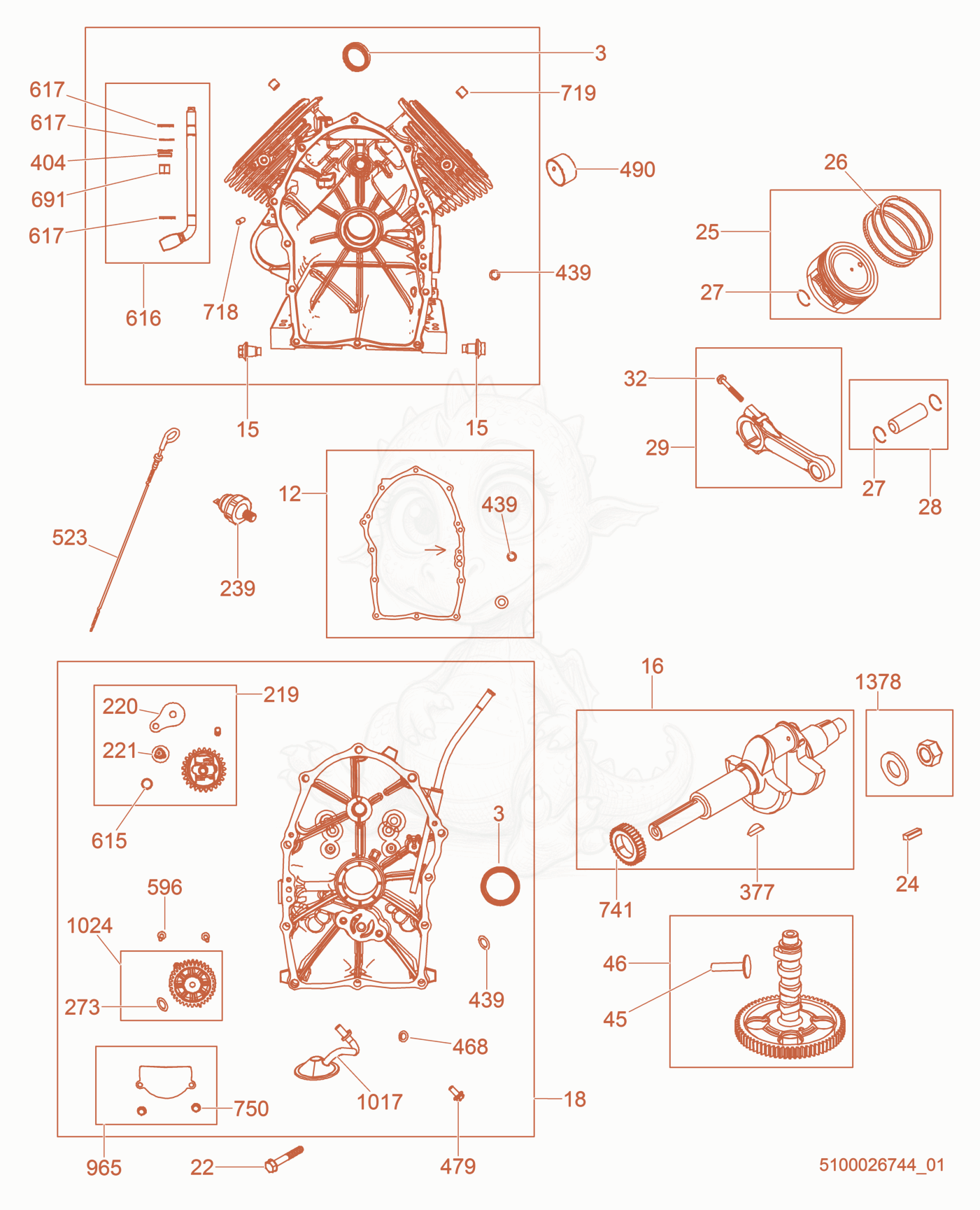

CRT48-37V-PS Engine Block Diagram

Exploded parts diagram of the Engine Block of a Wacker Neuson CRT48-37V-PS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 35000216125
    $28.04
    SEAL-OIL - 5000216125×2
  • 125200020445Not stocked
    Crankcase gasket×1
  • 155000216039
    $10.75
    PLUG-OIL DRAIN - 5000216039×2
  • 165000216133
    $817.65
    CRANKSHAFT - 5000216133×1
  • 185200002582
    $682.03
    COVER-CRANKCASE - 5200002582×1
  • 225000208196
    $5.56
    Screw - 5000208196×10
  • 245200002585
    $10.65
    KEY-FLYWHEEL MOUNT,STEEL - 5200002585×1
  • 255000216131
    $314.04
    PISTON ASSEMBLY(STANDARD) - 5000216131×2
  • 265000216097
    $126.85
    RING SET (STANDARD) - 5000216097×2
  • 275000216031
    $7.60
    LOCK-PISTON PIN - 5000216031×6
  • 285000216033
    $44.42
    PIN-PISTON - 5000216033×2
  • 295000216132
    $132.34
    ROD-CONNECTING - 5000216132×2
  • 325000216034
    $11.41
    Screw - 5000216034×4
  • 455000216074
    $13.45
    TAPPET-VALVE - 5000216074×1
  • 465000216079
    $285.88
    Camshaft - 5000216079×1
  • 2195000216047
    $111.47
    GEAR-GOVENOR - 5000216047×1
  • 2205000216128
    $20.76
    Washer - 5000216128×1
  • 2215000216102
    $19.51
    CUP-GOVERNOR - 5000216102×1
  • 2395100026464
    $67.46
    Switch-oil pressure - 5100026464×1
  • 2735000118433
    $9.43
    O-ring - 5000118433×1
  • 3775000118483
    $10.02
    KEY-TIMING - 5000118483×1
  • 4045000216049
    $9.61
    Washer - 5000216049×1
  • 4395000118494
    $9.19
    O-ring - 5000118494×10
  • 4685000118439
    $9.43
    O-ring - 5000118439×10
  • 4795000160165
    $5.56
    Screw - 5000160165×1
  • 4905200020462Not stocked
    Bearing×1
  • 5235200002619
    $44.01
    DIPSTICK - 5200002619×1
  • 5965000118471
    $6.40
    Screw - 5000118471×2
  • 6155000216025
    $7.38
    GOVERNOR SHAFT RETAINER - 5000216025×1
  • 6165200002624
    $60.54
    CRANK-GOVERNOR - 5200002624×1
  • 6175000216051
    $7.81
    RETAINER-GOVERNOR SHAFT - 5000216051×3
  • 6915000216043
    $9.85
    SEAL-GOVERNOR SHAFT - 5000216043×1
  • 7185000083522
    $9.07
    Pin - 5000083522×2
  • 7195000216050
    $9.64
    PIN-LOCATING - 5000216050×2
  • 7415000216048
    $71.45
    GEAR-TIMING - 5000216048×1
  • 7505000208216
    $5.56
    Screw - 5000208216×2
  • 9655000216046
    $33.20
    COVER-OIL PUMP - 5000216046×1
  • 10175000216045
    $58.38
    SCREEN-OIL PUMP - 5000216045×1
  • 10245200020470Not stocked
    Oil Pump×1
  • 13785200020473Not stocked
    Washer w/nut×1
