CRT48-37V Trowel, Power Steer

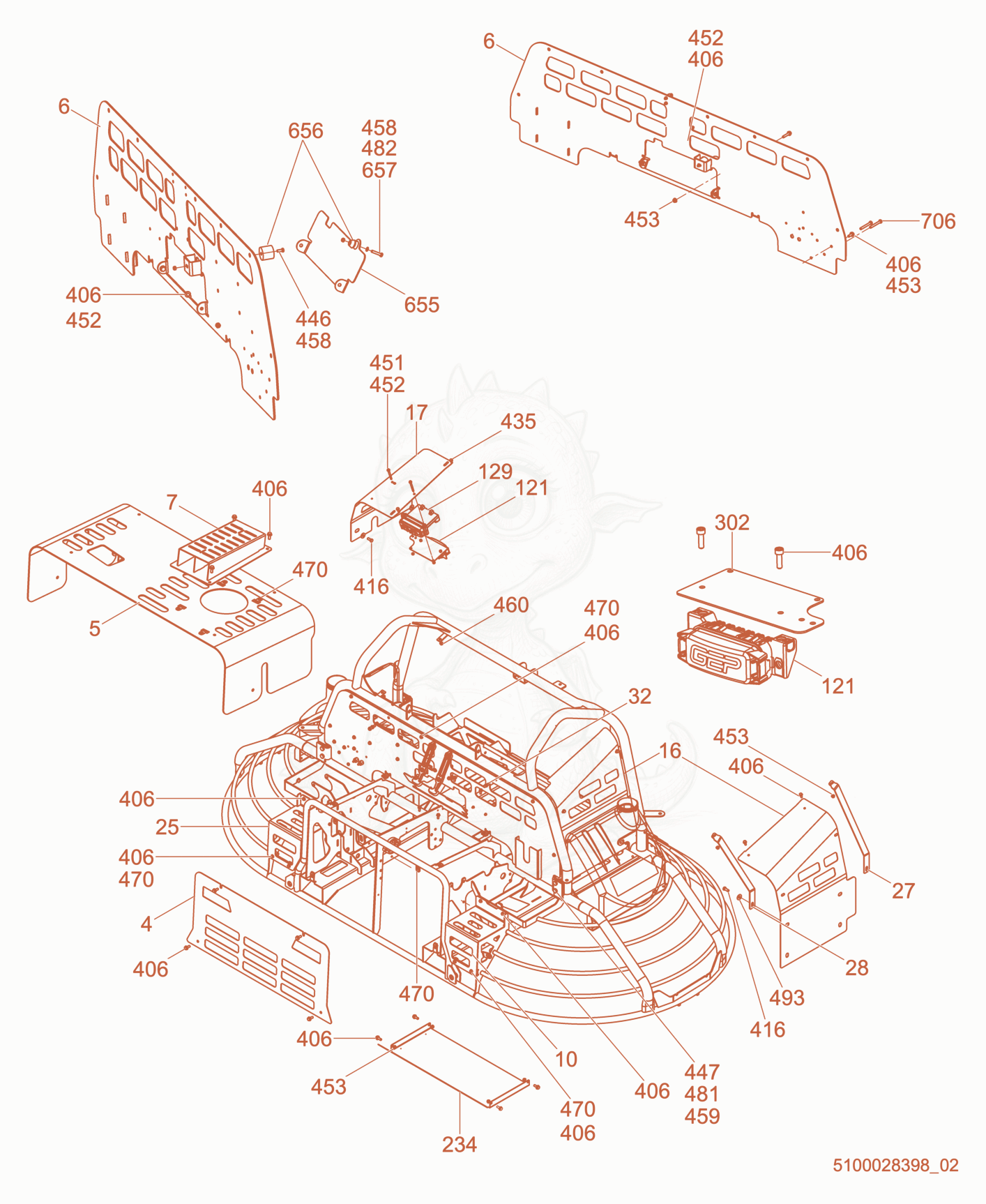

CRT48-37V-PS Panel Diagram
- PLATE-FRONT GRILL P-5000112006 - 5000164099×1
- PLATE-FOOT ASSY,ES P-5000176420 - 5000164811×1
- 65200024411Not stockedPlate×1
- Bracket-Foot Riser Assembly P-5000176420 - 5000179110×1
- PLATE-STEP,CRT48 P-5000176420 - 5000164103×1
- 165200023454Not stockedPanel-side×1
- 175200023453Not stockedRight side panel×1
- PLATE-STEP,RIGHT P-5000176420 - 5000165031×1
- STRUT-REAR P-5000176420 - 5100015939×1
- STRUT-FRONT P-5000176420 - 5100015938×1
- STUD-BALL 10 x M8 - 5000155125×2
- WIRING HARNESS,CRT48-37V - 5100024530×2
- CONTROLLER,CRT48 PS - 5000178304×1
- CLAMP-THREADED,.21-.63 - 5000028707×2
- GUARD-SPLASH P-5000176420 - 5000164908×1
- 3025200017462Not stockedPlate×1
- SCREW M8 X 20 HX.HD. - 5000012362×4
- SCREW M8 X 16,HX.HD,SER.FLG - 5000079363×2
- SCREW M5 X 12 HX.HD. - 5000011477×1
- SCREW M10 X 30 HX.HD - 5000011439×8
- SCREW M6 X 60,FLANGED SOC.HD. - 5000095917×2
- NUT-LOCK M6 HEX. - 5000010368×4
- NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×12
- NUT-LOCK M5 HEX. - 5000010369×2
- NUT-LOCK M10 HEX. - 5000010365×8
- NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×2
- NUT-LOCK,M6 CLIP,PHOSPHATE - 5000150959×17
- WASHER B10.5 FLAT - 5000010621×8
- WASHER B5.3 FLAT - 5000010625×1
- WASHER B8.4 FLAT - 5000010374×4
- PIN 1-3/16 LONG .073DIA,COTTER - 5000075161×1
- 6555200024413Not stockedCover×1
- LATCH-DOOR - 5000192831×1
- SCREW M5X25 HX.HD. - 5000011474×1
- SCREW M6 X 50 HX.HD. - 5000011331×2
