CRT48-57K Trowel

CRT48-57K-MS Panel cpl. Diagram

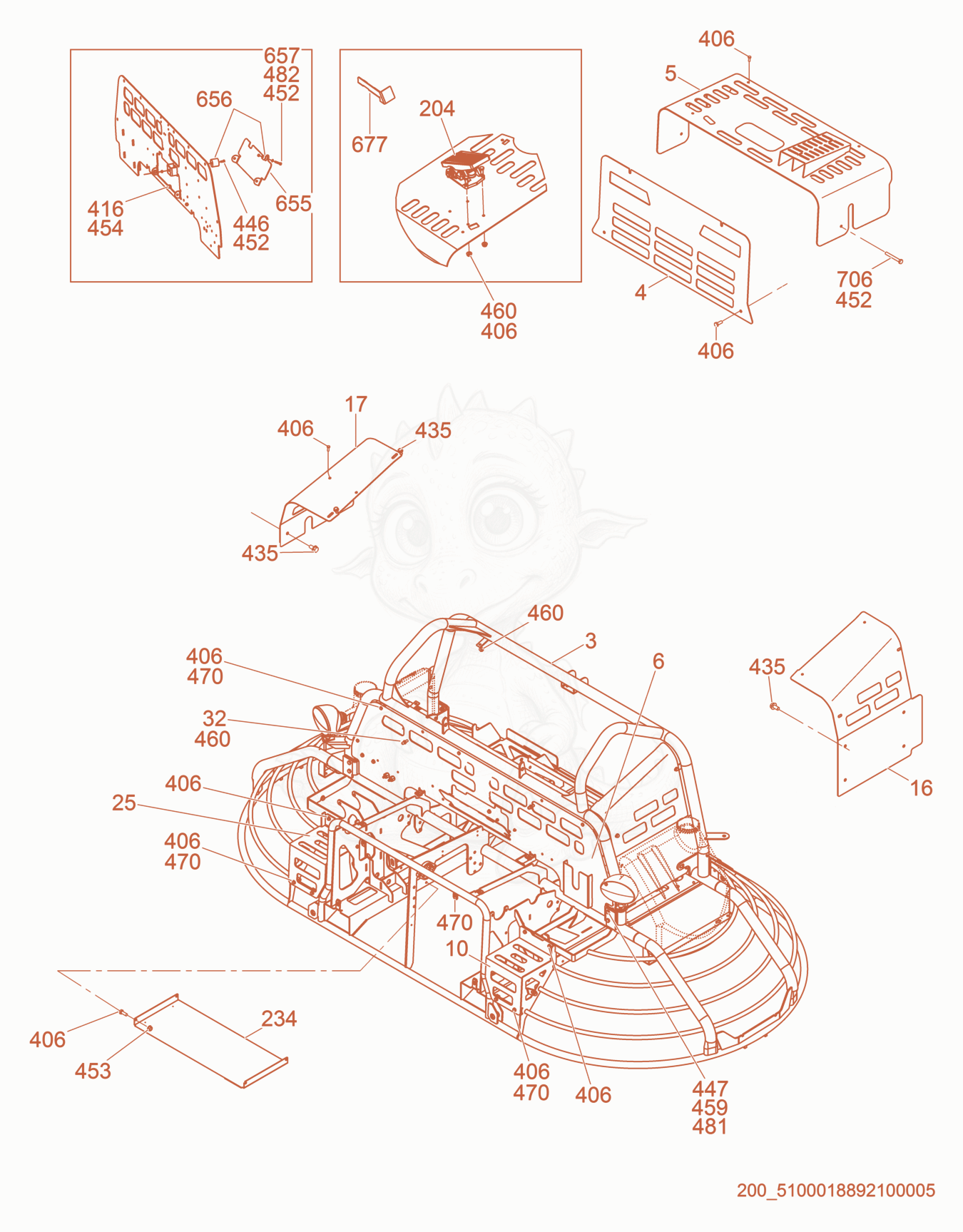

Exploded parts diagram of the Panel cpl. of a Wacker Neuson CRT48-57K-MS, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

35200023465Not stocked
Upper frame×1
45000164099
$193.31
PLATE-FRONT GRILL P-5000112006 - 5000164099×1
55100018893
$821.61
PLATE-FOOT ASSEMBLY P-5000176420 - 5100018893×1
65200024411Not stocked
Plate×1
105000164103
$33.44
PLATE-STEP,CRT48 P-5000176420 - 5000164103×1
165200023455Not stocked
Left side panel×1
175200023453Not stocked
Right side panel×1
255000165031
$132.80
PLATE-STEP,RIGHT P-5000176420 - 5000165031×1
325000155125
$1.16
STUD-BALL 10 x M8 - 5000155125×2
2045200024607Not stocked
Pedal lever cpl.×1
2345000164908
$266.88
GUARD-SPLASH P-5000176420 - 5000164908×1
4065000028949
$0.29
SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×32
4165000012362
$0.40
SCREW M8 X 20 HX.HD. - 5000012362×2
4355000079363
$0.36
SCREW M8 X 16,HX.HD,SER.FLG - 5000079363×10
4465000011477
$0.06
SCREW M5 X 12 HX.HD. - 5000011477×1
4475000011439
$0.23
SCREW M10 X 30 HX.HD - 5000011439×8
4515000095917
$1.01
SCREW M6 X 60,FLANGED SOC.HD. - 5000095917×2
4525000010368
$0.10
NUT-LOCK M6 HEX. - 5000010368×6
4535000029117
$0.03
NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×6
4545000010367
$0.10
NUT-LOCK M8 HEX - 5000010367×2
4595000089316
$0.29
NUT-LOCK M10,SERR.,FLANGE - 5000089316×8
4605000030066
$0.16
NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×4
4705000150959
$0.52
NUT-LOCK,M6 CLIP,PHOSPHATE - 5000150959×13
4815000010621
$0.13
WASHER B10.5 FLAT - 5000010621×8
4825000010625
$0.14
WASHER B5.3 FLAT - 5000010625×1
6555200024413Not stocked
Cover×1
6565000192831
$18.01
LATCH-DOOR - 5000192831×1
6575000011474
$0.18
SCREW M5X25 HX.HD. - 5000011474×1
6775200025746Not stocked
Guard×1
