CT24-4A Trowel

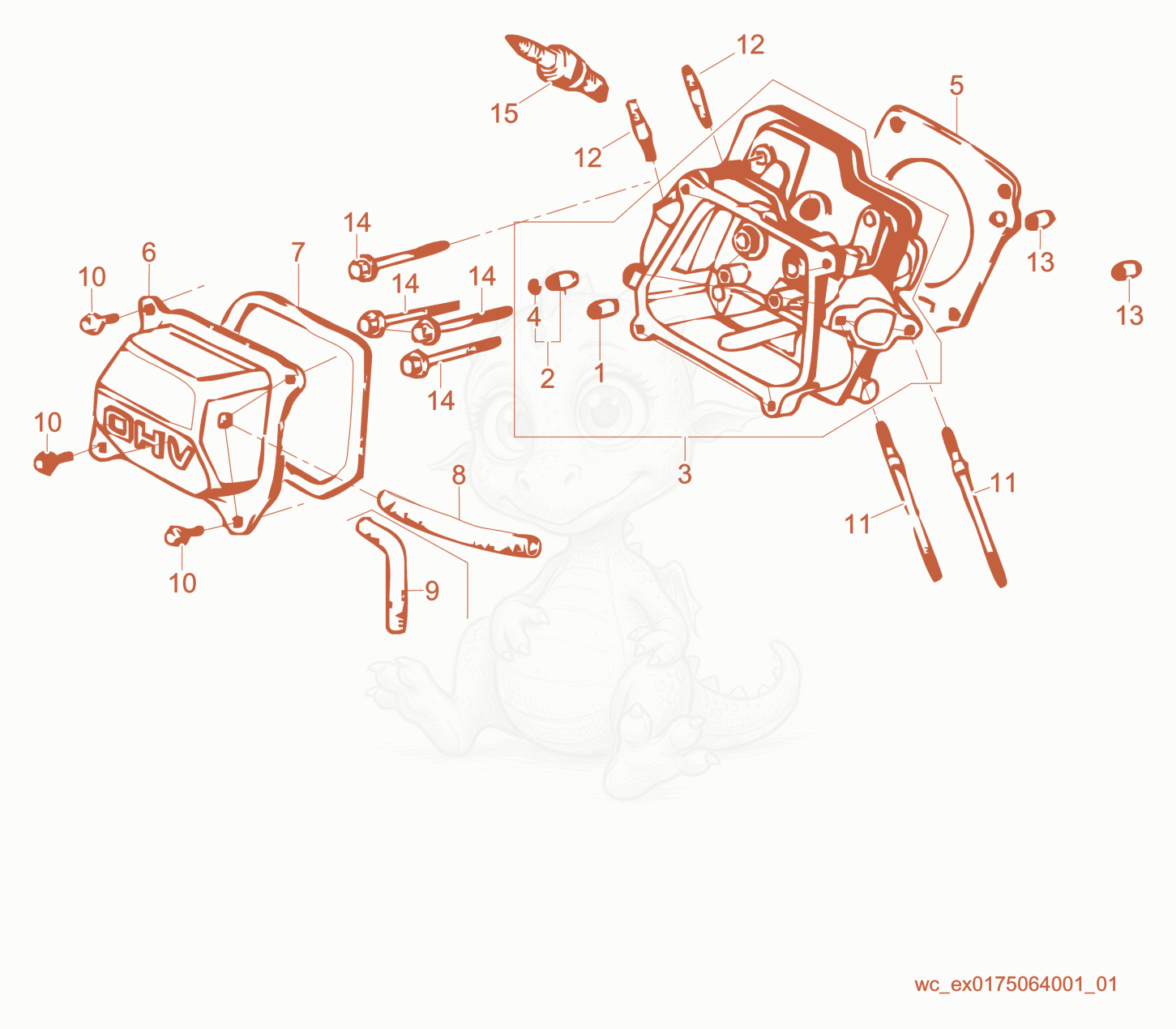

CT24-4A Cylinder Head Diagram

Exploded parts diagram of the Cylinder Head of a Wacker Neuson CT24-4A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000070945
    $24.22
    GUIDE-ENGINE VALVE,INTAKE - 5000070945×1
  • 25000070944
    $11.04
    GUIDE-VALVE,EXHAUST,ENGINE - 5000070944×1
  • 35000081786
    $337.84
    HEAD-ENGINE CYLINDER - 5000081786×1
  • 45000081744
    $2.07
    CLIP-VALVE GUIDE - 5000081744×1
  • 55000216514
    $16.61
    GASKET-CYLINDER - 5000216514×1
  • 65000070839
    $23.98
    valve cover - 5000070839×1
  • 75000070942
    $6.31
    GASKET - 5000070942×1
  • 85000081761
    $5.61
    TUBE-BREATHER - 5000081761×1
  • 105000053990
    $2.33
    SCREW M6 X 12,HX.FLANGE HD. - 5000053990×4
  • 115000073263
    $7.87
    STUD M6 X 109 - 5000073263×2
  • 125000070948
    $5.36
    STUD M8 X 32 - 5000070948×2
  • 135000070950
    $5.75
    PIN-DOWEL - 5000070950×2
  • 145000070943
    $2.82
    SCREW M8 X 55 - 5000070943×4
  • 155000150914
    $3.67
    SPARK PLUG-(BPR6ES)NKS X-5000203788 - 5000150914×1
