CT24-4A Trowel

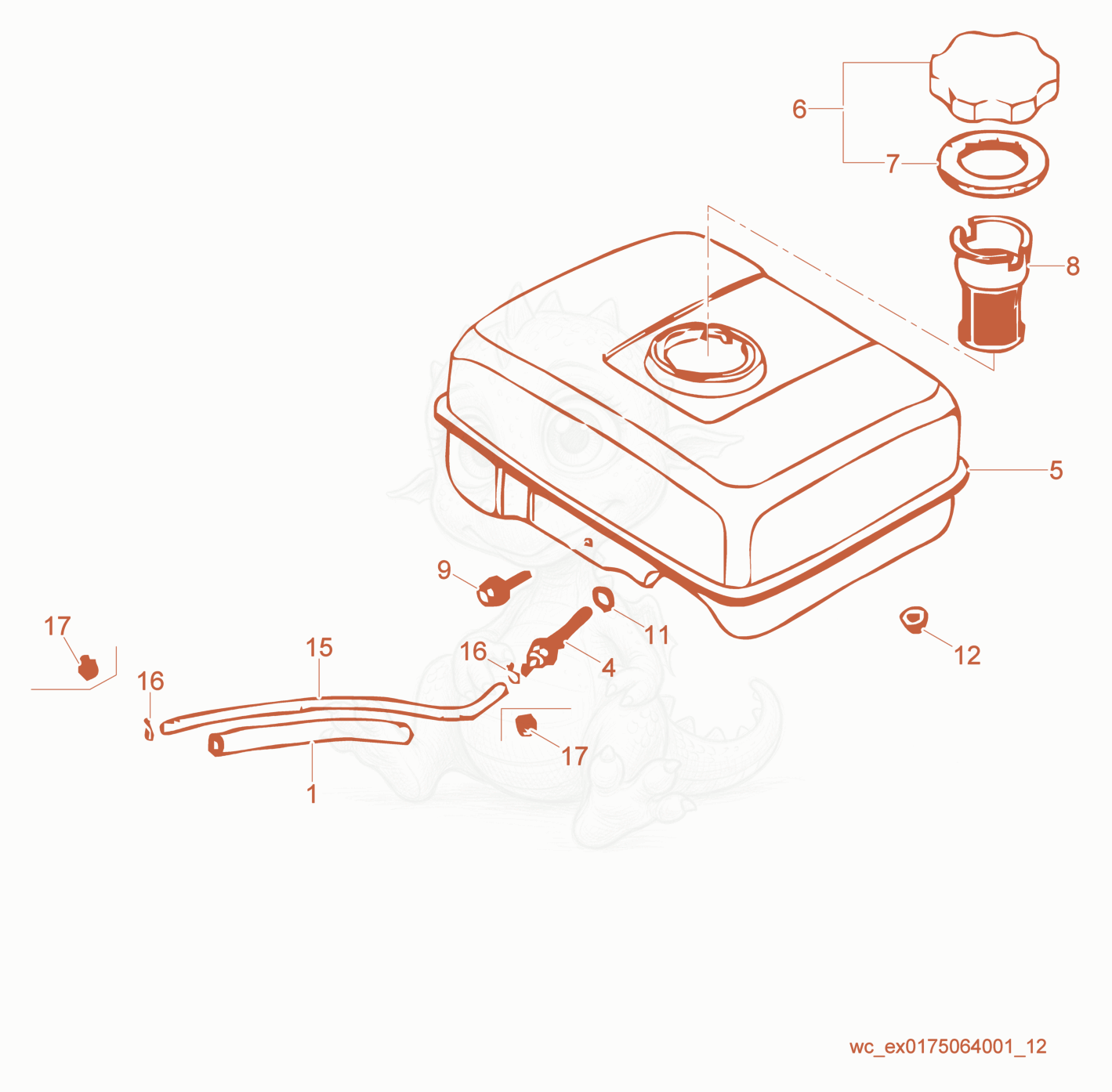

CT24-4A Fuel Tank cpl. Diagram
- hose cover - 5000081764×1
- FILTER-FUEL,INTANK - 5000071083×1
- Tank Fuel (White) 5000216515×1
- FUEL CAP - 5000209769×1
- Gasket - 5000209770×1
- BOLT-FLANGE 6 X 29 - 5000209771×1
- O-RING 14 X 1.3 - 5000071082×1
- NUT M6,HEX,FLANGE - 5000071056×2
- HOSE-FUEL(4.5 X 140) - 5000209773×1
- HOSE-FUEL(4.5 X 3000) - 5000213412×1
- CLAMP B8,HOSE CLIP - 5000054136×2
- CLAMP-TUBE - 5000208617×1
