vibration plate DPS 1850H

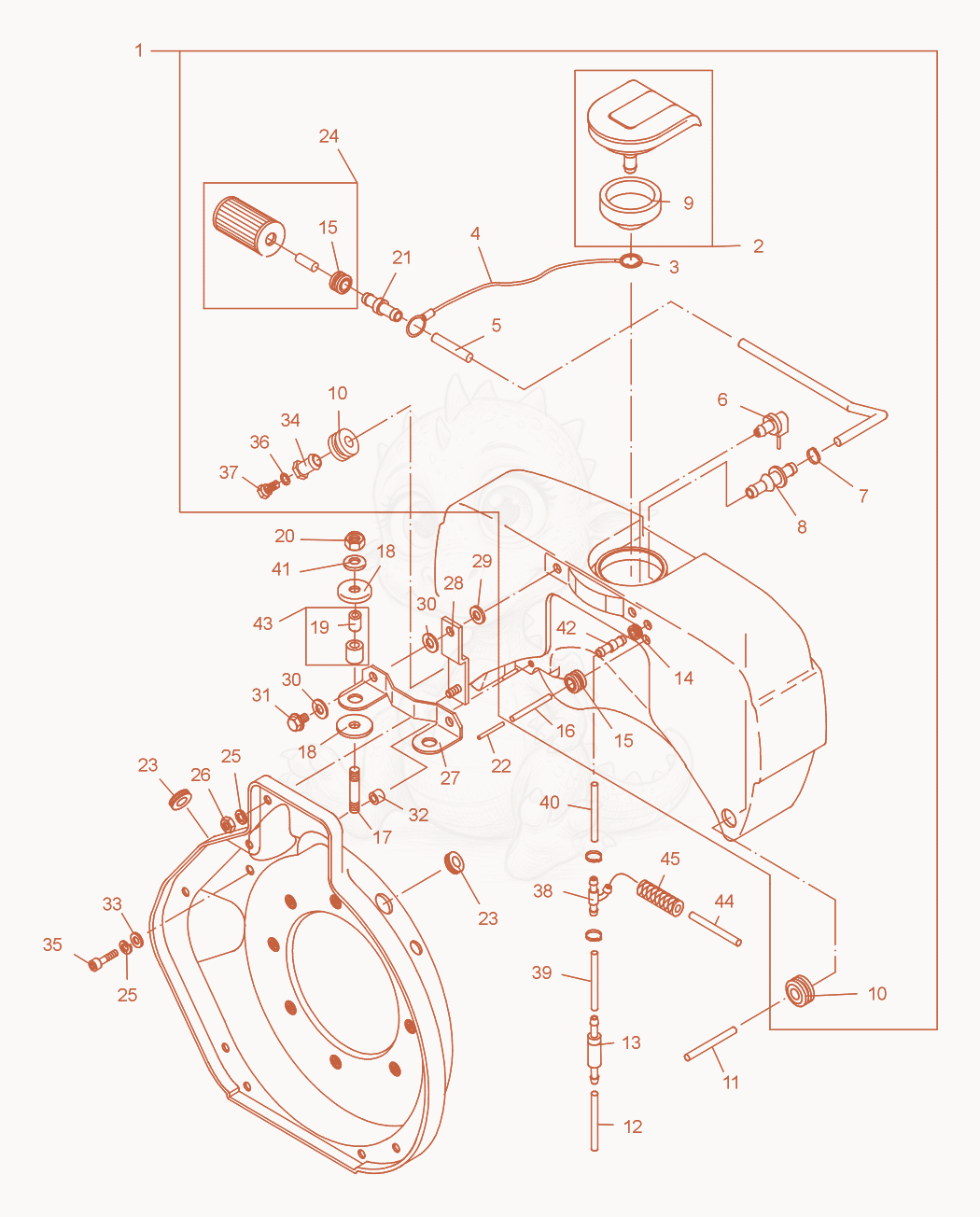

DPS1850HASPHALT Fuel Tank Diagram
- 15000128941Not stockedFuel Tank×1
- CAP-TANK,FUEL - 5000108861Unknown×1
- 25000129031Not stockedFuel Tank Cap with Loop×1
- WASHER-LOCK - 5000107398×1
- WIRE - 5000128951×1
- FUEL PIPE 3.5 X 260 - 5000128952×1
- VALVE-VENTILATION,FUEL - 5000108870×1
- CLAMP 11.3 - 5000108879×1
- FITTING-STRAIGHT - 5000128953×1
- GASKET-CAP,FUEL - 5000108864×1
- SLEEVE-RUBBER - 5000108874×2
- 115000095018Not stockedHose×1
- HOSE-FUEL 3.5 X 40 - 5000108881×1
- FITTING-STRAIGHT,BARBER,HOSE - 5000047977×1
- SLEEVE-RUBBER - 5000108885×1
- SLEEVE-RUBBER - 5000108866×2
- HOSE-BREATHER 1 X 3 X 85 - 5000108887×1
- STUD M8X25 8.8 A3C - 5000151526×2
- DISC 8.2 X 22 X 2 - 5000108892×4
- SLEEVE-INSULATING - 5000108895×2
- NUT-HEX M8 8 C3A - 5000151530×2
- FITTING-STRAIGHT - 5000128954×1
- TUBE 1.4 X 2 X 16 - 5000108888×1
- SLEEVE - 5000108889×1
- FILTER-FUEL - 5000128955×1
- WASHER-SPRING 6 A3C - 5000151456×4
- NUT-HEX M6 8 A3C - 5000151323×2
- BRACE-SUPPORT - 5000108893×1
- BRACE-SUPPORT - 5000108896×2
- DISC A6.4 A3C - 5000151540×2
- DISC 7.1 X 17.9 X 2 - 5000108791×4
- SCREW HEX HD,M6 X 16 - 5000108891×2
- DISC 6.5 X 13 X 4.8 - 5000108890×2
- WASHER-FLAT 6.4 - 5000151324×2
- Threaded Nipple - 5000128956×1
- SCREW-ALLEN, M6X16 - 5000151231×2
- SEAL-RING A6 X 10-CU - 5000128346×1
- connecting screw - 5000128958×1
- FITTING-T - 5000128959×1
- 395000128960Not stockedFuel Pipe×1
- 405000128961Not stockedFuel Pipe×1
- WASHER-FLAT 8.4 ST A3C - 5000151553×2
- FITTING-STRAIGHT - 5000128962×1
- TUBE-ASSEMBLY,INSULATING - 5000151489×2
- HOSE 25 X 195 - 5000128968×1
- 455000128963Not stockedFuel Pipe×1
