vibration plate DPS 1850H

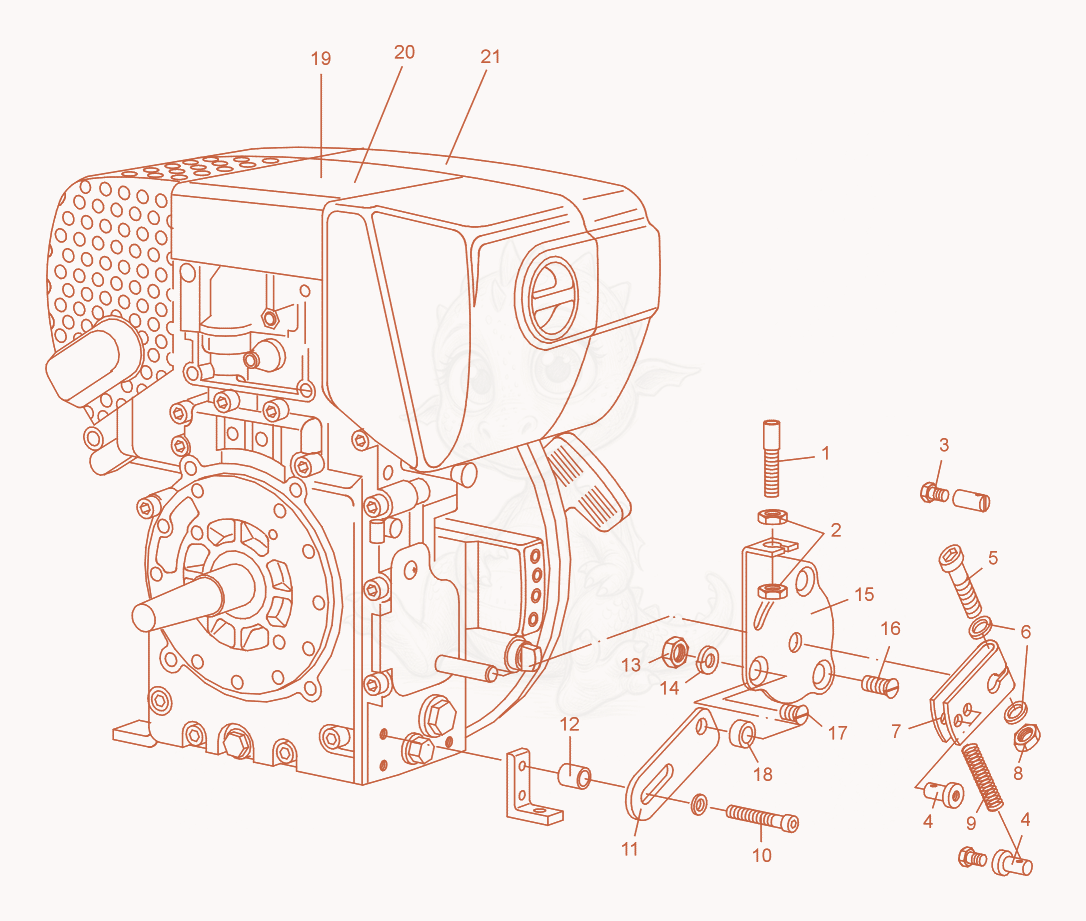

DPS1850HASPHALT Governor with Bowden Cable Diagram

Exploded parts diagram of the Governor with Bowden Cable of a Wacker Neuson DPS1850HASPHALT, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000126975Not stocked
    Adjusting screw×1
  • 25000151323
    $8.06
    NUT-HEX M6 8 A3C - 5000151323×2
  • 35000129017
    $8.06
    SCREW-HEX HD,M4X10-8.8A3C - 5000129017×2
  • 45000129018
    $16.49
    FITTING-SCREW - 5000129018×2
  • 55000129019
    $8.06
    SCREW-ALLEN HD,M5X25-8.8A3C - 5000129019×1
  • 65000129517
    $8.06
    WASHER 5.3, A3C - 5000129517×2
  • 75000109717
    $9.04
    Lever - 5000109717×1
  • 85000129020
    $8.06
    NUT M5-8 A3C - 5000129020×1
  • 95000126977Not stocked
    Compression spring×1
  • 105000126979
    $8.06
    SCREW-ALLEN M8X60 - 5000126979×1
  • 115000126980
    $28.75
    fishplate - 5000126980×1
  • 125000107843
    $20.00
    Sleeve - 5000107843×1
  • 135000129021
    $8.06
    NUT VM6 - 5000129021×1
  • 145000151218
    $8.06
    WASHER-SPRING - 5000151218×1
  • 155000126981Not stocked
    Console×1
  • 165000126982
    $8.06
    hexagonal head cap screw - 5000126982×1
  • 175000129022
    $7.47
    SCREW-COUNTERSUNK M6X12-8.8 - 5000129022×1
  • 185000063384
    $6.00
    BRACKET,DPU6055 - 5000063384×1
  • 195000124635Not stocked
    Maintenance Note Decal×1
  • 205000124636
    $15.97
    LABEL - 5000124636×1
  • 215000129791
    $10.79
    LABEL-DIESEL - 5000129791×1
