Vibration Plate DPS 1850Y

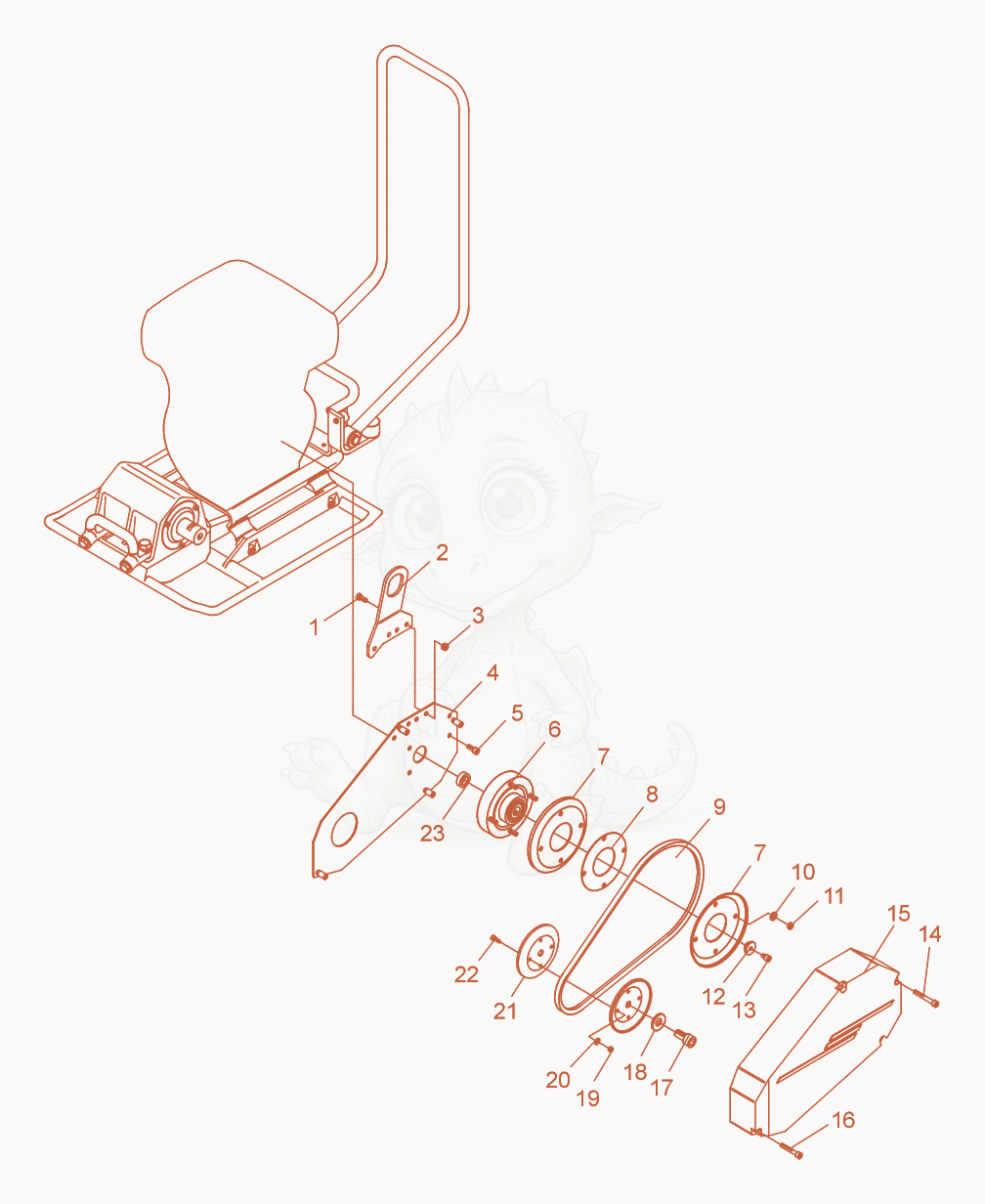

DPS1850Y Vibratory Plate cpl. Diagram

Exploded parts diagram of the Vibratory Plate cpl. of a Wacker Neuson DPS1850Y, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000013551
    $0.29
    SCREW M8 X 18 HX.HD. - 5000013551×4
  • 25000102672Not stocked
    Jack ring×1
  • 35000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×4
  • 45000099830Not stocked
    Fixing plate cpl.×1
  • 55000011543
    $0.39
    SCREW M8 X 20 SOC.HD. - 5000011543×5
  • 65000106884Not stocked
    Centrifugal clutch cpl.×1
  • 75000047280Not stocked
    V-belt pulley half×2
  • 85000047282Not stocked
    Distance washer×4
  • 95000099941Not stocked
    Narrow V-belt×1
  • 105000033198
    $0.32
    WASHER-LOCK B8 - 5000033198×4
  • 115000010882
    $0.05
    NUT M8 8,HEX - 5000010882×5
  • 125000099865Not stocked
    Bush×1
  • 135000028582
    $2.61
    SCREW 5/16-24 X 1-1/4,SOC.HD. - 5000028582×1
  • 145000013575
    $0.77
    SCREW M8 X 60 SOC.HD. - 5000013575×3
  • 155000099791Not stocked
    Belt guard×1
  • 165000011537Not stocked
    Cheese head screw×1
  • 175000044634
    $1.99
    SCREW M16 X 30 SOC.HD. - 5000044634×1
  • 185000043353
    $1.86
    WASHER-LOCK 16 - 5000043353×1
  • 195000010880
    $0.03
    NUT M6 8,HEX - 5000010880×4
  • 205000058381
    $0.13
    WASHER-LOCK 6 FST - 5000058381×4
  • 215000099828Not stocked
    V-belt pulley half×2
  • 225000011553
    $0.15
    SCREW M6 X 16 SOC.HD. - 5000011553×4
  • 235000099866Not stocked
    Bush×1
