Vibration Plate DPS 1850Y

DPS1850Y Crankcase Diagram

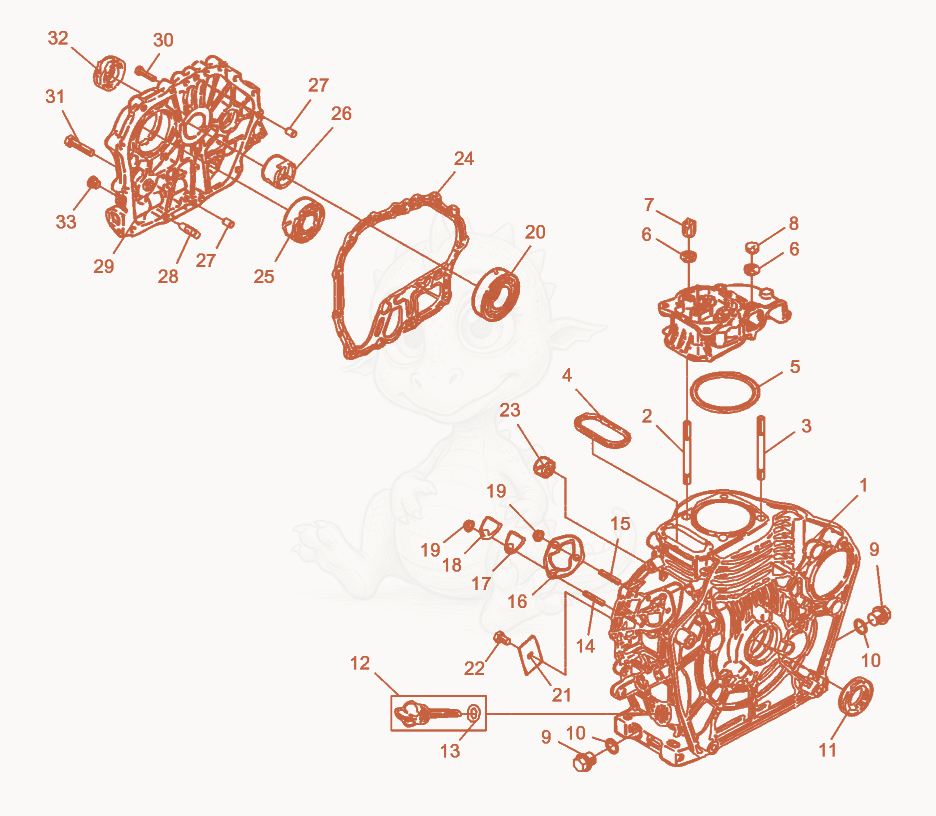

Exploded parts diagram of the Crankcase of a Wacker Neuson DPS1850Y, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

5000096724
$91.52
SET-GASKET - 5000096724×1
15000096716
$1,149.39
Crankcase - 5000096716×1
25000073597
$4.10
BOLT - 5000073597×2
35000073598
$4.10
BOLT - 5000073598×2
45000073603
$4.69
RING-RUBBER SEAL,RECT.X-SECT. - 5000073603×1
55000073602
$3.50
GASKET-CYLINDER HEAD - 5000073602×1
65000073601
$11.28
Washer - 5000073601×4
75000073600Not stocked
Nut×1
85000073599Not stocked
Nut×1
95000073606
$5.59
PLUG M16,HEX.HD. - 5000073606×2
105000073608
$4.08
WASHER-PLASTIC - 5000073608×2
115000096715
$6.64
SEAL-SHAFT - 5000096715×1
125000096713
$7.49
DIPSTICK - 5000096713×2
135000073609
$2.54
O-RING 18 X 2.2 (P-18) - 5000073609×2
145000013507
$1.01
STUD M6 X 18 - 5000013507×1
155000013508
$2.17
STUD M6 X 22 - 5000013508×2
165000073610
$7.96
SET-ENGINE SHIMS - 5000073610×1
175000073612
$2.92
GASKET - 5000073612×1
185000073611
$4.24
Cover - 5000073611×1
195000095948Not stocked
Hexagon nut×3
205002001269
$34.89
BEARING-DEEP GROOVE BALL - 5002001269×1
215000073618Not stocked
Holder×1
225000073622
$2.07
SCREW M8 X 12,HX.FLANGE - 5000073622×1
235000073621
$24.28
BEARING-NEEDLE ROLLER,152112 - 5000073621×1
245000096707
$15.73
GASKET-HOUSING - 5000096707×1
255000020313
$17.20
BEARING-RADIAL BALL,6205 - 5000020313×1
265000073619
$14.34
BEARING-SLEEVE,30MM ID - 5000073619×1
275000096704
$2.12
PIN-STRAIGHT - 5000096704×2
285000096706
$10.30
Pipe - 5000096706×1
295000102629Not stocked
Bearing cover×1
305000073614
$1.39
SCREW M6 X 25,HX.FLANGE - 5000073614×14
315000085522
$2.33
SCREW M8 X 35,HEX.FLANGE - 5000085522×1
325000073620
$8.53
SEAL-SHAFT 25 X 41.2 X 8,4B - 5000073620×1
335000102630Not stocked
Screw plug×1
