DPS2050-VIBROPLATE

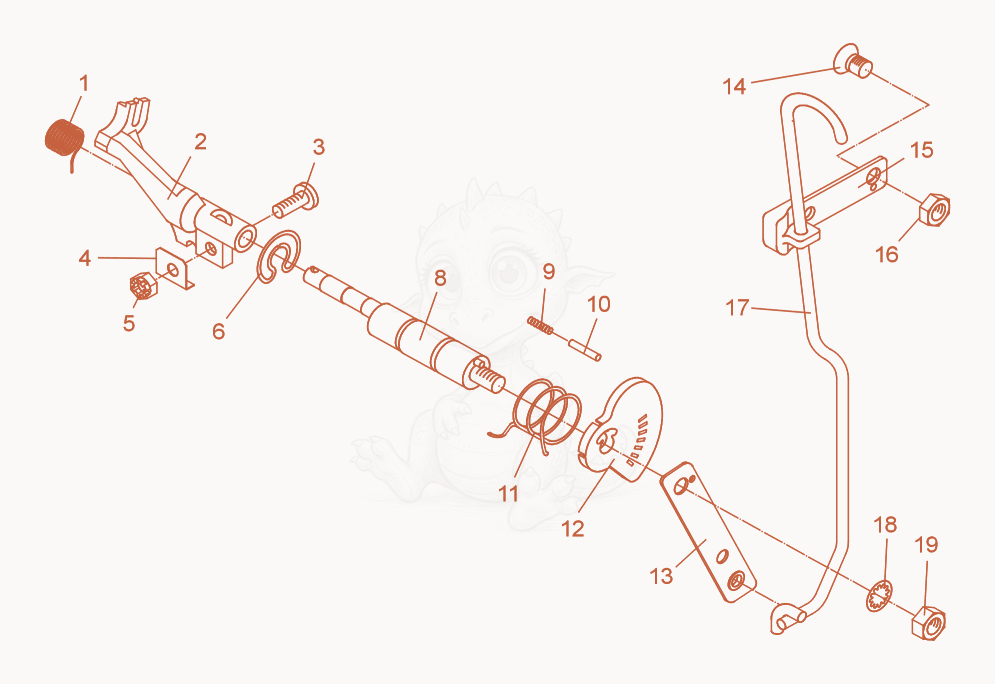

DPS2050 Eccentric Shaft Diagram

Exploded parts diagram of the Eccentric Shaft of a Wacker Neuson DPS2050, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000034345
    $2.50
    SPRING - 5000034345×1
  • 25000034344Not stocked
    Governor lever×1
  • 35000034346
    $27.97
    SCREW-ADJUSTMENT - 5000034346×1
  • 45000034347Not stocked
    Locking plate×1
  • 55000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×1
  • 65000034343
    $7.39
    RET.RING 26.3MM,FORM D - 5000034343×1
  • 75000034341Not stocked
    Eccentric shaft×1
  • 85000034342
    $8.84
    O-RING 10 X 2.2-70 Sh - 5000034342×1
  • 95000037336Not stocked
    Compression spring×1
  • 105000039976Not stocked
    Bearing needle×1
  • 115000039974
    $8.87
    SPRING-VALVE ROTATOR - 5000039974×1
  • 125000034350
    $40.29
    DISC - 5000034350×1
  • 135000034351Not stocked
    Lever×1
  • 145000020950
    $0.59
    SCREW M8 X 12 FL.HD.MCH - 5000020950×1
  • 155000039975
    $11.55
    Lever - 5000039975×1
  • 165000010805
    $0.06
    NUT-M8,JAM - 5000010805×1
  • 175000058081Not stocked
    Manual operation×1
  • 185000034275Not stocked
    Toothed lock washer×1
  • 195000010882
    $0.05
    NUT M8 8,HEX - 5000010882×1
