DPS2050-VIBROPLATE

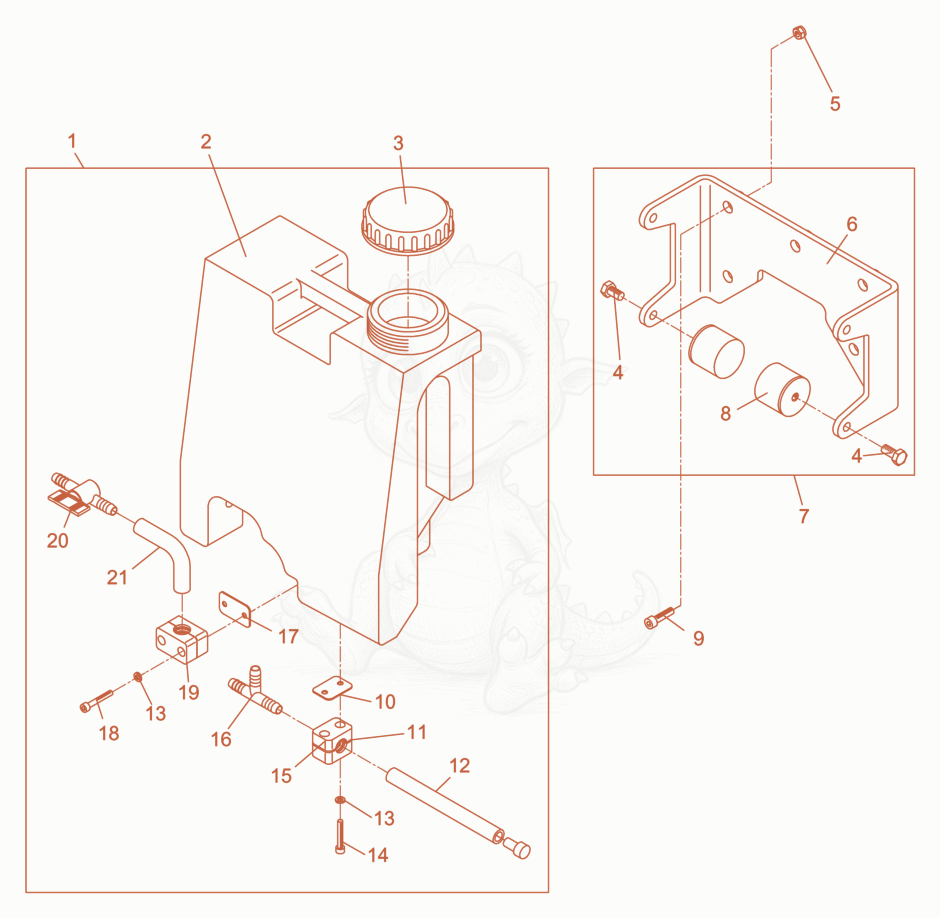

DPS2050 Spinkler System cpl. Diagram
- Watertank Cpl. 5000104044×1
- Water Tank 5000102864×1
- CAP-WATER TANK - 5000068351×1
- SCREW M10 X 18,HEX - 5000032175×4
- NUT-LOCK M8 HEX - 5000010367×5
- 65000201821Not stockedFixing device×1
- 75000106066Not stockedFixing device cpl.×1
- Stop Buffer - 5000105969×4
- SCREW M8 X 30 SOC.HD. - 5000011541×5
- Bar - 5000103546×2
- distance plate - 5000103548×4
- Jet Tube - 5000104043×2
- WASHER 6.4 - 5000010744×6
- SCREW M6 X 35 SOC.HD. - 5000011548×4
- Standard clamp - 5000103551×2
- T-Piece - 5000104041×1
- Bar - 5000103545×1
- SCREW M6 X 40 SOC.HD. - 5000011547×2
- Standard clamp - 5000103552×1
- Angular Tap - 5000103550×1
- Hose - 5000103986×1
- Locking Plug - 5000103553×2
