DPS3060Hv

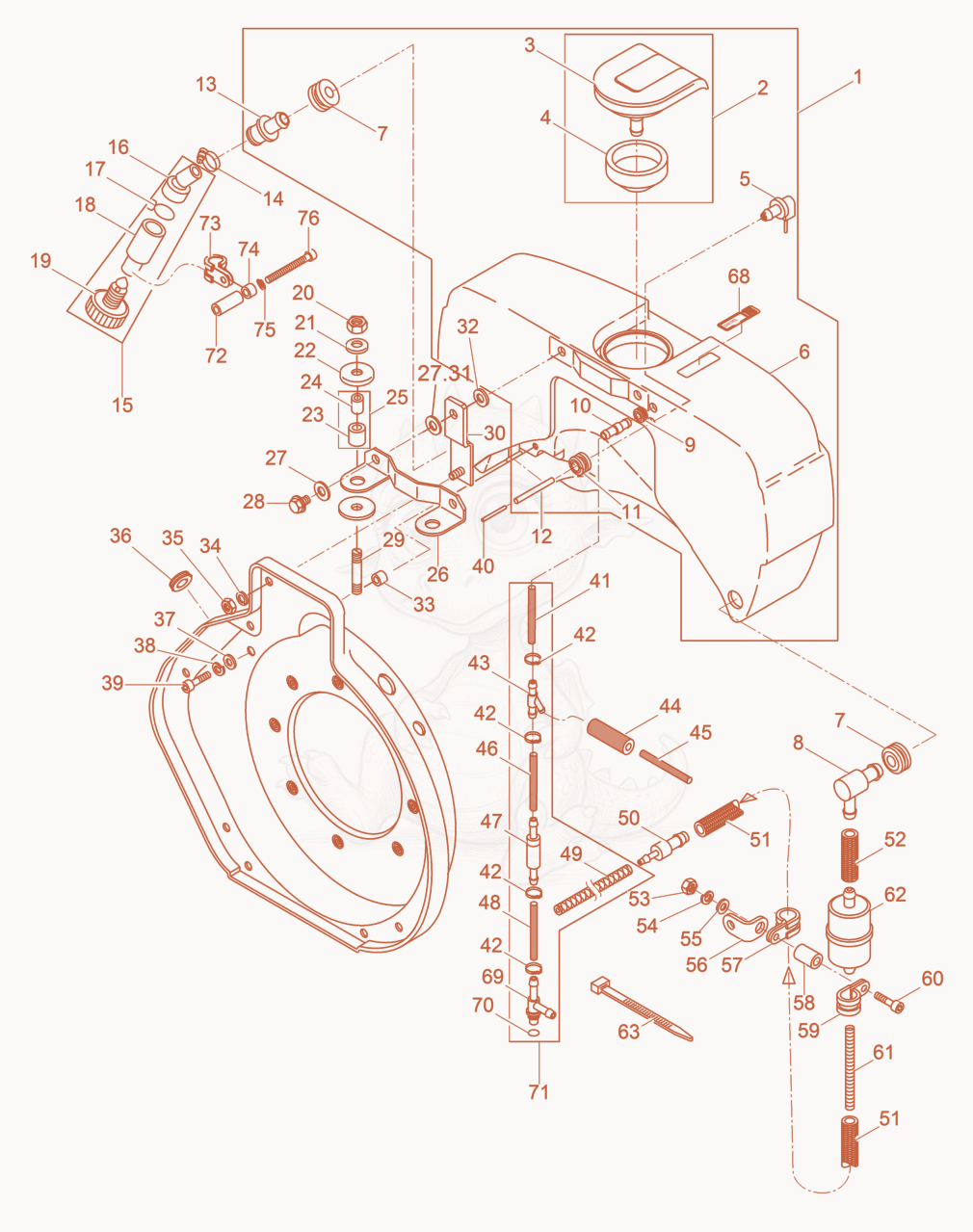

DPS3060HV Fuel System Diagram

15000209965
$1,330.58
TANK-FUEL - 5000209965×1
25000108861
$49.35
CAP-TANK,FUEL - 5000108861×1
45000108864
$21.67
GASKET-CAP,FUEL - 5000108864×1
55000108870
$39.35
VALVE-VENTILATION,FUEL - 5000108870×1
75000108874
$10.36
SLEEVE-RUBBER - 5000108874×2
85000209869
$59.51
CONNECTION SOCKET - 5000209869×1
95000108885
$14.34
SLEEVE-RUBBER - 5000108885×1
105000128962
$14.34
FITTING-STRAIGHT - 5000128962×1
115000108866
$10.36
SLEEVE-RUBBER - 5000108866×1
125000108887
$13.93
HOSE-BREATHER 1 X 3 X 85 - 5000108887×1
135000209719
$30.50
FITTING-STRAIGHT - 5000209719×1
145000202465
$24.90
clamp - 5000202465×1
155000209871
$44.81
WATER SEPERATOR COMP - 5000209871×1
165000202412
$21.67
HOSE 20 X 12MM - 5000202412×1
175000108688
$8.06
CLIP-HOSE - 5000108688×1
185000209707
$30.50
FLUID SEPARATOR-WATER - 5000209707×1
195000202461
$28.75
SCREW-M10 - 5000202461×1
205000151530
$8.06
NUT-HEX M8 8 C3A - 5000151530×2
215000151553
$7.71
WASHER-FLAT 8.4 ST A3C - 5000151553×2
225000108892
$8.06
DISC 8.2 X 22 X 2 - 5000108892×4
245000108895
$14.20
SLEEVE-INSULATING - 5000108895×2
255000151489
$21.46
TUBE-ASSEMBLY,INSULATING - 5000151489×2
265000108893
$24.90
BRACE-SUPPORT - 5000108893×1
275000108791
$8.06
DISC 7.1 X 17.9 X 2 - 5000108791×4
285000108891
$8.06
SCREW HEX HD,M6 X 16 - 5000108891×2
295000151526
$8.06
STUD M8X25 8.8 A3C - 5000151526×2
305000108896
$11.94
BRACE-SUPPORT - 5000108896×2
325000151540
$8.06
DISC A6.4 A3C - 5000151540×2
335000108890
$8.06
DISC 6.5 X 13 X 4.8 - 5000108890×2
345000151456
$8.06
WASHER-SPRING 6 A3C - 5000151456×2
355000151323
$8.06
NUT-HEX M6 8 A3C - 5000151323×2
365000108889
$10.36
SLEEVE - 5000108889×2
375000151324
$8.06
WASHER-FLAT 6.4 - 5000151324×2
385000151456
$8.06
WASHER-SPRING 6 A3C - 5000151456×2
395000151231
$8.06
SCREW-ALLEN, M6X16 - 5000151231×2
405000108888
$8.01
TUBE 1.4 X 2 X 16 - 5000108888×1
415000209966
$13.93
HOSE-FUEL - 5000209966×1
425000207586
$11.94
CLAMP-HOSE - 5000207586×4
435000128959
$11.94
FITTING-T - 5000128959×2
445000209716
$3.76
TUBE 7 X 25 - 5000209716×2
455000128968
$21.04
HOSE 25 X 195 - 5000128968×1
465000207528
$10.09
HOSE-FUEL LINE - 5000207528×1
475000047977
$21.67
FITTING-STRAIGHT,BARBER,HOSE - 5000047977×1
485100003877
$9.04
Fuel Pipe - 5100003877×1
495000095018Not stocked
Hose×1
505000209876
$17.38
NIPPLE - 5000209876×1
515000209877
$33.80
HOSE-FUEL - 5000209877×1
525000209967
$13.93
HOSE-FUEL - 5000209967×1
535000151323
$8.06
NUT-HEX M6 8 A3C - 5000151323×1
545000151456
$8.06
WASHER-SPRING 6 A3C - 5000151456×1
555000151324
$8.06
WASHER-FLAT 6.4 - 5000151324×1
565000209879
$8.06
BRACKET - 5000209879×1
575000107451
$11.94
Clamp - 5000107451×1
585000108852
$11.94
TUBE-SPACING 6.5X12X18 - 5000108852×1
595000107451
$11.94
Clamp - 5000107451×1
605000209880
$8.06
SCREW-HEX - 5000209880×1
615000106564
$6.00
Spring - 5000106564×1
625000022832
$14.90
FILTER-ENGINE FUEL,DIESEL - 5000022832×1
635000109710Not stocked
Tie cable×2
685000129791
$10.79
LABEL-DIESEL - 5000129791×1
695000209682
$36.91
T-FITTING - 5000209682×1
705000071130
$7.02
O-RING 7.5 X 10.5 X 1.5 - 5000071130×1
715000209968
$155.65
HOSE-FUEL COMPLETE - 5000209968×1
725000054291Not stocked
Spacer×1
735200022037Not stocked
Clip×1
745100039000Not stocked
Bush×1
755000151456
$8.06
WASHER-SPRING 6 A3C - 5000151456×1
765100037722Not stocked
Cheese head screw×1
