DPS3060Hv

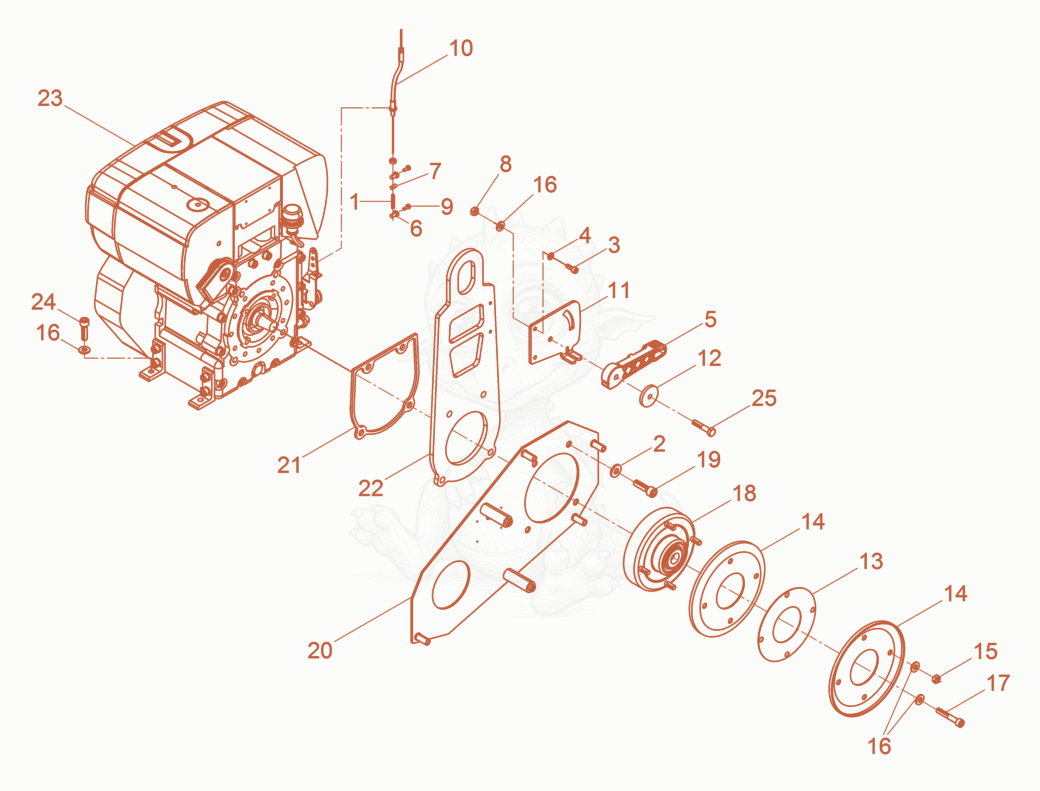

DPS3060HV Diesel Engine cpl. Diagram

Exploded parts diagram of the Diesel Engine cpl. of a Wacker Neuson DPS3060HV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000212534
    $1.51
    SPRING-PRESSURE - 5000212534×1
  • 25000033988
    $0.41
    WASHER-LOCK 10 - 5000033988×4
  • 35000011553
    $0.15
    SCREW M6 X 16 SOC.HD. - 5000011553×1
  • 45000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×1
  • 55000203537Not stocked
    Governor lever×1
  • 65000212532
    $3.89
    NIPPLE,SCREW-IN - 5000212532×2
  • 75000212531
    $1.77
    NIPPLE,SCREW-IN - 5000212531×1
  • 85000033356
    $0.13
    NUT-LOCK VM8 HEX - 5000033356×1
  • 95000124429
    $0.13
    hexagonal head cap screw - 5000124429×2
  • 105000125809
    $13.97
    CABLE-BOWDEN - 5000125809×1
  • 115100016641Not stocked
    Bearing×1
  • 125000105194
    $1.51
    WASHER M8 X 1.5 - 5000105194×1
  • 135000047282Not stocked
    Distance washer×5
  • 145000047280Not stocked
    V-belt pulley half×2
  • 155000010882
    $0.05
    NUT M8 8,HEX - 5000010882×4
  • 165000033198
    $0.32
    WASHER-LOCK B8 - 5000033198×10
  • 175000011537Not stocked
    Cheese head screw×1
  • 185000108162
    $429.20
    Centrifugal clutch - 5000108162×1
  • 195000011533
    $1.21
    SCREW M10 X 35 SOC.HD. - 5000011533×4
  • 205100016629Not stocked
    Fixing plate cpl.×1
  • 215000108275Not stocked
    Adaptor×1
  • 225000201565Not stocked
    Lifting point×1
  • 235000220359Not stocked
    Diesel engine×1
  • 245000011542
    $0.37
    SCREW M8 X 25 SOC.HD. - 5000011542×4
  • 255000011341
    $0.36
    SCREW M8 X 40 HX.HD. - 5000011341×1
