DPU2950Y-VIBROPLATE

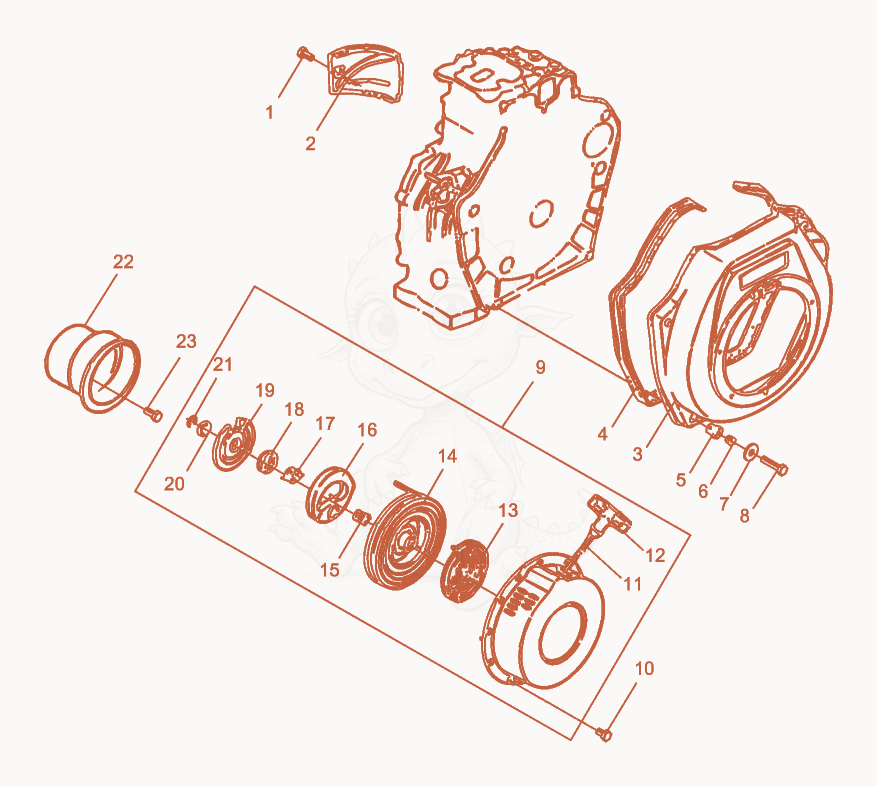

DPU2950Y Rewind Starter Diagram
- 15000053658Not stockedHexagonal head cap screw×1
- GUIDE-AIR - 5000096786×1
- COVER-FAN - 5000096787×1
- MOLDING-RUBBER STRIP - 5000073760×1
- GROMMET .390 ID,TAPERED,RUBBER - 5000073758×4
- RING-COLLAR - 5000073759×4
- WASHER B6.4 FLAT - 5000010373×4
- SCREW M6 X 25,HX.FLANGE - 5000073762×4
- STARTER - 5000073764×1
- 105000030814Not stockedScrew×4
- ROPE - 5000073777×1
- KNOB - 5000073776×1
- SPRING - 5000073768×1
- REEL - 5000073766×1
- Spring - 5000073770×1
- RATCHET-PAWL - 5000073767×1
- SPRING - 5000073771×1
- COVER - 5000073772×1
- PLATE - 5000073773×1
- Washer - 5000073769×1
- RET.RING-EXT 6MM,E-TYP - 5000033724×1
- PULLEY - 5000073778×1
- SCREW M6 X 12,HX.FLANGE - 5000072333×3
