DPU 3060H-TS-VIBROPLATE

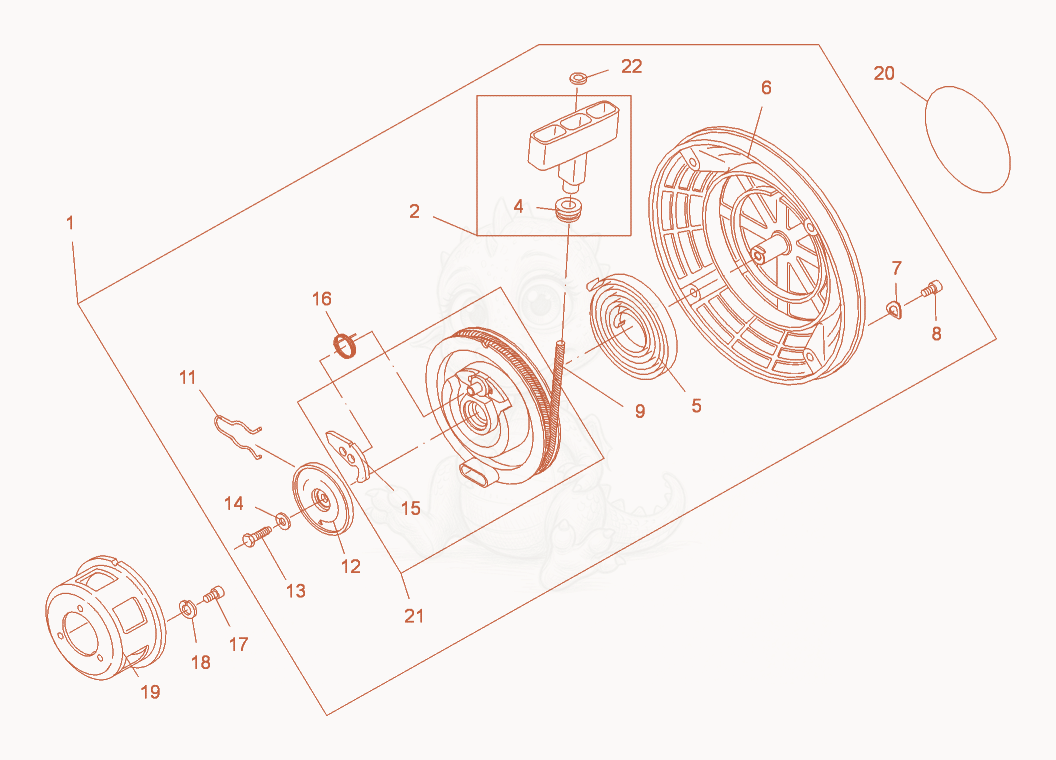

DPU3060H-TS Rewind Starter Diagram

Exploded parts diagram of the Rewind Starter of a Wacker Neuson DPU3060H-TS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000108825Not stocked
    Starter assembly×1
  • 25000108830
    $37.53
    HANDLE-STARTER,RECOIL - 5000108830×1
  • 45000058711
    $10.05
    GROMMET .390 ID,TAPERED,RUBBER - 5000058711×1
  • 55000108827
    $93.98
    SPRING-RETURN - 5000108827×1
  • 65000108826
    $177.55
    HOUSING-STARTER,RECOIL - 5000108826×1
  • 75000151290
    $5.53
    WASHER-SPRING, A6 - 5000151290×4
  • 85000151448
    $8.06
    SCREW-ALLEN M6X10 8.8 - 5000151448×4
  • 95000108828Not stocked
    Rope×1
  • 115000108831
    $16.49
    SPRING-BRAKE - 5000108831×1
  • 125000108834
    $16.34
    DISC-BRAKE - 5000108834×1
  • 135000151452
    $8.06
    SCREW-HEX M6X18 8.8 A3C - 5000151452×1
  • 145000099521
    $7.47
    Washer - 5000099521×1
  • 155000108833
    $24.90
    RATCHET-STARTER,RECOIL - 5000108833×1
  • 165000108832
    $11.94
    SPRING-RETURN - 5000108832×1
  • 175000151448
    $8.06
    SCREW-ALLEN M6X10 8.8 - 5000151448×3
  • 185000151456
    $8.06
    WASHER-SPRING 6 A3C - 5000151456×3
  • 195000108835
    $45.23
    SLEEVE-DRIVING - 5000108835×1
  • 205000108824
    $15.97
    LABEL - 5000108824×1
  • 215000069666
    $111.87
    PULLEY-ROPE - 5000069666×1
  • 225000129008
    $8.06
    WASHER-5,3 PA6.6 - 5000129008×1
