DPU 3750Hets

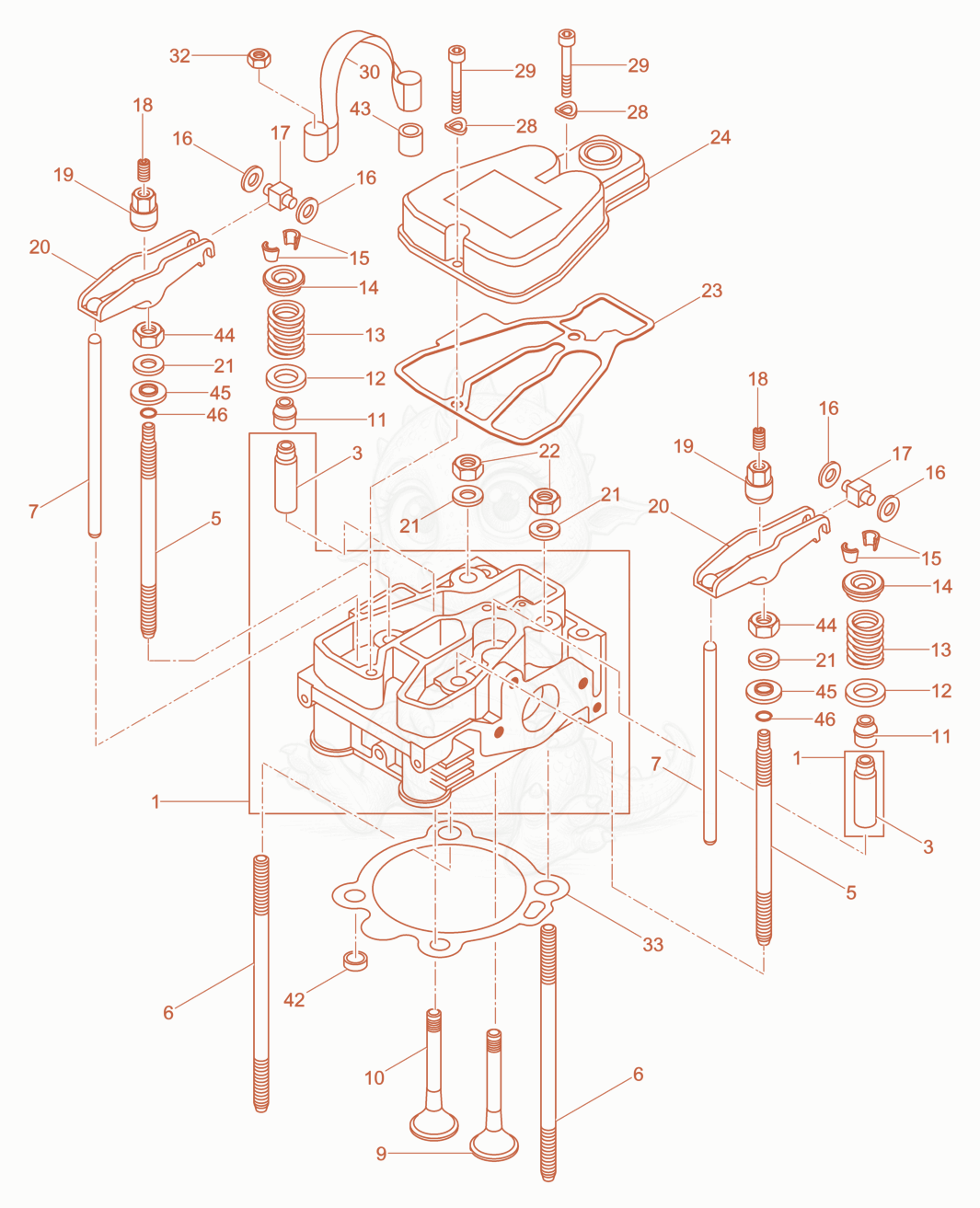

DPU3750HETS Cylinder head Diagram

Exploded parts diagram of the Cylinder head of a Wacker Neuson DPU3750HETS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100073068Not stocked
    Cylinder head×1
  • 35000151270
    $45.22
    GUIDE-VALVE - 5000151270×2
  • 55000151271
    $26.13
    STUD-HEAD,CYLINDER 141MM - 5000151271×2
  • 65000151272
    $25.12
    STUD-HEAD,CYLINDER 128MM - 5000151272×2
  • 75000151273
    $25.12
    ROD-PUSH - 5000151273×2
  • 95000151275
    $55.01
    VALVE-INLET - 5000151275×1
  • 105000151276
    $62.53
    VALVE-EXHAUST - 5000151276×1
  • 115100013781Not stocked
    Gasket×2
  • 125100038980Not stocked
    Washer×2
  • 135000151279
    $11.30
    SPRING-VALVE - 5000151279×2
  • 145000108735
    $36.45
    PLATE-SPRING - 5000108735×2
  • 155000108734
    $16.49
    HOLDER-PLATE,SPRING - 5000108734×2
  • 165000108730
    $8.06
    DISC-SUPPORT, 6X12X1.2 - 5000108730×1
  • 165000202301
    $8.06
    WASHER 6 X 12 X 1.35 - 5000202301×1
  • 175000108731
    $24.90
    SLIDER - 5000108731×2
  • 185000129001
    $8.06
    SCREW-SET,M8X10 - 5000129001×2
  • 195000108732
    $51.90
    NUT-ROCKER ARM - 5000108732×2
  • 205000151286
    $47.23
    Rocker arm - 5000151286×2
  • 215000151287
    $11.30
    WASHER 8.4X18X3 - 5000151287×4
  • 225000202334
    $8.06
    NUT M10 DIN934,HEX - 5000202334×2
  • 235000227677
    $25.00
    Gasket - 5000227677×1
  • 245000227676
    $59.40
    COVER-CYLINDER HEAD - 5000227676×1
  • 285000151290
    $5.53
    WASHER-SPRING, A6 - 5000151290×2
  • 295000129002
    $8.06
    SCREW-PAN HD,M6X35-8.8A3C - 5000129002×2
  • 305000151292
    $19.59
    STRAP-LIFTING - 5000151292×1
  • 325100073076Not stocked
    Hexagon nut BM10×2
  • 335000151294
    $11.30
    GASKET-HEAD,0.3MM - 5000151294Unknown×1
  • 335000151295
    $11.30
    GASKET-HEAD,0.4MM - 5000151295Unknown×1
  • 335000151296
    $27.64
    GASKET-HEAD,0.5MM - 5000151296Unknown×1
  • 335000151297
    $32.14
    GASKET-HEAD,0.6MM - 5000151297Unknown×1
  • 335000151298
    $29.65
    GASKET-HEAD,0.7MM - 5000151298Unknown×1
  • 335000151299
    $29.65
    GASKET-HEAD,0.8MM - 5000151299Unknown×1
  • 335000151300
    $30.63
    GASKET-HEAD,0.9MM - 5000151300Unknown×1
  • 335000151301
    $46.28
    GASKET-HEAD,1.0MM - 5000151301Unknown×1
  • 335000209852Not stocked
    Cylinder head gasket×1
  • 335000209853Not stocked
    Cylinder head gasket×1
  • 335000209854Not stocked
    Cylinder head gasket×1
  • 425000209696
    $16.49
    Seal ring - 5000209696×2
  • 435000151274
    $5.53
    BUSHING 10X12X9 - 5000151274×2
  • 445000202334
    $8.06
    NUT M10 DIN934,HEX - 5000202334×2
  • 455000205486
    $32.98
    DISC - 5000205486×2
  • 465000205485
    $7.02
    O-RING 1O X 2.5 - 5000205485×2
