DPU 3750Hets

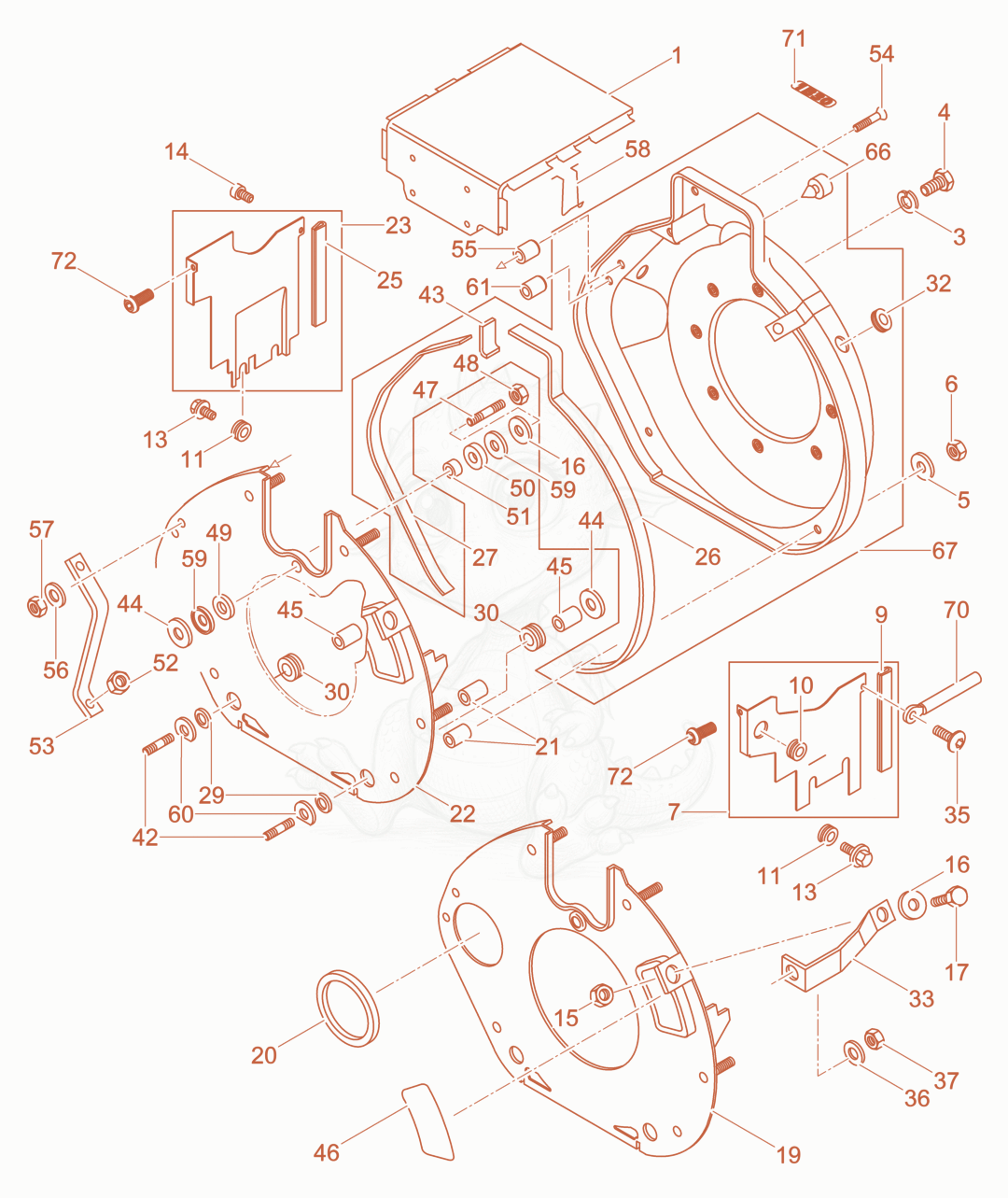

DPU3750HETS Air Ducting Diagram
- HOOD - 5000151460×1
- WASHER-SPRING 6 A3C - 5000151456×1
- SCREW-HEX M6X18 8.8 A3C - 5000151452×1
- DISC A6.4 A3C - 5000151540×2
- 65100038987Not stockedHexagon nut×6
- 75100073070Not stockedAir duct plate cpl.×1
- SEAL-STRIP,80MM - 5000151467×1
- Grommet - 5000107379×1
- SLEEVE-RUBBER - 5000108842×3
- SCREW-HEX M4 X 10 - 5000108844×3
- 145100038983Not stockedCountersunk screw×3
- NUT-HEX M6 8 A3C - 5000151323×1
- WASHER 6.4 - 5000107401×2
- SCREW M6 X 16 DIN933,HEX - 5000202338×1
- 195000217590Not stockedBaffle plate×1
- 205000217605Not stockedSeal ring×1
- BUSHING - 5000202339×4
- PLATE-BACK,BLOWER HOUSING - 5000151477×1
- DUCT-AIR - 5000108859×1
- SEAL-STRIP 119MM - 5000151479×1
- SEAL-STRIP 530MM - 5100016532×1
- SEAL-STRIP 388MM - 5000108857×1
- RING-SEALING - 5000107800×2
- SPACER-BUSHING - 5000209664×2
- SLEEVE-RUBBER - 5000108838×1
- BRACKET - 5000202341×1
- 355100038983Not stockedCountersunk screw×1
- 365200022048Not stockedSpring washer×1
- NUT M8 8 A3C - 5000151379×1
- STUD M6X45,8.8 A3C - 5000108850×2
- seal - 5000202342×1
- WASHER 6.5 X 22.5 X 1 - 5000108851×3
- BUSHING 7X12X16.3 - 5000151486×2
- CAP - 5000202350×1
- 475100038988Not stockedStud×1
- NUT VM6 - 5000129021×1
- WASHER 16X25X4 - 5000151497×1
- DISC 16X25X8 - 5000151498×1
- SPACER 6.5X17X11.5 - 5000151447×1
- NUT M8 8 A3C - 5000151379×1
- BRACE-SUPPORT - 5000151485×1
- SCREW M6X35,8.8 A3C - 5000108929×1
- BUSHING - 5000202344×1
- WASHER-SPRING 6 A3C - 5000151456×1
- NUT-HEX M6 8 A3C - 5000151323×1
- CLIP-SPRING - 5000151289×1
- 595100062321Not stockedWasher×2
- DISC - 5000151482×2
- BUSHING - 5000202344×1
- 665100038989Not stockedGrommet×1
- fan cowl - 5100006061×1
- Clamp - 5000097590×1
- 715100038990Not stockedLabel×1
- 725100038983Not stockedCountersunk screw×2
