DPU4045H-VIBROPLATE,DIESEL

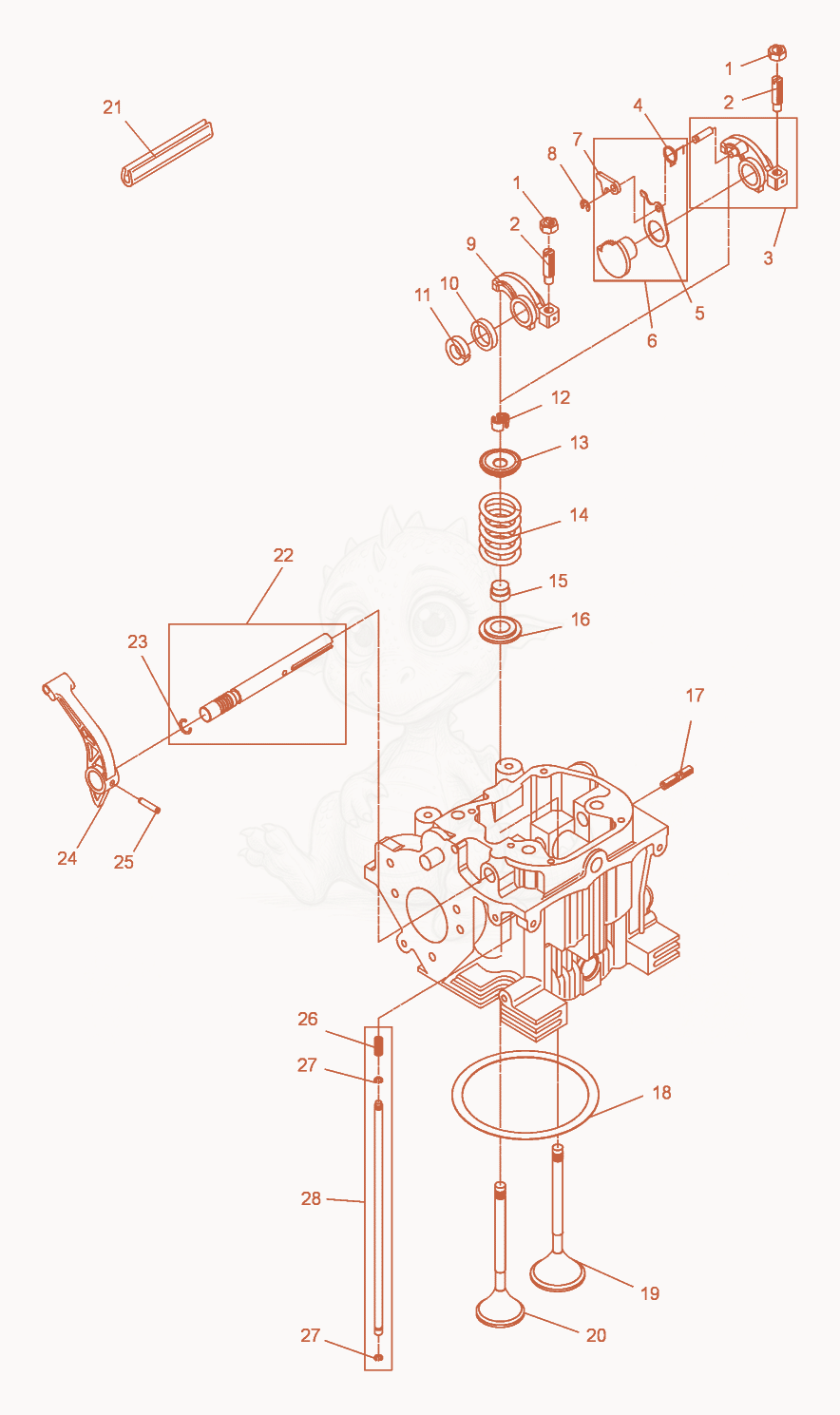

DPU4045H Cylinder Head-Valve Diagram
- NUT-LOCK 5/16X24 - 5004101500×2
- SCREW-ADJUSTING - 5000094891×2
- ROCKER ARM EXHAUST - 5000098448×1
- Spring - 5000094894×1
- HOLDER - 5000094895×1
- GEAR SEGMENT - 5000126917×1
- RATCHET-PAWL - 5000094897×1
- RET.RING-EXT 4MM,E TYP - 5002006160×1
- ROCKER ARM INTAKE - 5000098449×1
- 105000104388Not stockedWasher×2
- RET.RING - 5000104389×2
- SET-VALVE CONES - 5000047964×2
- PLATE-SPRING - 5000104369×2
- SPRING-VALVE - 5000104370×2
- Seal - 5000104371×2
- 165000094902Not stockedWasher×2
- 175000013505Not stockedStud bolt×1
- SEAL 0.3MM - 5000104377×1
- SEAL 1.3MM - 5000104387×1
- SEAL 1.2MM - 5000104386×1
- SEAL 1.1MM - 5000104385×1
- SEAL 1.0MM - 5000104384×1
- SEAL 0.9MM - 5000104383×1
- SEAL 0.8MM - 5000104382×1
- SEAL 0.7MM - 5000104381×1
- SEAL 0.6MM - 5000104380×1
- SEAL 0.5MM - 5000104379×1
- SEAL 0.4MM - 5000104378×1
- VALVE-EXHAUST - 5000104376×1
- VALVE-INTAKE - 5000104375×1
- MOLDING-RUBBER - 5000104390×1
- SHAFT ROCKER - 5000106565×1
- O-RING 8X2 - 5000108801×1
- LEVER-DECOMPRESSION - 5000094909×1
- SLEEVE-DOWEL,SPR.4X22 - 5000020183×1
- Spring - 5000094903×1
- O-Ring - 5000094905×2
- TUBE-OIL - 5000104373×1
