DPU4045H-VIBROPLATE,DIESEL

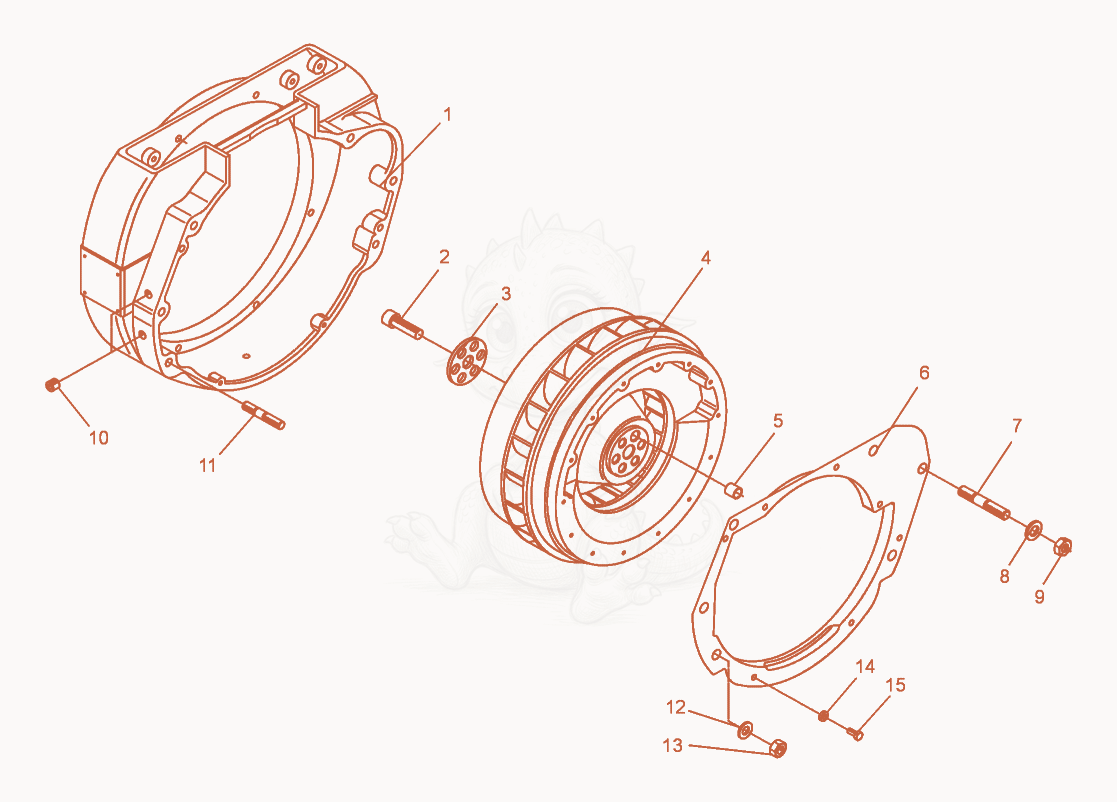

DPU4045H Fly Wheel Diagram
- HOUSING-FLYWHEEL - 5000104425×1
- SCREW M10 X 40 10.9.BK - 5000043811×6
- DISK - 5000104429×1
- Flywheel - 5000105770×1
- SLEEVE - 5000104427×1
- BAFFLE - 5000105771×1
- STUD M12 X 40 - 5000010937×2
- WASHER B13 FLAT - 5000010620×2
- NUT M12 8,HEX - 5000010884×2
- PLUG M12 X 1.5 - 5000011056×2
- STUD M10 X 35 - 5000010933×4
- WASHER B10.5 FLAT - 5000010621×4
- NUT M10 8,HEX - 5000010883×4
- WASHER-LOCK B6 - 5000010649×2
- SCREW M6 X 12 HX.HD. - 5000012357×2
