vibration plate DPU 4045Y

DPU4045Y Centrifugal Clutch cpl. Diagram

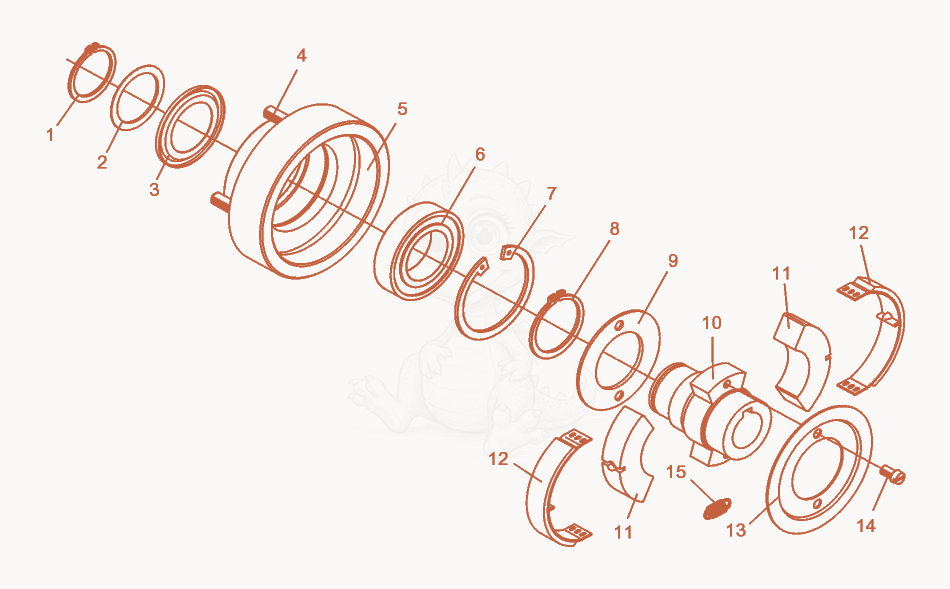

Exploded parts diagram of the Centrifugal Clutch cpl. of a Wacker Neuson DPU4045Y, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15002003022
    $0.43
    RET.RING-EXT 35MMX1.5MM, - 5002003022×1
  • 25000059743
    $0.22
    SHIM-RING,35 X 45 X .5,D988 - 5000059743×1
  • 35002004336
    $7.69
    GASKET- NILOS-RING - 5002004336×1
  • 45000046538
    $0.84
    SCREW-SET M8 X 30 SOC. - 5000046538×4
  • 55000059742
    $162.88
    HOUSING-COMPLETE,CLUTCH - 5000059742×1
  • 65000047510
    $37.55
    BEARING-RADIAL BALL,6007 - 5000047510×1
  • 75002001042
    $0.73
    RET.RING-INT 62MMX2MM, - 5002001042×1
  • 85002004474
    $0.94
    RET.RING-EXT 40MMX1.7MM, - 5002004474×1
  • 95000059740
    $6.19
    DISC - 5000059740×1
  • 105000059744
    $288.07
    HUB-CLUTCH,CENTRIFUGAL - 5000059744×1
  • 115000059738
    $24.77
    WEIGHT-CENTRIFUGAL CLUTCH - 5000059738×2
  • 125000022861
    $25.17
    INSERT-WEIGHT HOLDER - 5000022861×2
  • 135000059741Not stocked
    Cover washer×1
  • 145000011706
    $8.06
    SCREW M6 X 10 CHEESE HD. - 5000011706×2
  • 155000059739
    $3.41
    SPRING-CLUTCH - 5000059739×2
