vibration plate DPU 4045Y

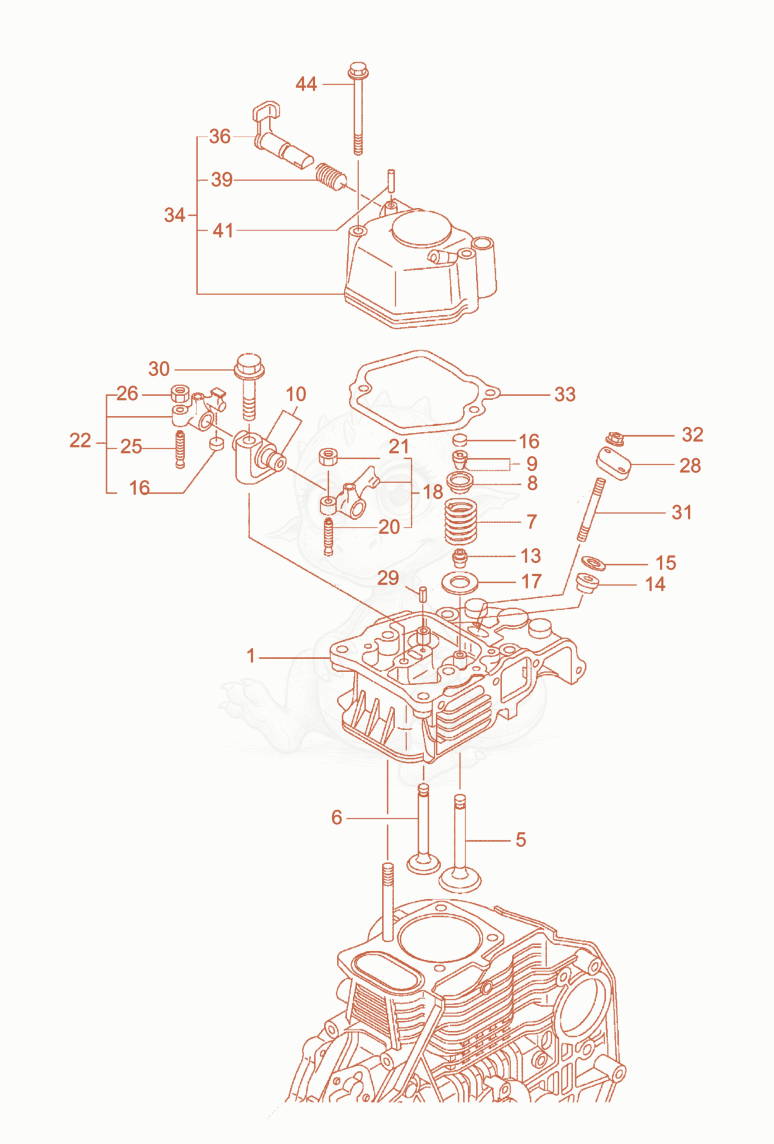

DPU4045Y Cylinder head Diagram
- CYLINDER HEAD ASSY - 5000210493×1
- VALVE-INTAKE - 5000085539×1
- VALVE-EXHAUST - 5000085540×1
- SPRING-VALVE - 5000210494×2
- HOLDER-SPRING - 5000085543×2
- SET-VALVE CONES - 5000085544×2
- SUPPORT-ROCKER ARM - 5000073629×1
- SEAL - 5000085541×2
- GASKET - 5000073632×1
- SPACER - 5000073633×1
- CAP - 5000085537×2
- Washer - 5000073634×2
- Rocker arm inlet - 5000096763×1
- CONTROL-ADJUSTING SCREW - 5000096764×1
- NUT-LOCK - 5000119736×1
- ROCKER ARM-EXHAUST - 5000085546×1
- CONTROL-ADJUSTING SCREW - 5000096764×1
- NUT-LOCK - 5000119736×1
- RETAINER-NOZZLE - 5000210495×1
- PIN 4 X 8 - 5000073641×1
- SCREW M8 X 45,HEX.FLANGE - 5000085536×1
- STUD M6 X 50 - 5000073636×2
- NUT-M6 - 5000119722×2
- GASKET - 5000073643×1
- 345000210496Not stockedCover×1
- SHAFT ASSEMBLY - 5000073646×1
- spring - 5000085535×1
- PIN 3 X 16 - 5000073648×1
- SCREW M6 X 55,HX.FLANGE - 5000073647×2
