DPU4045YEHZF Vibration Plate Diagram

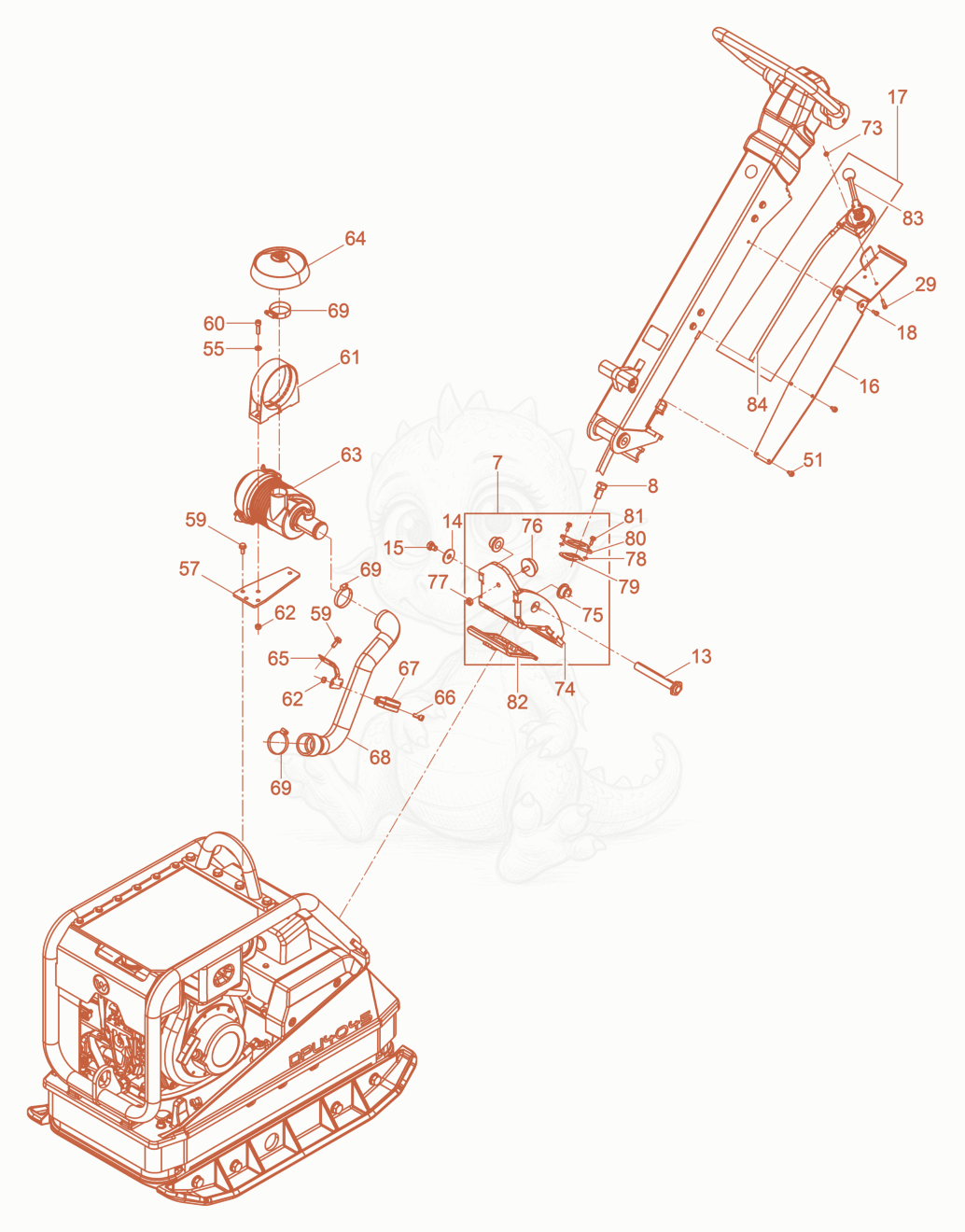

Exploded parts diagram of the Vibration Plate of a Wacker Neuson DPU4045YEHZF, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

75100010938
$599.93
Support cpl. - 5100010938×1
85000011523
$1.08
SCREW M16 X 30 HX.HD. - 5000011523×4
135100009632
$33.17
Axle - 5100009632×1
145000010376
$0.29
WASHER A13 FLAT - 5000010376×1
155000014316
$0.98
SCREW M12 X 16 HX.HD. - 5000014316×1
165100009950
$240.19
Cover Plate cpl. - 5100009950×1
175100041159
$289.78
Control - 5100041159×1
185000011553
$0.15
SCREW M6 X 16 SOC.HD. - 5000011553×2
295000011550
$0.09
SCREW M6 X 25 SOC.HD. - 5000011550×2
515000204408
$0.35
screw - 5000204408×4
555000010374
$0.22
WASHER B8.4 FLAT - 5000010374×2
575100022097Not stocked
Bracket×1
605000011541
$1.06
SCREW M8 X 30 SOC.HD. - 5000011541×2
611000231539
$13.02
bracket airfilter - 1000231539×1
625000033356
$0.13
NUT-LOCK VM8 HEX - 5000033356×4
635100021393Not stocked
Air Cleaner×1
645100021394Not stocked
Rain cap×1
655100031224Not stocked
Angle×1
665000011543
$0.39
SCREW M8 X 20 SOC.HD. - 5000011543×2
675100022155Not stocked
Pipe clamp×1
685100021399Not stocked
Suction hose×1
695000058009Not stocked
Worm drive hose clip×3
735000010880
$0.03
NUT M6 8,HEX - 5000010880×2
745100003725
$382.71
Support - 5100003725×1
755100051256
$14.23
BUSHING 2 - 5100051256×2
765100005558
$11.90
Shockmount 50 x 18 M10 x 20 - 5100005558×1
775000010883
$0.29
NUT M10 8,HEX - 5000010883×1
785000010624
$0.03
WASHER B6.4 FLAT - 5000010624×2
795100010504
$7.38
Gasket - 5100010504×1
805100010505
$23.94
Plate - 5100010505×1
815000204408
$0.35
screw - 5000204408×2
825100010503
$16.09
Profiled joint - 5100010503×1
835100049610
$186.47
Throttle - 5100049610×1
845100049577
$69.91
Control - 5100049577×1
