Vibration Plate DPU4045Yehzf

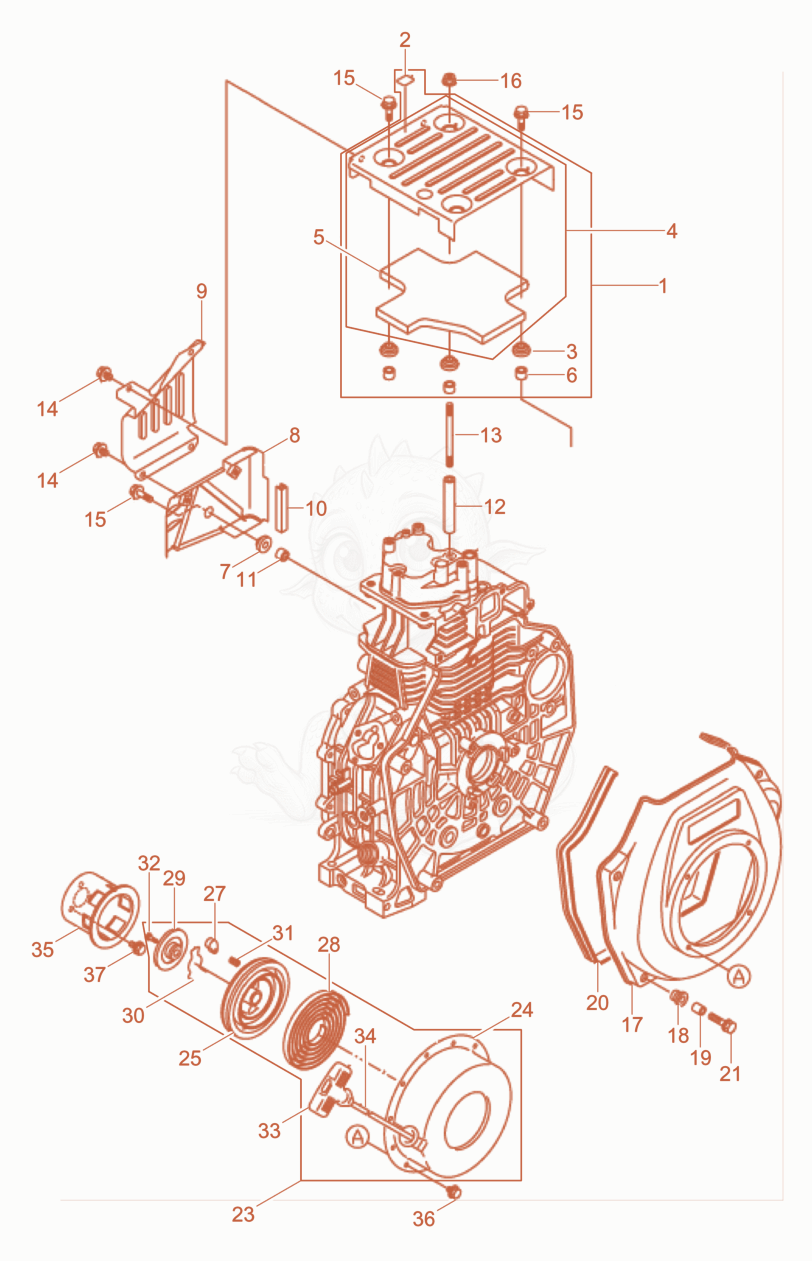

DPU4045YEHZF Starter Diagram
- 15100000747Not stockedCovering cpl.×1
- 25100000743Not stockedLabel×1
- Grommet - 5000085593×4
- 45100000738Not stockedCovering×1
- 55100000739Not stockedSilencing foam×1
- Bushing - 5000085594×4
- Grommet - 5000217901×1
- 85100000736Not stockedCovering×1
- Covering - 5100000737×1
- Gasket - 5000217920×1
- Sleeve - 5000210540×1
- Spacer - 5000217867×1
- Threaded bolt - 5000217868×1
- BOLT-M6 X 8 - 5000119905×4
- BOLT M6X20 - 5000150361×4
- NUT-M6 - 5000119722×1
- Housing - 5100000735×1
- Grommet - 5000213238×4
- COLLAR,FAN CASE - 5000210542×4
- Gasket - 5100000751×1
- BOLT - 5000213240×4
- RECOIL STARTER,D,ASSY - 5000210544×1
- COVER,STARTER - 5000210545×1
- Pulley - 5000217921×1
- Ratchet - 5000213252×1
- SPRING,SPIRAL - 5000210548×1
- COVER,RATCHET - 5000210549×1
- spring - 5000210550×1
- SPRING-RETURN - 5000210551×1
- screw - 5000210552×1
- KNOB-STARTER - 5000210553×1
- ROPE-STARTER - 5000210554×1
- PULLEY-STARTER - 5000210555×1
- BOLT-M6 X 8 - 5000119905×4
- BOLT-M6 X 12 - 5000119897×3
