DPU4545HECH US

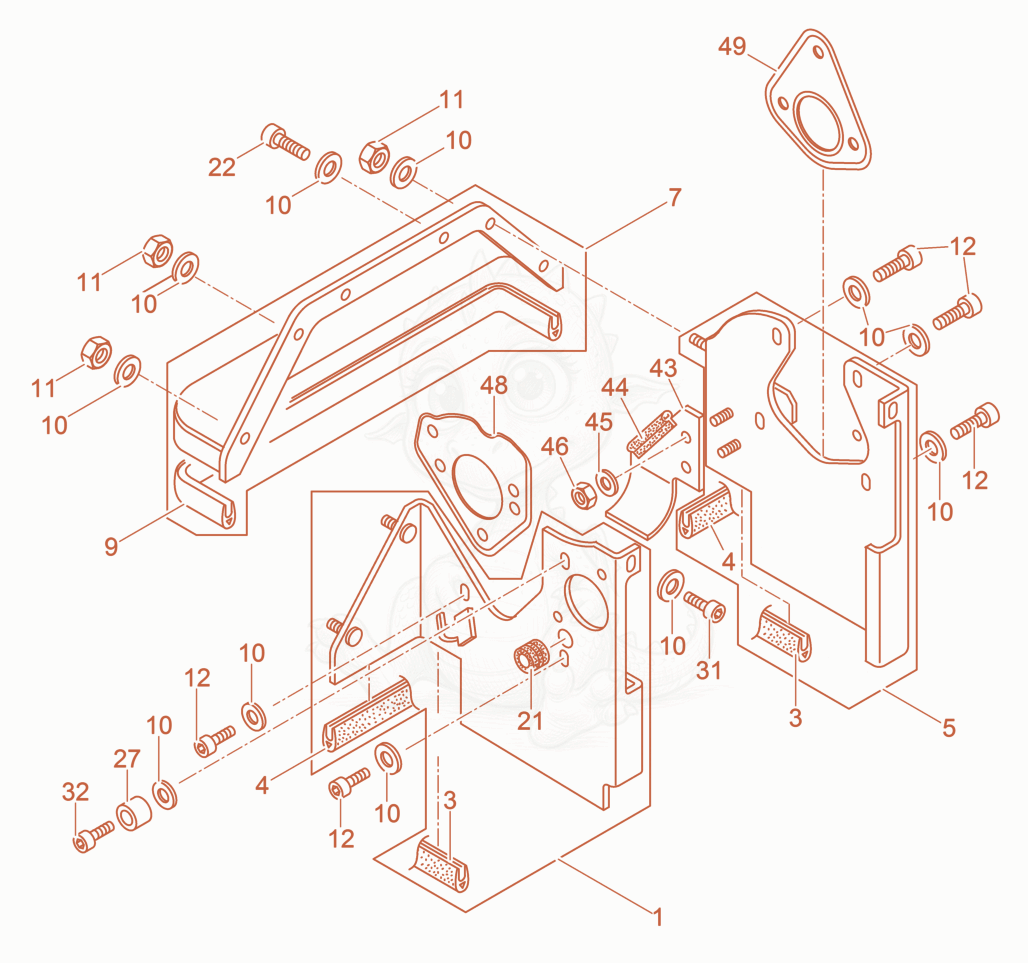

DPU4545HECHUS Air Ducting Diagram
- GUIDE-PLATE,AIR - 5000207770×1
- SEAL-PROFILE,29MM - 5000207790×2
- SEAL-PROFILE,41MM - 5000207791×2
- 55000207771Not stockedBaffle×1
- HOOD CPT. - 5000104417×1
- RING-SEALING,308MM - 5000202408×1
- WASHER-SPRING - 5000207593×15
- NUT-HEX M6 8 A3C - 5000151323×4
- SCREW-ALLEN M6X12 8 A3C - 5000151370×6
- Grommet - 5000107379×1
- SCREW M6X16,SOC.HD. - 5000201380×2
- BUSHING - 5000104423×1
- SCREW M6X16,SOC.HD. - 5000201380×2
- SCREW-ALLEN HD,M6X16A3C-8.8 - 5000129009×1
- Baffle - 5000226602×1
- SEAL-PROFILE 60MM - 5000226592×1
- DISC A6.4 A3C - 5000151540×2
- NUT VM6 - 5000129021×2
- GASKET - 5000207792×1
- Gasket - 5000226593×1
