DPU4545HECH US

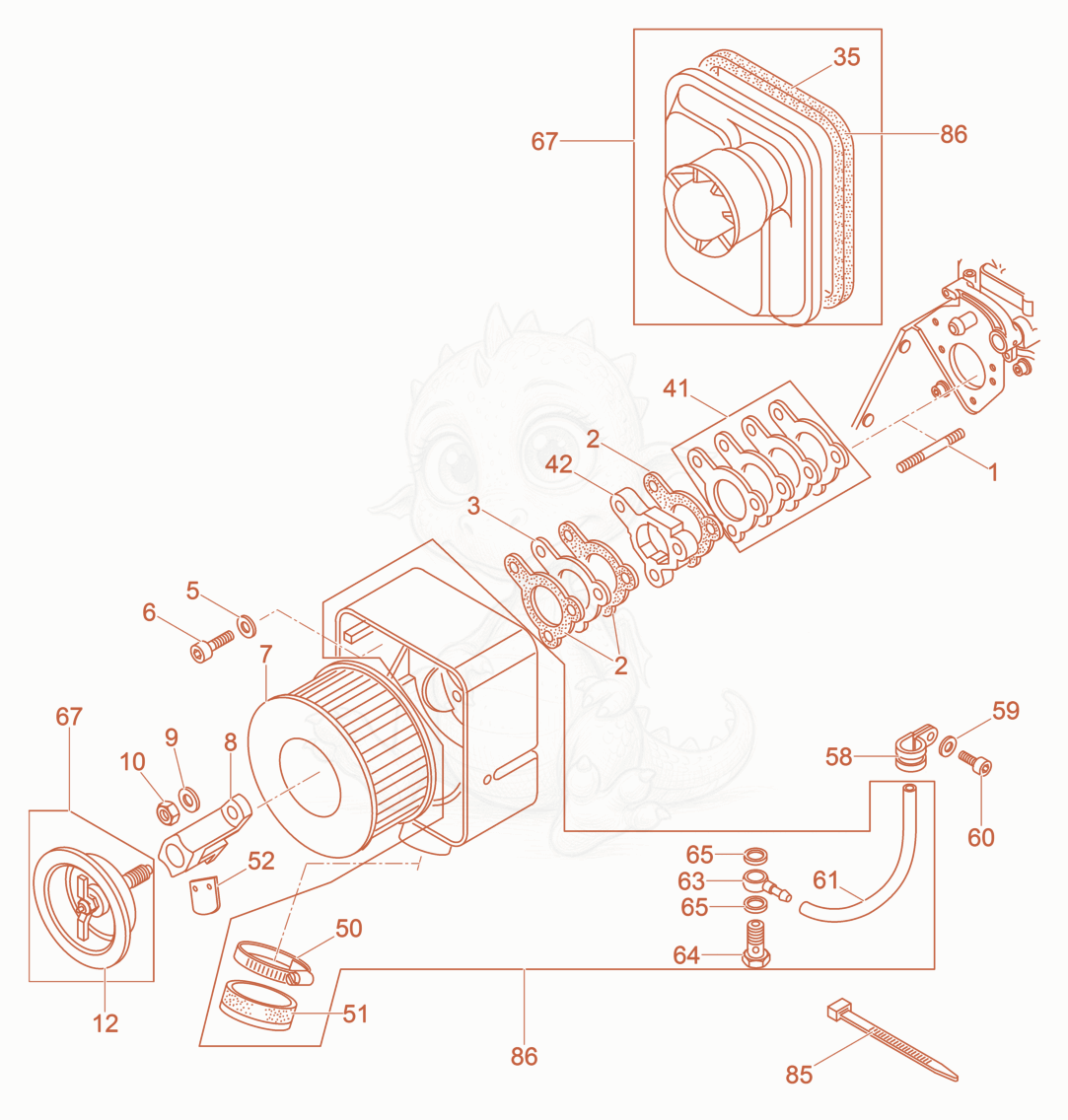

DPU4545HECHUS Air Cleaner Diagram

Exploded parts diagram of the Air Cleaner of a Wacker Neuson DPU4545HECHUS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000207815
    $11.94
    STUD M8 X 60 - 5000207815×2
  • 25000104452
    $7.02
    Seal - 5000104452×3
  • 35000104453
    $17.38
    FLANGE-INSULATING - 5000104453×1
  • 55200022048Not stocked
    Spring washer×1
  • 65000202425
    $4.21
    SCREW-ALLEN,M8 X 42 - 5000202425×1
  • 75000104455
    $26.04
    FILTER-AIR - 5000104455×1
  • 85000104456
    $44.55
    Retainer - 5000104456×1
  • 95000151553
    $7.71
    WASHER-FLAT 8.4 ST A3C - 5000151553×2
  • 105000129516
    $8.06
    NUT M8,HEX - 5000129516×2
  • 125100002773
    $111.80
    Filter Cover cpl. - 5100002773×1
  • 355000104458
    $28.66
    Seal - 5000104458×1
  • 415000104450
    $14.34
    SET-GASKET - 5000104450×1
  • 425000104451
    $38.06
    FLANGE-INTERMEDIATE - 5000104451×1
  • 505000099804
    $20.00
    Clamp - 5000099804×1
  • 515000104460
    $45.23
    CAP-PROTECTIVE - 5000104460×1
  • 525000099792
    $8.06
    PLATE-VALVE - 5000099792×1
  • 585000095050
    $11.94
    CLAMP-PIPE - 5000095050×1
  • 595000151456
    $8.06
    WASHER-SPRING 6 A3C - 5000151456×1
  • 605000202437
    $7.71
    SCREW-SOC.HD,M6 X 20,8.8 - 5000202437×1
  • 615100032127Not stocked
    Fuel hose×1
  • 635000047981
    $39.96
    FITTING-BANJO,BARBED,HOSE - 5000047981×1
  • 645000202417
    $20.00
    BOLT-BANJO A2-3 - 5000202417×1
  • 655000107342
    $8.06
    RING-SEALING - 5000107342×2
  • 675100002776
    $272.22
    Cover with cyclone - 5100002776×1
  • 855000150243
    $3.06
    STRAP - 5000150243×1
  • 865000207783
    $225.50
    HOUSING-AIR FILTER COMPL. - 5000207783×1
