DPU45Yeh US

DPU45YEHUS Injection Pump, InjectionValve Diagram

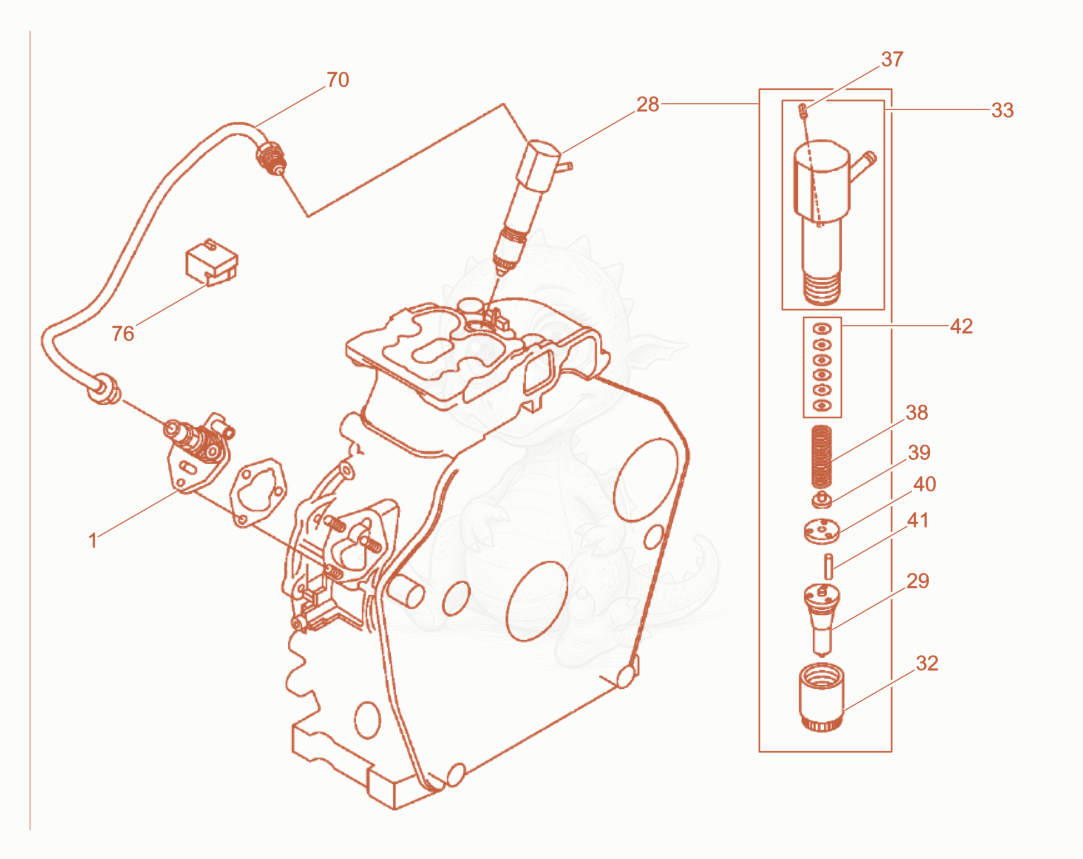

Exploded parts diagram of the Injection Pump, InjectionValve of a Wacker Neuson DPU45YEHUS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100066573Not stocked
    Injection pump cpl.×1
  • 285100061536Not stocked
    Injection valve cpl.×1
  • 295100061537
    $157.14
    Injection valve cpl. - 5100061537×1
  • 325000073728
    $31.11
    nut - 5000073728×1
  • 335100000753
    $273.89
    Injector Holder cpl. - 5100000753×1
  • 375100000763
    $1.77
    Spring pin - 5100000763×1
  • 385000073729
    $5.21
    spring - 5000073729×1
  • 395000073730
    $4.48
    HOLDER - 5000073730×1
  • 405000073731
    $28.83
    plate - 5000073731×1
  • 415000073732
    $3.54
    PIN - 5000073732×2
  • 425200020198Not stocked
    Shim Set×1
  • 705000217880Not stocked
    Injection pipe×1
  • 765000217881
    $7.30
    Support - 5000217881×1
