DPU45Yeh US

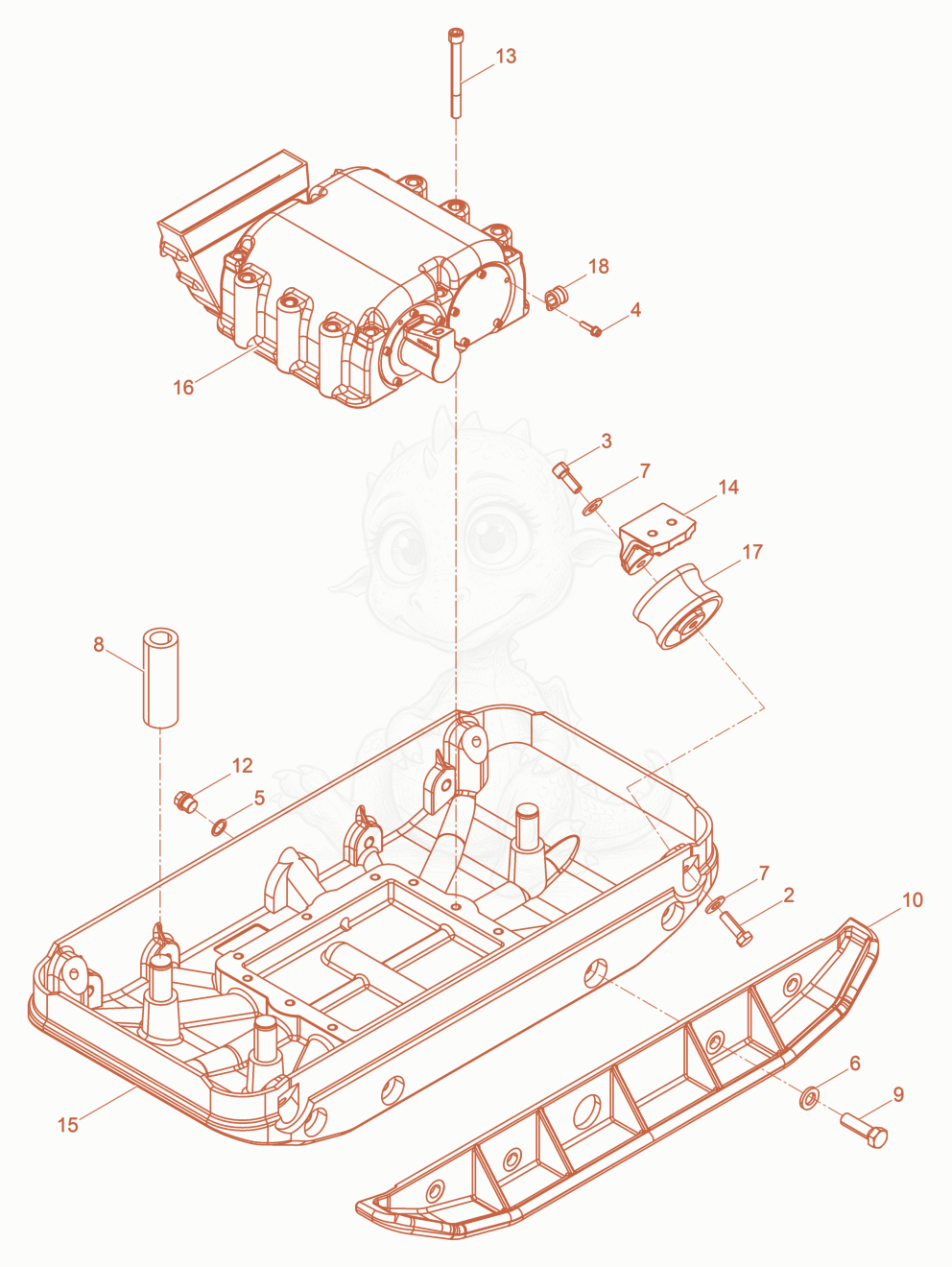

DPU45YEHUS Baseplate Diagram

Exploded parts diagram of the Baseplate of a Wacker Neuson DPU45YEHUS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000011421
    $0.40
    SCREW M12 X 40 HX.HD. - 5000011421×4
  • 35000011529
    $0.84
    SCREW M12 X 30 SOC.HD - 5000011529×4
  • 45100072823Not stocked
    Screw M 6x 25×1
  • 55000019156
    $0.48
    SEAL-RING 18 X 24 - 5000019156×1
  • 65000021988
    $3.05
    WASHER-LOCK HS16,HIGH TENSION - 5000021988×8
  • 75000031565
    $0.48
    WASHER-LOCK A12 - 5000031565×8
  • 85000034442
    $17.86
    BUSHING-IMPACT,PLASTIC - 5000034442×3
  • 95000039191
    $3.50
    SCREW M16 X 55 HX.HD. - 5000039191×8
  • 105000044442Not stocked
    Extension plate×2
  • 125000068222
    $6.06
    PLUG M18 X 1.5 ST - 5000068222×1
  • 135000094518
    $3.31
    SCREW M12 X 120 10.9 - 5000094518×12
  • 145000102105
    $145.41
    SUPPORT - 5000102105×4
  • 155000102356
    $3,805.82
    BASEPLATE - 5000102356×1
  • 165000220163
    $4,399.56
    Exciter cpl. - 5000220163×1
  • 175002004814
    $74.83
    SHOCKMOUNT 100 X 58-45SH,FRM C - 5002004814×4
  • 185000017123
    $1.60
    Pipe Clamp - 5000017123×1
