Vibration Plate DPU 6055

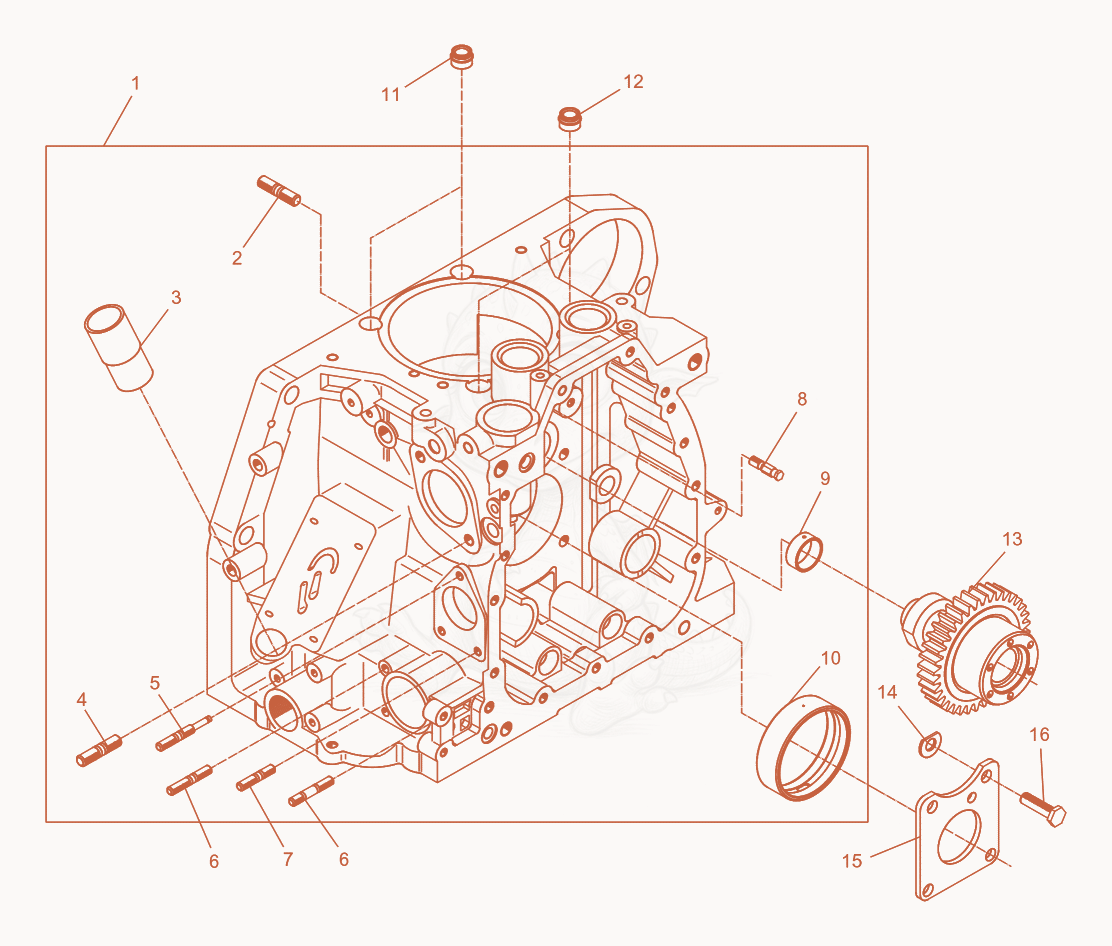

DPU6055 Crankcase-Camshaft Diagram
- Crankcase - 5000126516×1
- STUD M8 X 18 - 5000020343×8
- TUBE-OIL,FILLER - 5000099415×1
- STUD M8 X 20 - 5000010926×2
- BOLT-STUD - 5000094925×1
- STUD M6 X 22 - 5000013508×3
- STUD M6 X 16 - 5000013506×2
- JET-LUBRICATION - 5000094922×1
- 95000094923Not stockedBearing×1
- BEARING-SLIDE - 5000094924×1
- BEARING-0.5MM - 5000107228×1
- GROMMET - 5000126518×2
- Rubber Funnel - 5000097403×2
- CAM SHAFT - 5000126517×1
- WASHER 1.2MM - 5000098454×4
- WASHER 1.05MM - 5000098455×4
- WASHER-CHECK X-5100013801 - 5000098453×1
- Screw - 5000098456×4
