Vibration Plate DPU 6055

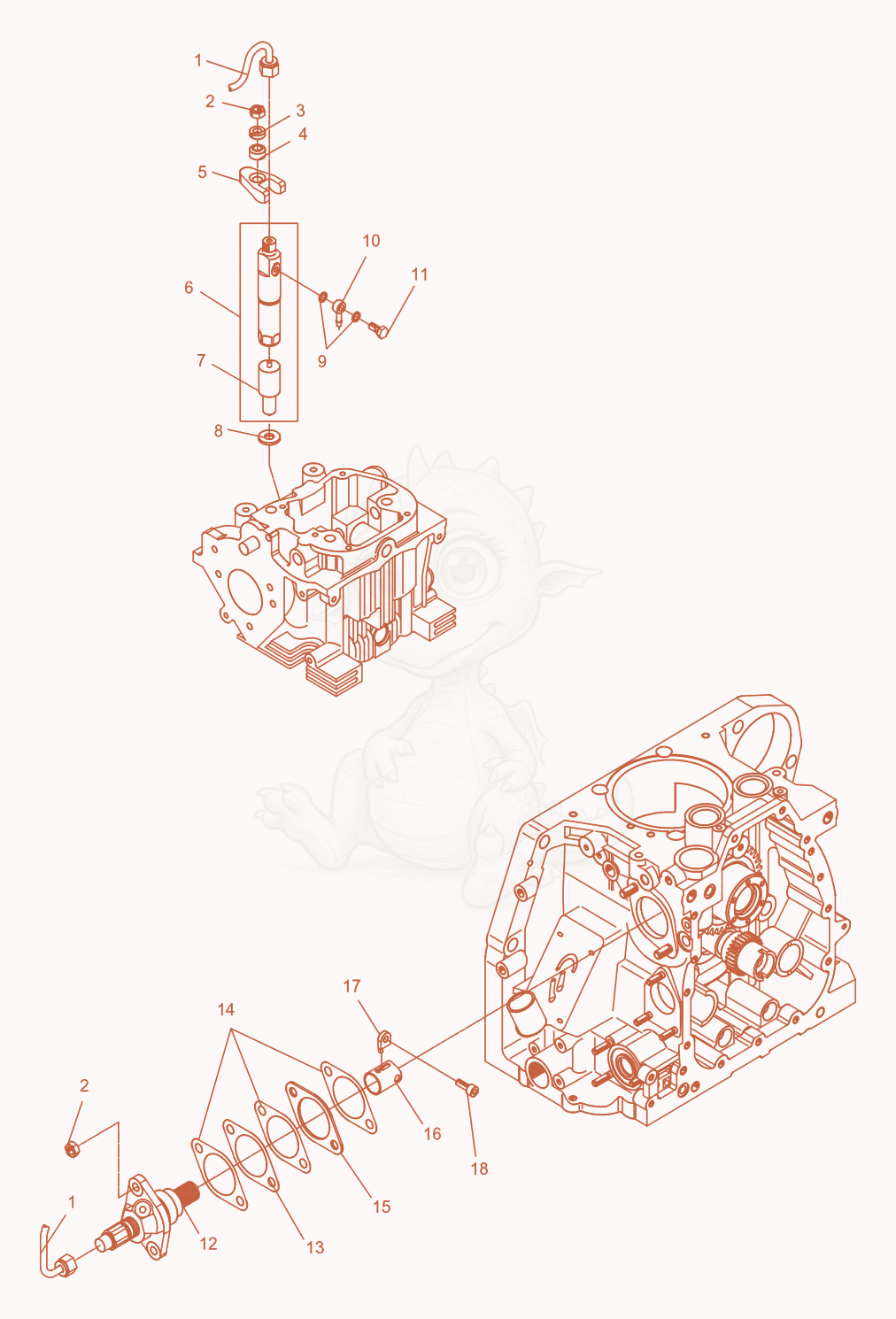

DPU6055 Injection Valve-Injection Pump Diagram
- PIPE-PRESSURE - 5000126520×1
- NUT M8 8,HEX - 5000010882×3
- WASHER-LOCK B8 - 5000012397×1
- DISC-BALL - 5000095021×1
- HOLDER - 5000095022×1
- VALVE-INJECTION ASSY - 5000126521×1
- jet - 5000126522×1
- Gasket - 5000104411×1
- SEAL-RING 6.5 X 9.5 - 5000013440×2
- FITTING - 5000095020×1
- SCREW-HOLLOW - 5000095019×1
- PUMP-INJECTION - 5000126523×1
- SHIM-0.1MM - 5000014479×1
- SHIM-0.15MM - 5000014480×1
- SHIM-0.20 - 5000014481×1
- SHIM-0.3MM - 5000014482×1
- SHIM-0.5MM - 5000014483×1
- GASKET,0.10 - 5000099419×2
- shim - 5000126524×1
- TAPPET - 5000126525×1
- guide - 5000126526×1
- SCREW M6 X 16 SOC.HD. - 5000011553×1
