DPU6555Hechzf

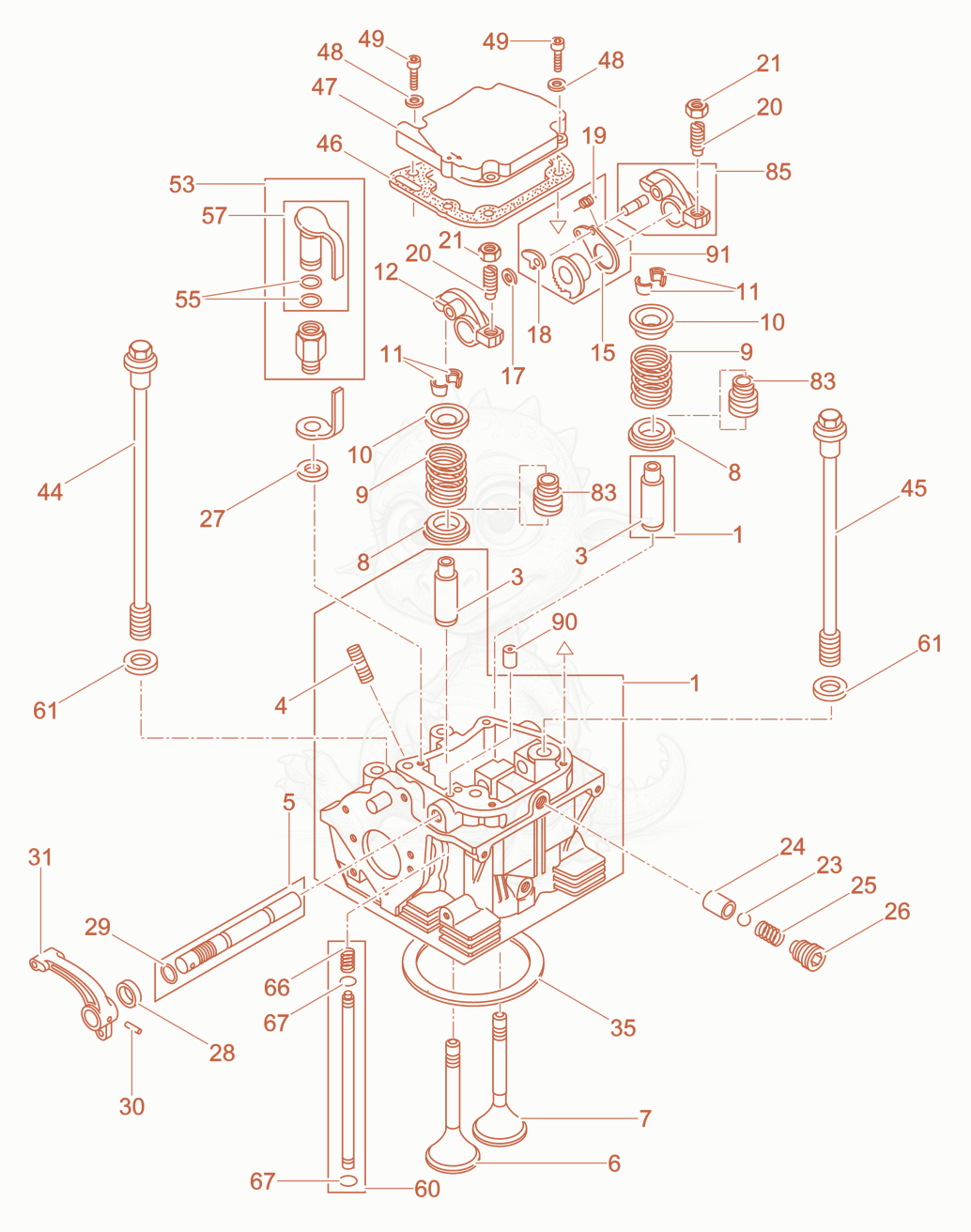

DPU6555HECHZF Cylinder head Diagram

Exploded parts diagram of the Cylinder head of a Wacker Neuson DPU6555HECHZF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000126515
    $1,668.02
    cylinder head - 5000126515×1
  • 35000094890
    $48.97
    GUIDE-VALVE STEM - 5000094890×2
  • 45000207595
    $11.94
    STUD M8X35 - 5000207595×1
  • 55000105928
    $213.68
    SHAFT-ROCKER - 5000105928×1
  • 65000105043
    $90.83
    VALVE-INLET - 5000105043×1
  • 75000105044
    $108.71
    VALVE-EXHAUST - 5000105044×1
  • 85000094902Not stocked
    Washer×2
  • 95000094901
    $19.59
    SPRING-VALVE - 5000094901×2
  • 105100051933Not stocked
    Spring holder×2
  • 115000094899
    $11.30
    SET-TAPER,CONE VALVE - 5000094899×2
  • 125000098449
    $187.61
    ROCKER ARM INTAKE - 5000098449×1
  • 155000094895
    $5.53
    HOLDER - 5000094895×1
  • 175000202427
    $8.06
    CLIP-RETAINING - 5000202427×1
  • 185000094897
    $19.85
    RATCHET-PAWL - 5000094897×1
  • 195000094894
    $5.53
    Spring - 5000094894×1
  • 205000094891
    $13.82
    SCREW-ADJUSTING - 5000094891×2
  • 215004101500
    $11.94
    NUT-LOCK 5/16X24 - 5004101500×2
  • 235000066801
    $7.02
    Ball - 5000066801×1
  • 245100032122
    $29.00
    Bush - 5100032122×1
  • 255000094887
    $5.53
    Spring - 5000094887×1
  • 265000094888
    $31.63
    Screw - 5000094888×1
  • 275000013186
    $8.06
    SEAL-RING 12 X 15.5 - 5000013186×1
  • 285000097401
    $6.00
    SEAL - 5000097401×1
  • 295000108801
    $7.02
    O-RING 8X2 - 5000108801×1
  • 305000020183
    $8.06
    SLEEVE-DOWEL,SPR.4X22 - 5000020183×1
  • 315000094909
    $11.30
    LEVER-DECOMPRESSION - 5000094909×1
  • 355000207552
    $24.90
    GASKET-CYLINDER HEAD 1,25 - 5000207552×1
  • 355000207551
    $24.90
    GASKET-CYLINDER HEAD 1,15 - 5000207551×1
  • 355000207550
    $20.00
    GASKET-CYLINDER HEAD 1,05 - 5000207550×1
  • 355000207549
    $20.00
    GASKET-CYLINDER HEAD 0,95 - 5000207549×1
  • 355000207548
    $49.79
    GASKET-CYLINDER HEAD 0,85 - 5000207548×1
  • 355000207547
    $36.45
    GASKET-CYLINDER HEAD 0,75 - 5000207547×1
  • 355000207546
    $36.45
    GASKET-CYLINDER HEAD 0,65 - 5000207546×1
  • 355000207545
    $16.49
    GASKET-CYLINDER HEAD 0,55 - 5000207545×1
  • 355000099413
    $24.90
    GASKET 0.5MM - 5000099413×1
  • 355000094920
    $30.50
    GASKET 1.3MM - 5000094920×1
  • 355000094919
    $28.75
    GASKET 1.2MM - 5000094919×1
  • 355000094918
    $28.75
    GASKET 1.1MM - 5000094918×1
  • 355000094917
    $24.90
    GASKET 1.0MM - 5000094917×1
  • 355000094916
    $39.96
    GASKET 0.9MM - 5000094916×1
  • 355000094915
    $37.88
    GASKET 0.8MM - 5000094915×1
  • 355000094914
    $39.96
    GASKET 0.7MM - 5000094914×1
  • 355000094913
    $22.61
    GASKET 0.6MM - 5000094913×1
  • 445100030359
    $97.56
    Hexagonal head cap screw - 5100030359×2
  • 455000094882
    $59.27
    SCREW-SOCKET HEAD - 5000094882×2
  • 465100051932Not stocked
    Gasket×1
  • 475000098444
    $56.99
    COVER-VALVE - 5000098444×1
  • 485000151290
    $5.53
    WASHER-SPRING, A6 - 5000151290×4
  • 495000129010
    $8.06
    SCREW-ALLEN HD,M6X25-8.8 A3C - 5000129010×4
  • 535000102468
    $92.22
    PRIMER-FUEL - 5000102468×1
  • 555000107390
    $7.02
    O-RING 11.3 X 2.4 - 5000107390×2
  • 575000102469
    $24.90
    PLUG - 5000102469×1
  • 605000094906
    $36.43
    TUBE-GREASE - 5000094906×1
  • 615000104388Not stocked
    Washer×4
  • 665000094903
    $5.53
    Spring - 5000094903×1
  • 675000094905
    $5.53
    O-Ring - 5000094905×2
  • 835100010410
    $6.37
    Seal - 5100010410×2
  • 855000098448
    $206.21
    ROCKER ARM EXHAUST - 5000098448×1
  • 905000207538
    $16.49
    jet - 5000207538×1
  • 915000126917
    $193.17
    GEAR SEGMENT - 5000126917×1
