DPU6555Hechzf

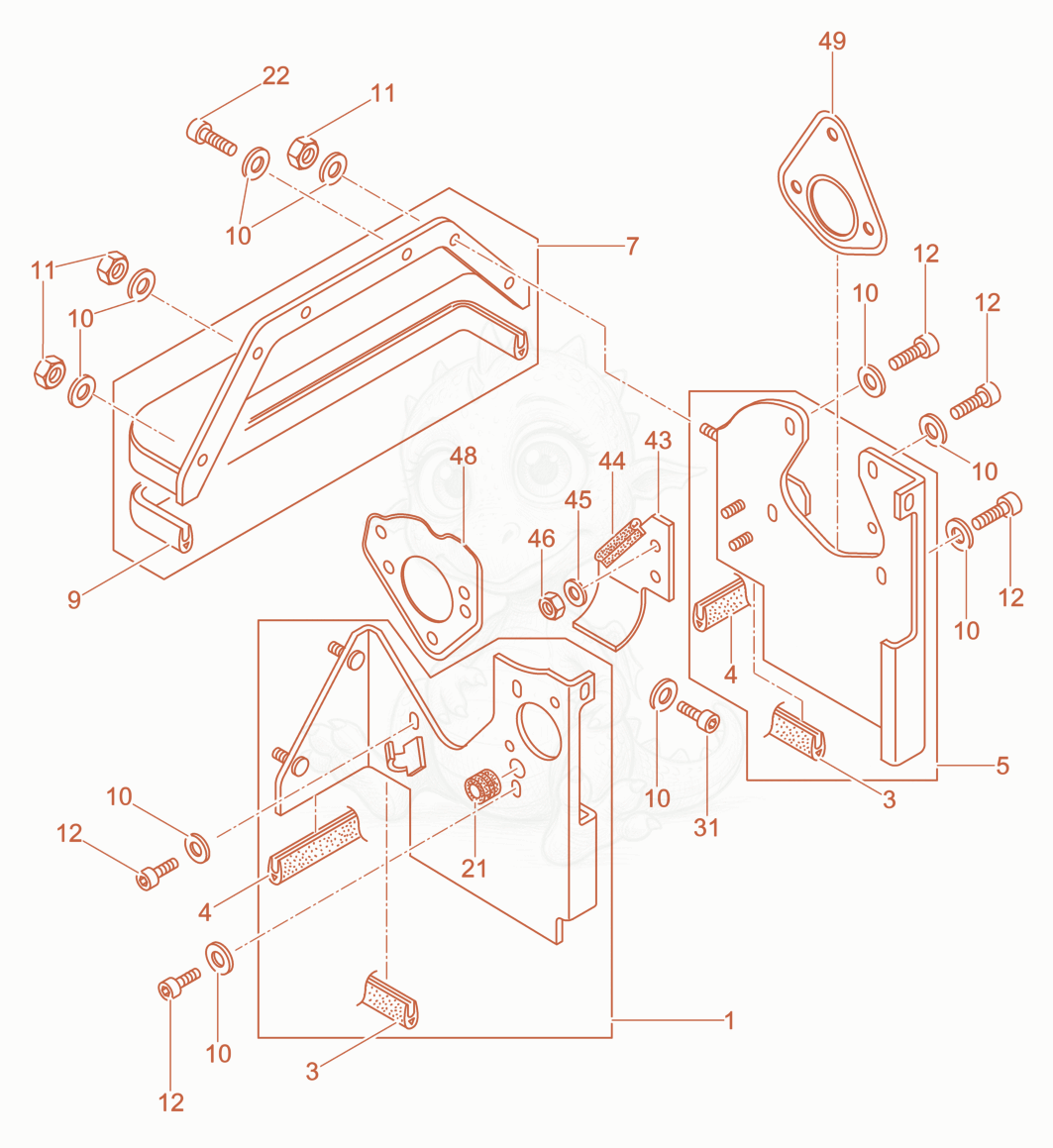

DPU6555HECHZF Air Ducting Diagram
- COVER-LEFT - 5000098460×1
- GASKET - 5000105050×2
- GASKET - 5000105051×2
- DUCT-AIR,COOLING - 5000207579×1
- COVER - 5000095035×1
- SEAL-MOLDED PROFILE - 5000095036×1
- WASHER-SPRING - 5000207593×15
- NUT-HEX M6 8 A3C - 5000151323×4
- SCREW-M6X16-8.8,A3C,KL360G - 5000202304×7
- Grommet - 5000107379×1
- SCREW M6X16,SOC.HD. - 5000201380×2
- SCREW M6X16,SOC.HD. - 5000201380×2
- DUCT-AIR,COOLING - 5000207581×1
- SEAL - 5000207540×1
- DISC A6.4 A3C - 5000151540×2
- NUT VM6 - 5000129021×2
- GASKET - 5000207554×1
- GASKET - 5000207553×1
