DPU6555Hec Reversible Vibratory Plate

DPU6555HECUS Piston-Connecting Rod-Cylinder Diagram

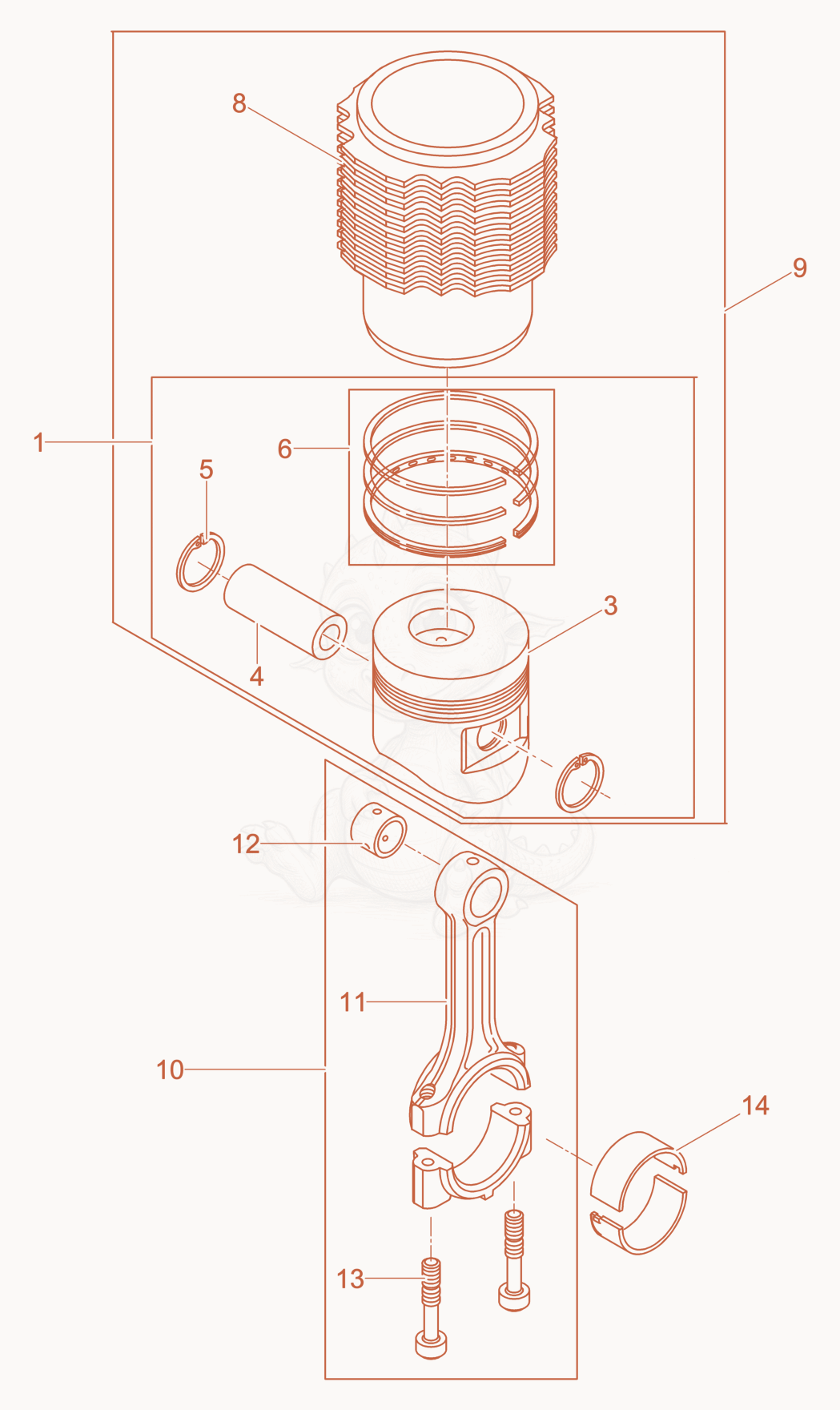

Exploded parts diagram of the Piston-Connecting Rod-Cylinder of a Wacker Neuson DPU6555HECUS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000217087
    $438.82
    Piston - 5000217087×1
  • 45000094862
    $121.80
    PIN-PISTON MOUNT - 5000094862×1
  • 55002001695
    $8.06
    RET.RING-INT 30MMX1.2MM, - 5002001695×2
  • 65000217086
    $234.25
    Piston Ring Set - 5000217086×1
  • 95000217089
    $1,765.59
    Cylinder with piston - 5000217089×1
  • 105000094863
    $834.90
    CONNECTING ROD COMPLETE - 5000094863×1
  • 125000094864
    $92.59
    BUSHING-CONNECTING ROD - 5000094864×1
  • 135000105927
    $36.45
    SCREW-CONNECTING ROD - 5000105927×2
  • 145000094866
    $86.64
    BEARING-CONNECTING ROD - 5000094866×1
  • 155000107222
    $178.86
    ROD-CONNECTION,BEARING 0.5MM - 5000107222×1
