DPU6555Hec Reversible Vibratory Plate

DPU6555HECUS Upper mass Diagram

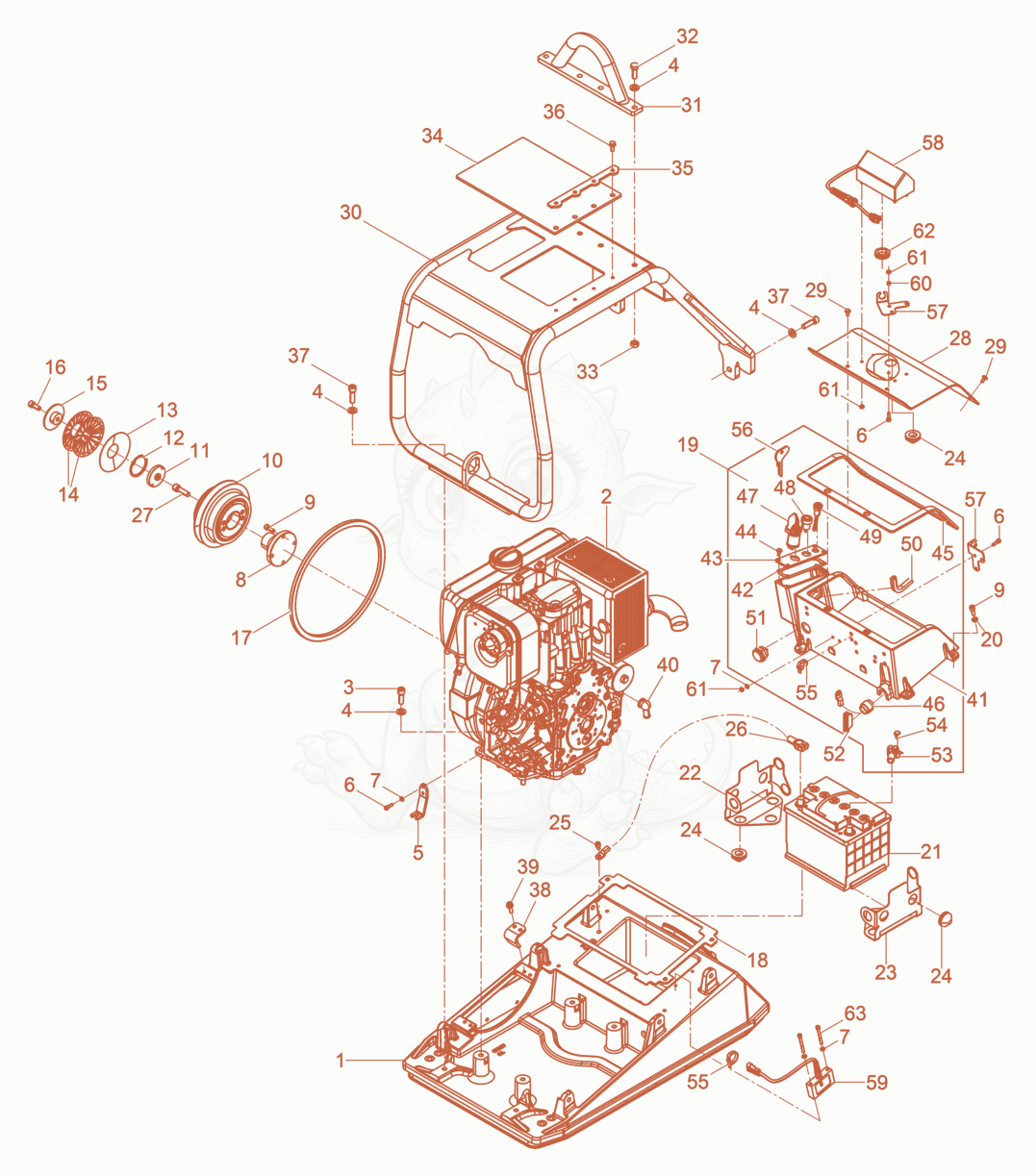

Exploded parts diagram of the Upper mass of a Wacker Neuson DPU6555HECUS, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15000220278
$3,161.68
UPPER MASS CPL - 5000220278×1
25100004235
$17,524.24
Diesel Motor 1D81S 319 5100004235×1
35000011528
$0.92
SCREW M12 X 35 SOC.HD. - 5000011528×4
45000021465
$2.70
WASHER-LOCK HS12,HIGH TENSION - 5000021465×12
55000103893
$14.90
BRACKET-MOUNTING - 5000103893×1
65000011551
$0.20
SCREW M6 X 20 SOC.HD. - 5000011551×6
75000010624
$0.03
WASHER B6.4 FLAT - 5000010624×6
85000069900
$137.31
Flange - 5000069900×1
95000012629
$0.44
SCREW M8 X 22 SOC.HD. - 5000012629×8
105000102208Not stocked
Coupling cpl.×1
115000058546
$68.09
DISC-CENTRIFUGAL CLUTCH - 5000058546×1
125000021147
$1.06
RET.RING-INT 60MMX2MM, - 5000021147×1
135000048273
$10.45
GASKET-RUBBER - 5000048273×1
145000048374
$16.62
SPRING-BELLEVILLE TYPE - 5000048374×2
155000058547
$127.35
PLATE-CLUTCH FACE - 5000058547×1
165000011534
$0.94
SCREW M10 X 30 SOC.HD. - 5000011534×1
175000048539Not stocked
Seal×1
185000220183
$23.73
Gasket - 5000220183×1
195000220346Not stocked
Battery protection cpl.×1
205000010742Not stocked
Washer×4
215000043134Not stocked
Battery×1
225000124969
$142.29
X-5100011286 BRACKET-BATTERY SUPPORT - 5000124969×1
235000124970
$142.29
X-5100011286 BRACKET-BATTERY SUPPORT - 5000124970×1
245000124255
$5.64
SHOCK ABSORBER - 5000124255×19
255000013574
$0.44
SCREW M8X12 SOC.HD - 5000013574×1
265000220316
$81.13
Mass line - 5000220316×1
275000011527
$1.10
SCREW M12 X 40 SOC.HD. - 5000011527×1
285100003765
$670.22
Battery cover - 5100003765×1
295000210194
$0.60
SCREW-CORRUGATED HD. - 5000210194×4
305000220379
$1,187.59
FRAME-PROTECTIVE - 5000220379×1
315000099055
$118.33
BRACKET-LIFTING EYE - 5000099055×1
325000011422
$0.84
SCREW M12 X 35 HX.HD. - 5000011422×4
335000010884
$0.26
NUT M12 8,HEX - 5000010884×4
345000099535
$126.70
Plate - 5000099535×1
355000099047
$77.39
MOUNT-STRIP - 5000099047×1
365000105944
$1.01
SCREW M8 X 20-ST, D7500 DE - 5000105944×4
375000019244Not stocked
Cheese head screw×4
385000220334
$14.90
Angle - 5000220334×2
395000129420
$1.55
SCREW-CAP,SOCKET HEAD - 5000129420×4
405000058696
$14.34
COVER-STARTER PROTECTOR - 5000058696×1
415000220162
$596.77
BATTERY PROTECTION - 5000220162×1
425000216678
$4.42
Gasket - 5000216678×1
435000216679
$35.63
Plate - 5000216679×1
445000210194
$0.60
SCREW-CORRUGATED HD. - 5000210194×4
455000220173
$15.70
Gasket - 5000220173×1
465000220432
$4.95
GLAND - 5000220432×1
475000220116
$96.17
ignition starter switch - 5000220116×1
485000044682
$12.49
SWITCH-PUSH BUTTON - 5000044682×1
495000129797
$29.87
LIGHT-IGNITION PILOT LED - 5000129797×1
505000220395
$98.00
Edge protection - 5000220395×1
515000220234
$39.37
SIGNAL-ACCOUSTIC - 5000220234×1
525000220314
$350.42
CABLE-HARNESS - 5000220314×1
535000220317
$239.69
STRAP-POSITIVE POLE - 5000220317×1
545000012360
$0.12
SCREW M8 X 12 HX.HD. - 5000012360×1
555000047388
$0.18
CABLE-TIE 7.6X356MM,NO MNT,BLK - 5000047388×5
565000220118
$13.13
key - 5000220118×1
575100003854
$20.09
Cable Clamp - 5100003854×2
585100003840
$1,515.02
Display cpl. - 5100003840×1
595100003860
$394.78
Sensor cpl. - 5100003860×1
605000220517
$16.85
Bushing - 5000220517×4
615000010880
$0.03
NUT M6 8,HEX - 5000010880×8
625100003857
$11.30
Cable bushing 35x2,5 - 5100003857×1
635000037071
$0.44
SCREW M6 X 60 SOC.HD. - 5000037071×2
