Vibratory Plate DPU 6555 Hec US

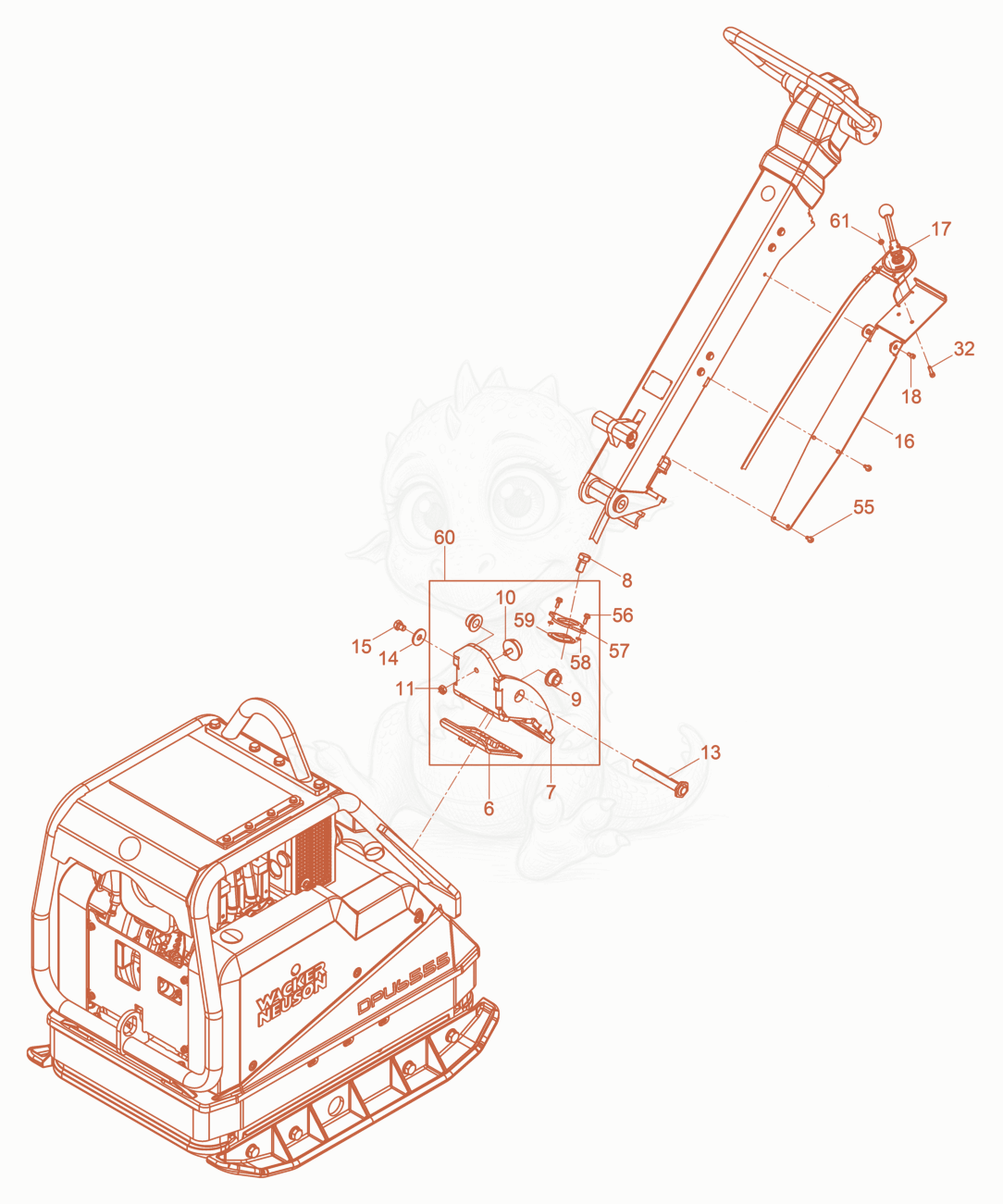

DPU6555HECUS Vibratory Plate cpl. Diagram
- Profiled joint - 5100010503×1
- Support - 5100003725×1
- SCREW M16 X 30 HX.HD. - 5000011523×4
- BUSHING 2 - 5100051256×2
- Shockmount 50 x 18 M10 x 20 - 5100005558×1
- NUT M10 8,HEX - 5000010883×1
- Axle - 5100009632×1
- WASHER A13 FLAT - 5000010376×1
- SCREW M12 X 16 HX.HD. - 5000014316×1
- Cover Plate cpl. - 5100009950×1
- Gaskabel DPU 4545-6555 - 5100036296×1
- SCREW M6 X 16 SOC.HD. - 5000011553×2
- SCREW M6 X 25 SOC.HD. - 5000011550×2
- screw - 5000204408×4
- screw - 5000204408×2
- Plate - 5100010505×1
- WASHER 6.4 - 5000010744×2
- Gasket - 5100010504×1
- Support cpl. - 5100010938×1
- NUT M6 8,HEX - 5000010880×2
