Vibratory Plate DPU 6555 Hec US

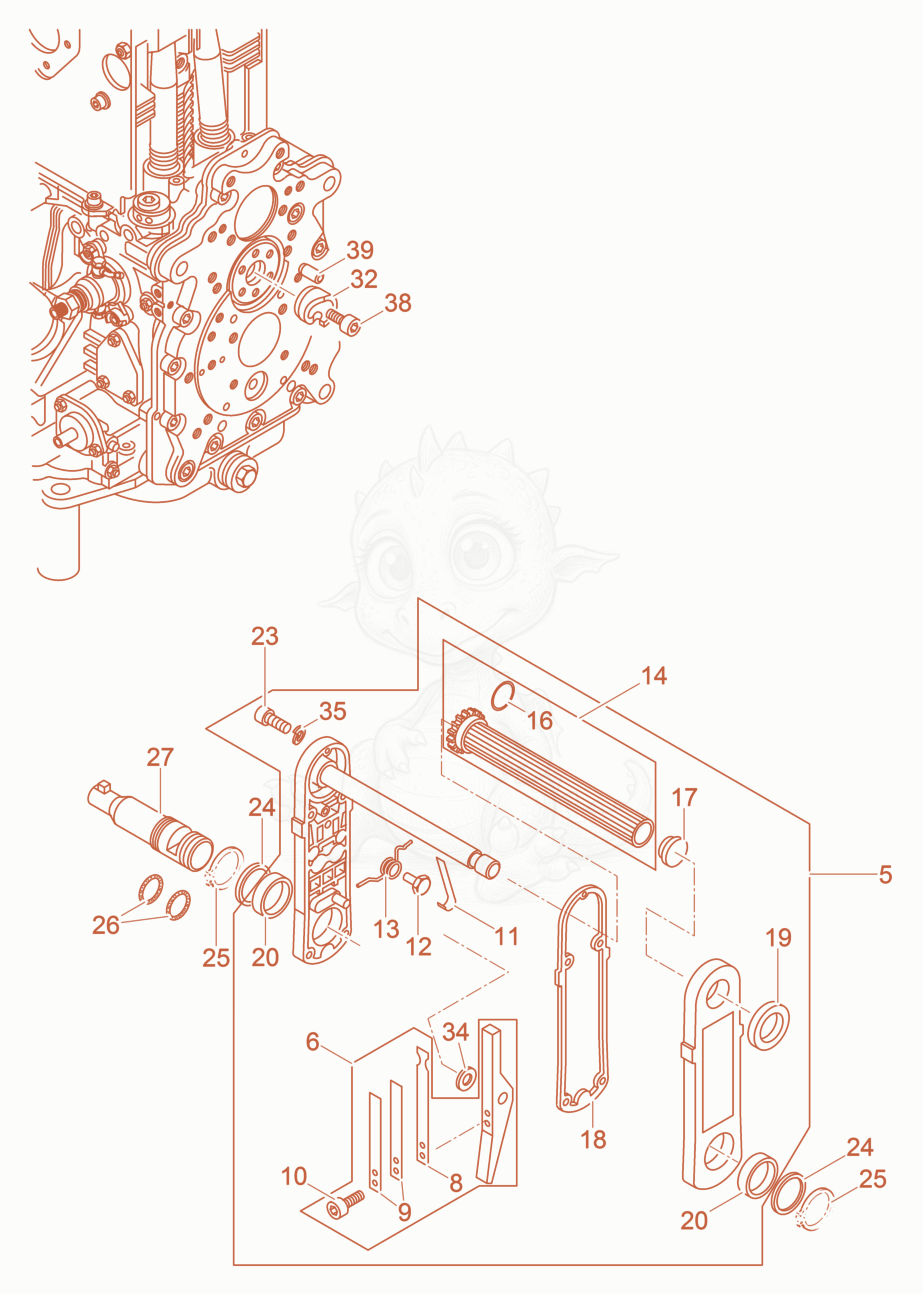

DPU6555HECUS Starting crank Diagram
- CRANK-STARTING - 5000210280×1
- LEVER-STARTING CRANK - 5000064064×1
- SPRING - 5000066157×1
- SPRING - 5000066158×2
- SCREW M5 X 8 SOC.HD. - 5000049190×2
- SPRING-LEAFTYPE - 5000069547×1
- Screw - 5000069548×1
- SPRING - 5000069549×1
- GRIP-HANDLE - 5000069545×1
- O-Ring - 5000105765×1
- Plug - 5000064062×1
- GASKET-STARTING CRANK - 5000064068×1
- SEAL-SHAFT 28 X 35 X 4 - 5000064063×1
- BUSHING - 5000066156×2
- SCREW-ALLEN M6X25 - 5000203133×5
- SHIM 30 X 28 X 0.15 - 5000069546×1
- CLIP-RETAINING A30 X 1.5 - 5000202441×2
- O-RING 26 X 1.5 - 5000064067×2
- SHAFT-STARTING - 5000107494×1
- Starting Jaw - 5000097419×1
- Shim Ring - 5000064065×1
- WASHER-SPRING 6 A3C - 5000151456×5
- SCREW M8 X 12,ALLEN - 5000201372×1
- PIN-CYLINDER - 5000202453×1
