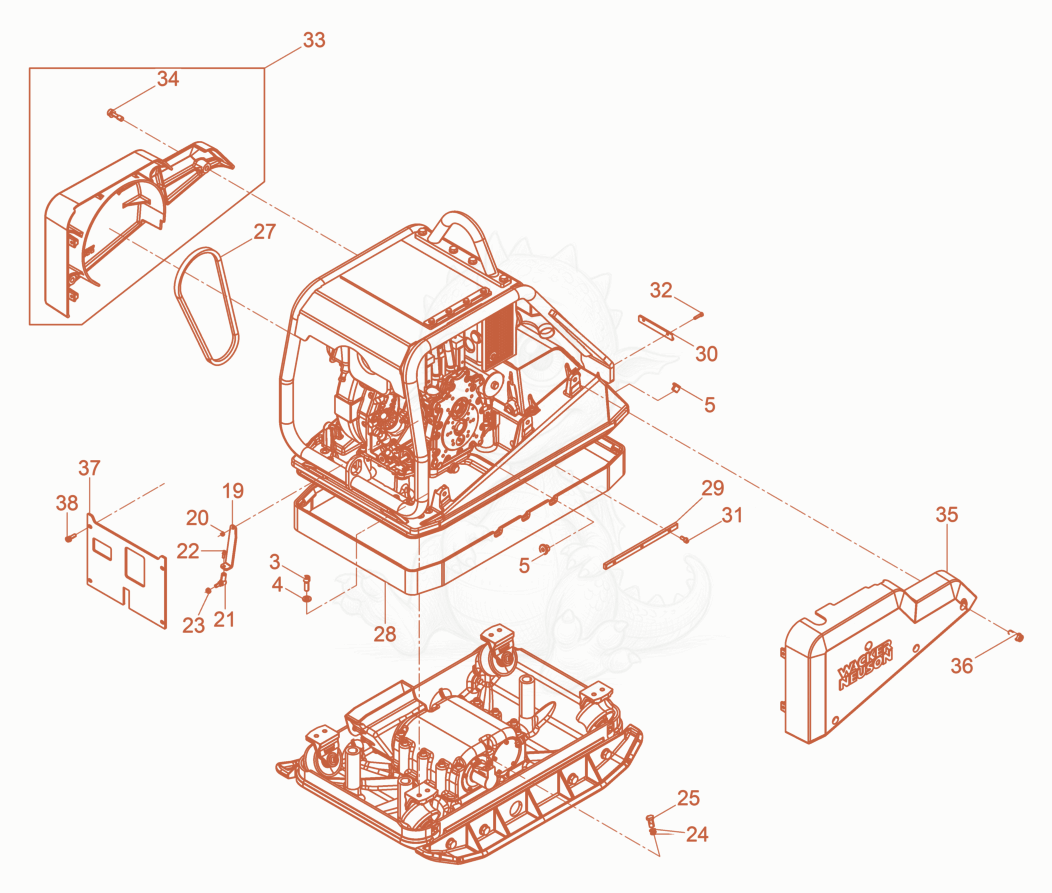

DPU6555HEH Vibration Plate Diagram
- SCREW M12 X 35 SOC.HD. - 5000011528×8
- WASHER-LOCK HS12,HIGH TENSION - 5000021465×8
- BUSHING-GUIDE - 5000103880×2
- Lever - 5000103971×1
- NUT-LOCK VM6 HEX - 5000021679×1
- BALL-JOINT AS13 - 5000038403×1
- SCREW M6 X 16 SOC.HD. - 5000011553×1
- NUT M8 8,HEX - 5000010882×1
- SEAL-RING 14 X 18 - 5000012624×2
- SCREW-HOLLOW 10-3 - 5000043201×1
- BELT-V 17 X 1080 - 5000094072×1
- Apron - 5100009633×1
- MOUNTING STRIP - 5000097110×2
- Bar - 5100009635×1
- SCREW M8X18 SOC.HD. - 5000103962×6
- SCREW M6 X 25 SOC.HD. - 5000011550×2
- Belt guard - 5100002778×1
- SCREW-THIN SHANK - 5000220202×3
- HOODPROTECTIVE CPL. - 5000220365×1
- SCREW-SAFETY,M12 X 35 - 5000220325×3
- Shield - 5000220190×1
- SCREW-CAP,SOCKET HEAD - 5000129420×4
