DPU6555Heh

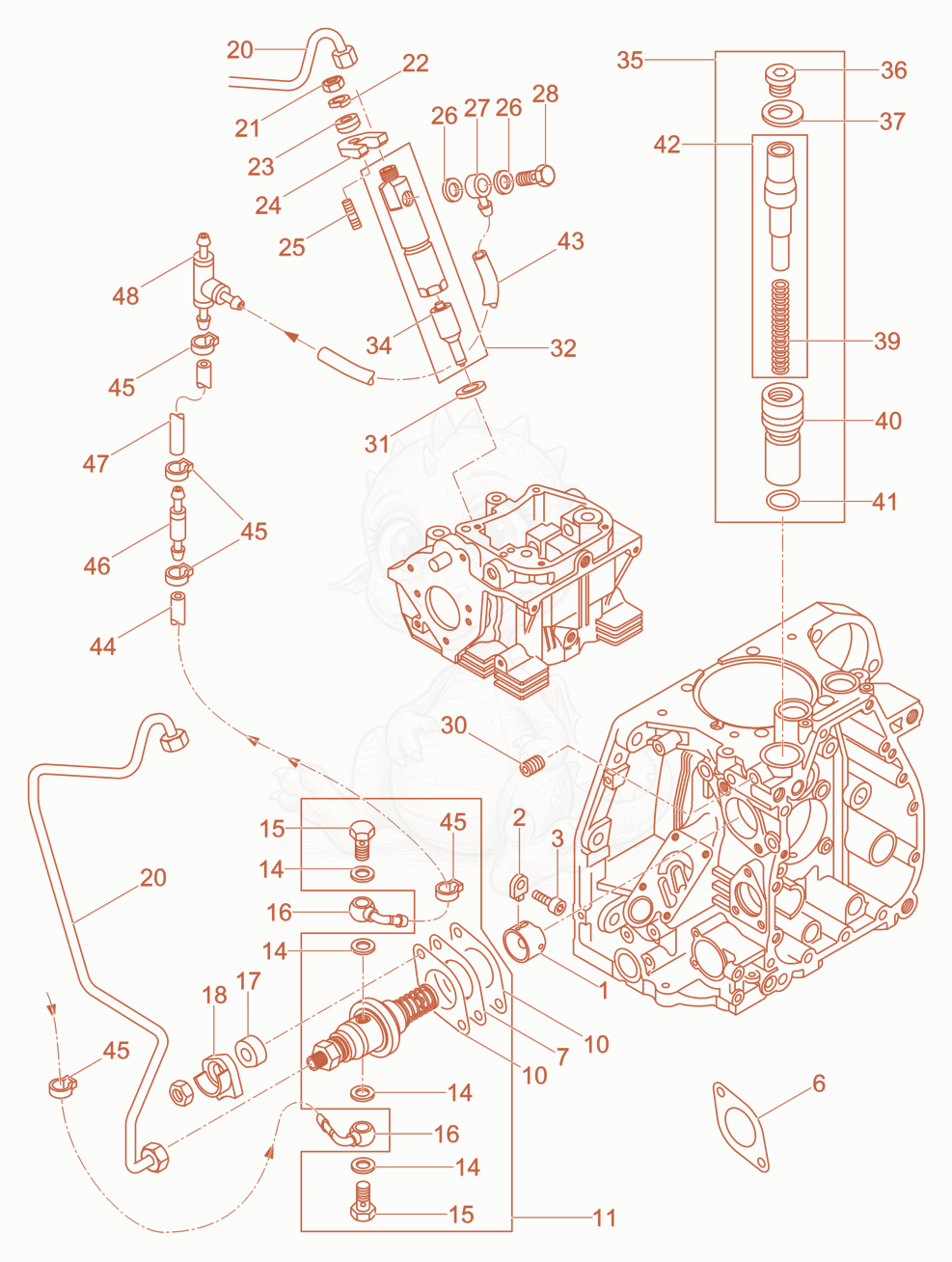

DPU6555HEH Extra Fuel Device, SpecialEquipment Diagram
- Tappet - 5100051905×1
- guide - 5000126526×1
- SCREW M6X16,SOC.HD. - 5000207610×1
- SHIM-0.3MM - 5000014482×1
- shim 0,6/42,2 - 5000207532×1
- shim 0,9/42,2 - 5000207533×1
- shim 1,2/42,2 - 5000207534×1
- GASKET,0.10 - 5000099419×1
- GASKET,0.20 - 5000207543×1
- GASKET,0.30 - 5000207544×1
- 115100051945Not stockedInjection Pump×1
- SEAL - 5000215374×4
- BOLT-BANJO - 5000210452×2
- NIPPLE,CREW ON TYPE - 5000207809×1
- spacer - 5000207555×2
- HOOK-CLAW,TENSION - 5000207592×2
- PIPE-FUEL,PRESSURE - 5000207571×1
- NUT M8 8 A3C - 5000151379×1
- WASHER-SPRING - 5000151218×1
- DISC-BALL - 5000095021×1
- HOLDER - 5000095022×1
- STUD M8X35 - 5000207595×1
- WASHER - 5000128957×2
- FITTING - 5000095020×1
- SCREW-HOLLOW - 5000095019×1
- ROD-THRD M8X16-33H - 5000020348×1
- Seal ring - 5000217099×1
- Injection Valve - 5100013806×1
- Jet - 5100013807×1
- 355000095007Not stockedHousing×1
- PLUG-SCREW - 5000207601×1
- Washer - 5000095006×1
- spring - 5000207556×1
- housing - 5000207609×1
- O-RING 22X1.6 - 5000095008×1
- PRIMER-FUEL - 5000095009×1
- FUEL HOSE - 5000209727×1
- 445100018092Not stockedFuel hose×1
- CLAMP-HOSE - 5000207586×4
- FITTING-STRAIGHT,BARBER,HOSE - 5000047977×1
- FUEL LINE 4.5 X 170 - 5000217101×1
- 485000099417Not stockedTee-fitting×1
