DPU7060Fet

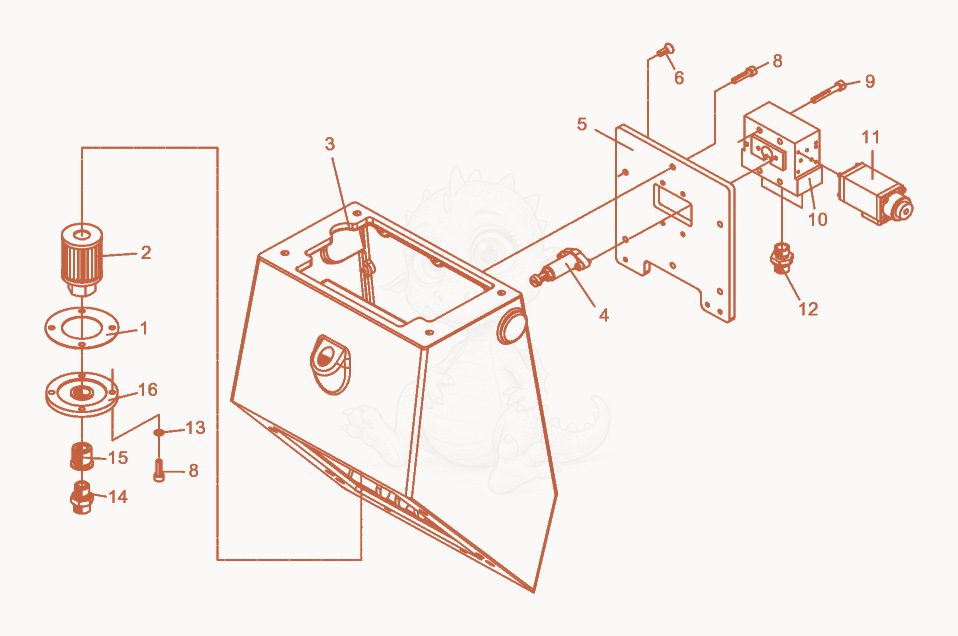

DPU7060FET Console cpl. Diagram

Exploded parts diagram of the Console cpl. of a Wacker Neuson DPU7060FET, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000047015
    $4.86
    SPACER - 5000047015×1
  • 25000045451
    $112.98
    FILTER - 5000045451×1
  • 35000206427
    $1,594.53
    Console - 5000206427×1
  • 45000049515
    $400.53
    VALVE-PRESSURE RELIEF - 5000049515×1
  • 55000094139
    $150.15
    CAP-FUEL - 5000094139×1
  • 65000034279
    $0.13
    SCREW-COUNTERSINK - 5000034279×2
  • 85000011551
    $0.20
    SCREW M6 X 20 SOC.HD. - 5000011551×8
  • 95000011547
    $0.56
    SCREW M6 X 40 SOC.HD. - 5000011547×4
  • 105000094730
    $521.95
    BLOCK-DISTRIBUTION - 5000094730×1
  • 115000094511
    $920.70
    VALVE-MAGNETIC - 5000094511×2
  • 125000046461
    $6.50
    FITTING-PIPE L10R - 5000046461×3
  • 135000021670
    $4.91
    SEAL-RING 6.7 X 10 X 1 - 5000021670×4
  • 145000048681
    $4.82
    FITTING-PIPE L12R1/4 - 5000048681×1
  • 155000045433
    $44.09
    ADAPTER-INTERMEDIATE PIECE - 5000045433×1
  • 165000044737
    $184.82
    FLANGE-FILTER MOUNTING - 5000044737×1
