DPU7060Fet

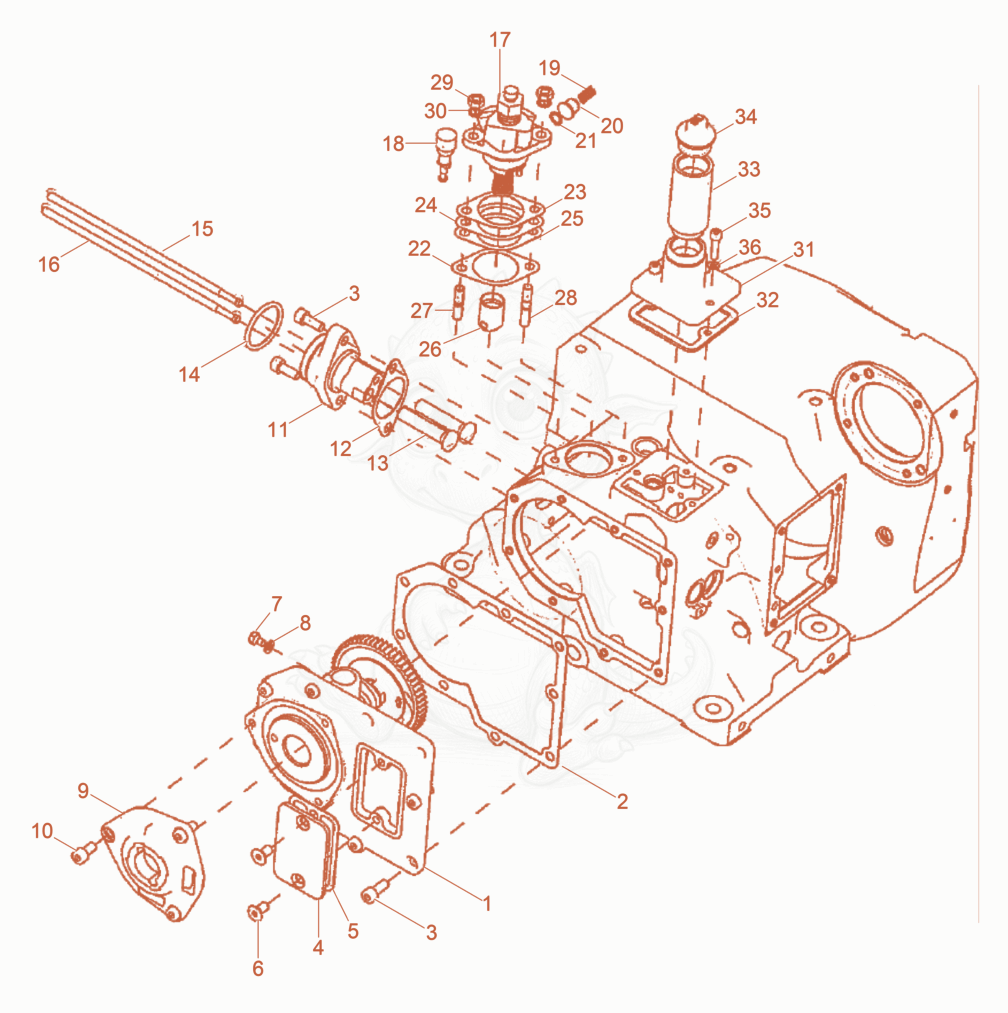

DPU7060FET Camshaft Diagram

Exploded parts diagram of the Camshaft of a Wacker Neuson DPU7060FET, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100006288Not stocked
    Camshaft cpl.×1
  • 25000099477
    $20.04
    GASKET - 5000099477×1
  • 35000204716
    $2.26
    SCREW M8X20,SOCKET HD - 5000204716×9
  • 45000099476Not stocked
    Cover×1
  • 55000099475
    $7.48
    GASKET - 5000099475×1
  • 65000204762
    $1.94
    SCREW M8X16,COUNTERSUNK - 5000204762×2
  • 75000034325
    $11.35
    Screw - 5000034325×1
  • 85000204692
    $5.96
    WASHER-SPRING A6 - 5000204692×1
  • 95100006289Not stocked
    Flange×1
  • 105000204715
    $9.89
    SCREW M8X16,SOCKET HD - 5000204715×3
  • 115000099479Not stocked
    Pushrod guide×1
  • 125000099478
    $10.30
    GASKET - 5000099478×1
  • 135000037278
    $78.34
    Tappet - 5000037278×2
  • 145000037282
    $26.25
    O-RING 32 X 4-70 Sh - 5000037282×1
  • 155000204612
    $117.50
    ROD-PUSH,INLET - 5000204612×1
  • 165000204613
    $117.50
    ROD-PUSH,EXHAUST - 5000204613×1
  • 175000204493
    $1,189.82
    PUMP INJECTION 1A65/S2008 - 5000204493×1
  • 185000204637
    $224.36
    pump element - 5000204637×1
  • 195000204639
    $56.76
    SPRING-PRESSURE - 5000204639×1
  • 205000204638
    $786.69
    VALVE-PRESSURE - 5000204638×1
  • 215000204636
    $10.95
    seal - 5000204636×1
  • 225000099500
    $1.90
    GASKET - 5000099500×1
  • 235100006290Not stocked
    Pad×1
  • 245000099501
    $7.23
    SHIM 0.2MM - 5000099501×1
  • 255000099502
    $2.90
    SHIM 0.4MM - 5000099502×1
  • 265000039965
    $169.92
    ROLLER-TAPPET - 5000039965×1
  • 275000204704
    $2.50
    BOLT M8X20,THREADED STUD - 5000204704×1
  • 285000204705
    $3.88
    BOLT M8X30,THREADED STUD - 5000204705×1
  • 295000204730
    $5.84
    NUT M8,HEX - 5000204730×2
  • 305000204693
    $5.80
    WASHER-SPRING A8 - 5000204693×2
  • 315000204619
    $85.04
    OIL FILLER - 5000204619×1
  • 325000204664
    $14.91
    seal - 5000204664×1
  • 335000048155
    $88.32
    INSERT-OIL FILLER BASE - 5000048155×1
  • 345000034327
    $16.68
    PLUG M30,PLASTIC W/WASHER - 5000034327×1
  • 355000204714
    $1.94
    SCREW M6X25,SOCKET HD - 5000204714×3
  • 365000204696
    $5.96
    WASHER-SPRING A6 - 5000204696×3
